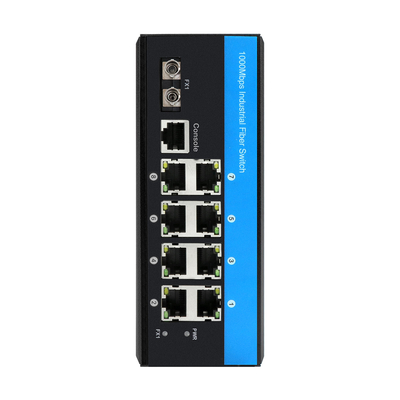

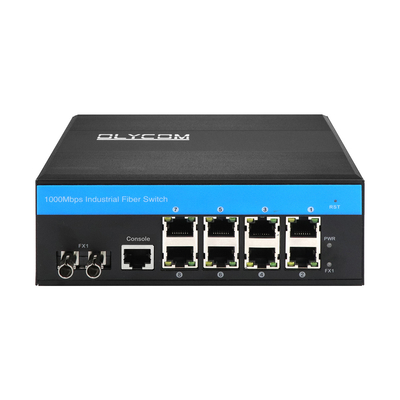

8-Port ERPS Managed Hardened Gigabit Ethernet Switch
Basic Features of L2+ Managed Fiber Switch
- 8 x 10/100/1000Mbps Auto-sensing TX RJ45 ports
- 1 x 1000Mbps ST fiber port
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Meet IP40 protection degree and EMC industrial grade requirements
- Operating environment temperature: -40°C～75°C
- DIN rail or Wall installations
- Comply with FCC and CE standards
Specification of Industrial Network Switch
| Product Name |
10/100/1000Mbps Managed Industrial Fiber Switch(1F+8TP) |
| Model No. |
IM-FS180GW |
| Port |
1 x 1000Mpbs ST port
SM: 1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID |
4096 |
| Jumbo Frame |
9.6KB |
| MAC Address Table Size |
8K |
| Switching features |
Transmission mode: storage and forward
System bandwidth: 18Gbps (non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
Input voltage: DC12-52V
No-load power:5W;
Reverse connection: support
|
| Environment |
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm
Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
Web GUI Information
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
Please contact us for web manual or CLI manual
Application of ERPS Managed Switch
Packing of Gigabit Ethernet Switch
1. One Managed Fiber Switch, one console cable, one user manual, and one warranty card are in one box.
2. 20pcs boxes are in one carton. (55.5*40*43cm)
After-sales Service
1. 36 Months Manufacturer Warranty (Excluding contrived damage or misusage)
We promise that all the products have been passed the functional test and aging test before delivery.
2. If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace.
The buyer should be responsible for all the charges of returning and second shipping.
FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
