1080P 4K HDMI Kvm Optic Fiber Extender With USB 20km Distance On SC ST FC Fiber
Overview
OLYCOM HDMI video optical converters
Support HDMI and other HD video signal interface
Support all of the video resolution from 640X480 to 1080P
Features
Technical Parameters
| Name | Description |
| DC | 12V1A |
| F/W | Reset Button |
| RJ45 | Normal network interface, connect with switch or connect transmitter and receiver directly |
| HDMI/DVI | Transmitter: HD video input port / Receiver: HD video output port |
| LED | PWR；Video status indicator；Network connection indicator；Fiber indicator |
| Video Compress Format | M-JPEG: Compress 1080P@60HZ video signal to 50Mbps |
| Video Interface | HDMI: Support HDMI1.1/1.2/1.3, HDCP1.1/1.2, Compatible with DVI |
| Protocol | TCP/IP: Standard TCP/IP network protocol |
| Transmission Delay | 70ms: Direct transmission delay less than 70 ms. |
| Remote Control | UART,USB: RS232, USB |
| RJ-45 Port | Auto-MDI/MDIX |
| Video Resolution | VES & CEA-861: 640*480, 720*576, 800*600, 1024*600, 1024*768, 1152*864, 1280*600, 1280*720, 1280*768, 1280*800, 1280*960, 1280*1024, 1440*1050, 1440*900, 1600*900, 1660*1200, 1680*1050, 1920*1080 |
| Audio | Digital Audio: 32khz,44.1khz,48khz. |
| Fiber Port | SC(ST,FC optional) |
| Working Temperature | 0-70℃ |
| Dimension | 152.8mm*130mm*28.3mm |
Ordering Details
| OM615-CH1RKM-T/R | Compressed HDMI Extender, one RJ45 ports, two USB ports |
| OM615-CH1R-T/R | Compressed HDMI Extender, one RJ45 port |
| OM615-CH2RKM-T/R | Compressed HDMI Extender, two RJ45 ports, two USB ports |
| OM615-CH2R-T/R | Compressed HDMI Extender, two RJ45 ports, |
| OM615-CH2R2F-T/R | Compressed HDMI Video Optical Converter, two RJ45 ports,two fiber ports |
| OM615-CH1FKM-T/R | Compressed HDMI Video Optical Converter, one fiber ports, two USB ports |
| OM615-CH1F-T/R | Compressed HDMI Video Optical Converter, one fiber ports |
Application Diagram

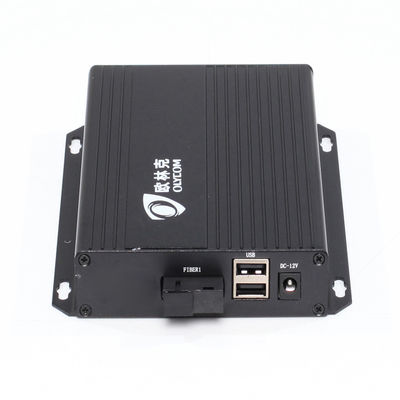

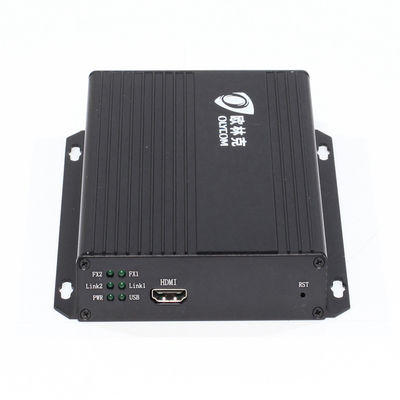

Product Images
