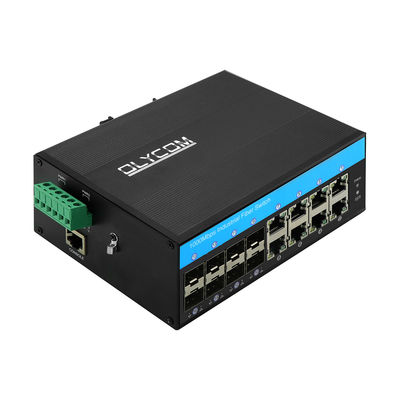

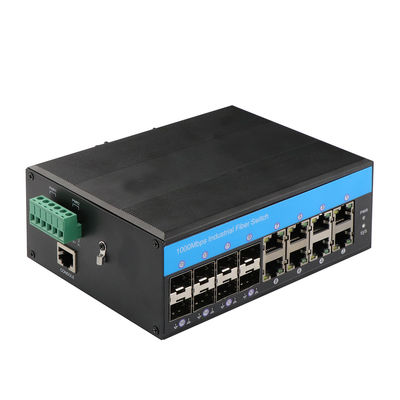

IP40 Manageable Switch 8 Port With 8 SFP Fiber Ports And 1 Console Port

1pc
MOQ
Negotiable
Price
IP40 Manageable Switch 8 Port With 8 SFP Fiber Ports And 1 Console Port
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Managed 8 Port Switch
Console Port: One RJ45
Fiber Port: Eight SFP Slots
LEDs: Power, Network, Fiber
Storage Temp: -40~+85°C
Safety Class: IP40
High Light:

IP40 Manageable Switch 8 Port

,

1 Console Port Manageable Switch 8 Port

,

IP40 8 port switch with SFP

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, ROHS
Model Number: IM-FS880GW
Payment & Shipping Terms
Packaging Details: 1pc in box
Delivery Time: 3-5 workdays
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 8000pcs per month
Product Description

Managed 8 Port Switch Industrial Grade With 8 SFP Fiber Ports And 1 Console Port



Introduction



IM-FS880GW is the 10/100/1000 Mbps Managed 8 Port Switch , operating temperature-40 ℃ to + 75 ℃, support wide voltage dual power input, support web management, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Key Features



  1. 8 x 10/100/1000Mbps Auto-sensing TX RJ45 ports

  2. 8 x 1000Mbps SFP fiber port

  3. Support cable diagnosis and can locate the fault point

  4. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption

  5. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)

  6. Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services

  7. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR

  8. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation

  9. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching

  10. Support IGMP agent report, MLD snooping

  11. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2

  12. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet

  13. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing

  14. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82

  15. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP

  16. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.



Spectification



Product Name Managed 8 Port Switch (8F+8TP)
Model No. IM-FS880GW
Port

8 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;

8 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

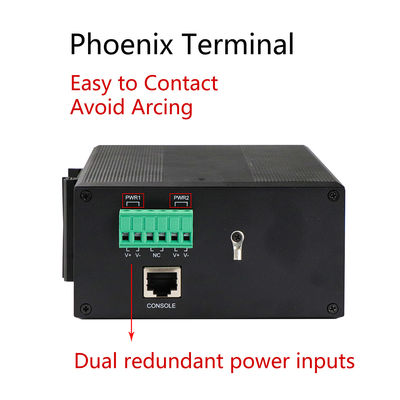

Input voltage:DC 12-52V; No-load power:5W;

Reverse connection: support

Environment Working Temp:-40°~ 75°C ; Storage Temp:-40°~ 85°C;Working humidity:10%~90%, non-condensing; Storage humidity:10%~95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4

Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

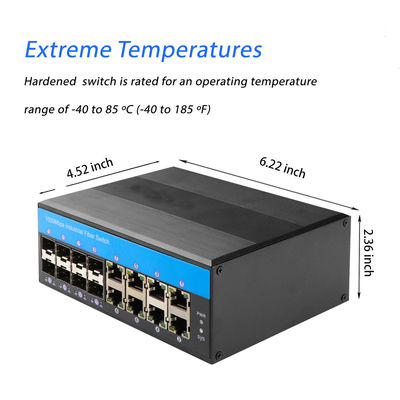

Dimension:158 x 114.8 x 60mm;

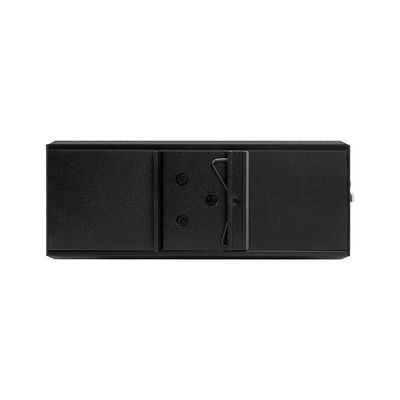

Mounting method:Din-rail mounting

Warranty Replacement within 1year; 5 years repairing



Application



IP40 Manageable Switch 8 Port With 8 SFP Fiber Ports And 1 Console Port 0



Glossary



AMS
AMS is an acronym for Auto Media Select. AMS is used for dual media ports (ports supporting both copper (cu) and fiber (SFP) cables. AMS automatically determines if a SFP or a CU cable is inserted and switches to the corresponding media. If both SFP and cu cables are  inserted, the port will select the preferred media.
APS
APS is an acronym for Automatic Protection Switching. This protocol is used to secure that switching is done bidirectional in the two ends of a protection group, as defined in G.8031.
ARP
ARP is an acronym for Address Resolution Protocol. It is a protocol that used to convert an IP address into a physical address, such as an Ethernet address. ARP allows a host to communicate with other hosts when only the Internet address of its neighbors is known. Before using IP, the host sends a broadcast ARP request containing the Internet address of the desired destination system.
ARP Inspection
ARP Inspection is a secure feature. Several types of attacks can be launched against a host or devices connected to Layer 2 networks by "poisoning" the ARP caches. This feature is used to block such attacks. Only valid ARP requests and responses can go through the switch device.
