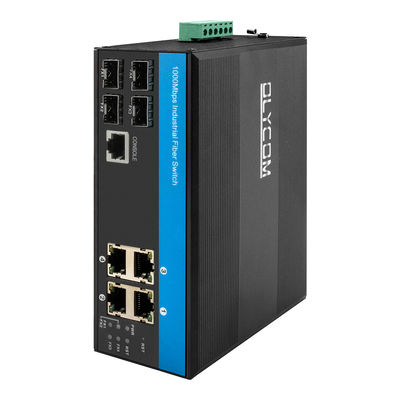

4RJ45 Ports Industrial Managed Ethernet Switch Hub Fiber Optic Wide Voltage

1pc
MOQ
Negotiable
Price
4RJ45 Ports Industrial Managed Ethernet Switch Hub Fiber Optic Wide Voltage
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial Managed Switch
Manufacturer: OLYCOM
SFP Ports: 4
Network Ports: 4
Dimension: 158 X 114.8 X 60mm
Weight: 750g
High Light:

4RJ45 Ports Industrial Managed Ethernet Switch

,

Industrial Managed Ethernet Switch wide voltage

,

4RJ45 Ports Switch Hub Fiber Optic

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, ROHS
Model Number: IM-FS440GW
Payment & Shipping Terms
Packaging Details: 1pc in box
Delivery Time: 3-5 workdays
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 8000pcs per month
Product Description

Gigabit Ethernet 4SFP Fiber Ports 4RJ45 Ports Industrial Managed Switch



Introduction



IM-FS440GW is the 10/100/1000 Mbps Industrial Managed Switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, support web management, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Key Features



  1. 4 x 10/100/1000Mbps Auto-sensing TX RJ45 ports

  2. 4 x 1000Mbps SFP fiber port

  3. Support cable diagnosis and can locate the fault point

  4. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption

  5. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)

  6. Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services

  7. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR

  8. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation

  9. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching

  10. Support IGMP agent report, MLD snooping

  11. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2

  12. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet

  13. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing

  14. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82

  15. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP

  16. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.



Spectification



Product Name Industrial Managed Switch (4F+4TP)
Model No. IM-FS440GW
Port

4 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;

4 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

Input voltage:DC 9-36V; No-load power:5W;

Reverse connection: support

Environment Working Temp:-40°~ 85°C ; Storage Temp:-40°~ 85°C;Working humidity:10%~90%, non-condensing; Storage humidity:10%~95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4

Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

Mounting method:Din-rail mounting

Warranty Replacement within 1year; 5 years repairing



Application



4RJ45 Ports Industrial Managed Ethernet Switch Hub Fiber Optic Wide Voltage 0

Glossary





LACP
LACP is an IEEE 802.3ad standard protocol. The Link Aggregation Control Protocol, allows bundling several physical ports together to form a single logical port.
LLC
The IEEE 802.2 Logical Link Control (LLC) protocol provides a link mechanism for upper layer protocols. It is the upper sub-layer of the Data Link Layer and provides multiplexing mechanisms that make it possible for several network protocols (IP, IPX) to coexist within a multipoint network. LLC header consists of 1 byte DSAP (Destination Service Access Point), 1 byte SSAP (Source Service Access Point), 1 or 2 bytes Control field followed by LLC information.
LLDP
LLDP is an IEEE 802.1ab standard protocol. The Link Layer Discovery Protocol(LLDP specified in this standard allows stations attached to an IEEE 802 LAN to advertise, to other stations attached to the same IEEE 802 LAN, the major capabilities provided by the system incorporating that station, the management address or addresses of the entity or entities that
provide management of those capabilities, and the identification of the stations point of attachment to the IEEE 802 LAN required by those management entity or entities. The information distributed via this protocol is stored by its recipients in a standard Management Information Base (MIB), making it possible for the information to be accessed by a Network
Management System (NMS) using a management protocol such as the Simple Network Management Protocol (SNMP).
LLDP-MED
LLDP-MED is an extension of IEEE 802.1ab and is defined by the telecommunication industry association (TIA-1057).
