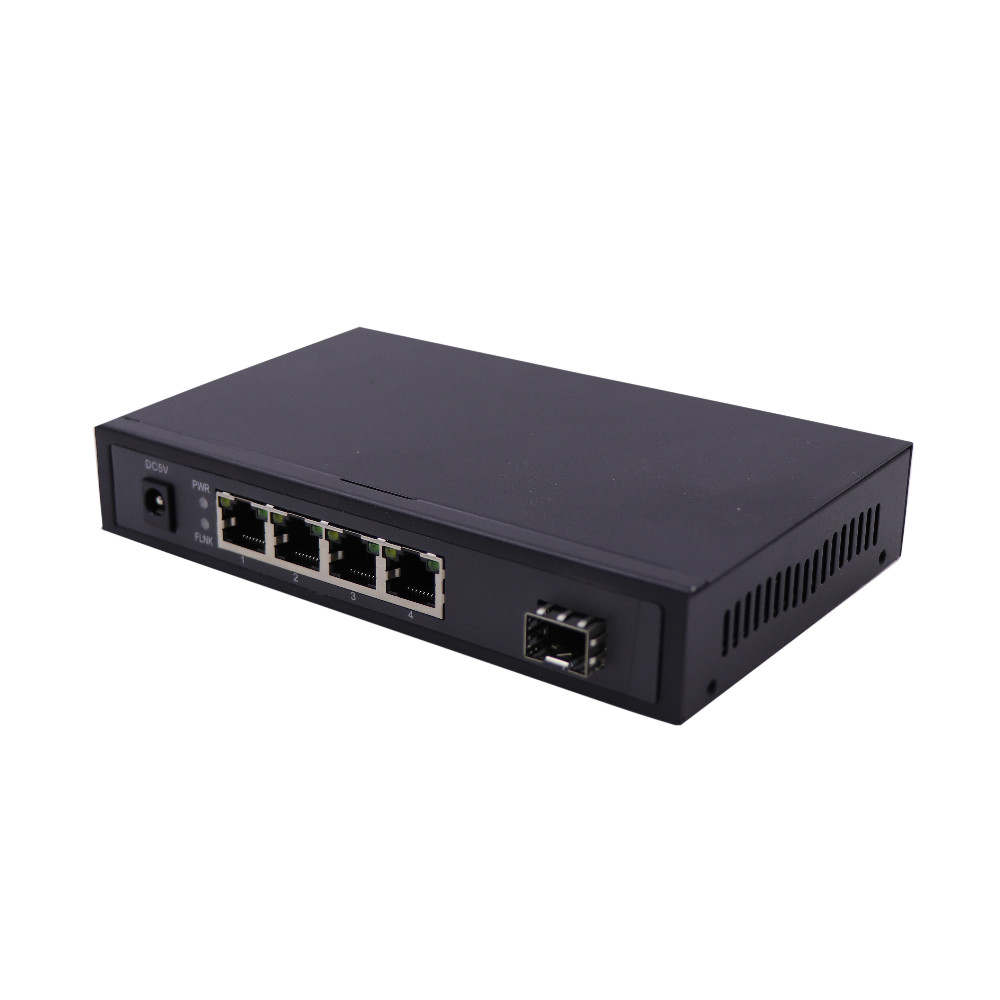

5 Port Fiber Optic Ethernet Switch Gigabit Ethernet With SFP Fiber Port
Introduction
TA714-GE/XX 5 Port Fiber Optic Ethernet Switch uses SFP fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 2km max on MMF and 100km max on SMF.
The SFP fiber port is more convenient for clients to change the SFP module. If the SFP module is broken. just need to change the SFP module and don't need to change the fiber switch.
Key Features
1 x 1.25G SFP fiber port
4 x10/100/1000M auto-sensing Half/Full duplex RJ45 ports
Excellent cooling system with unique HIC solution
Follow control and broadcast storm control
IEEE802.3/u/x compliant
Conspicuous LED indicators for power/link diagnose/data
50,000 hours MTBF
Specification
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Protocol |
CSMA/CD |
|
Fiber |
1 x SFP fiber port |
|
Distance |
Single fiber SM: 20-100km, Dual fiber MM: 550m, Dual fiber SM:20-100km |
|
Optical interface |
LC, SC (depend on the SFP module) |
|
Ethernet Interface |
4 x 10/100/1000M (MDI/MDIX RJ45 ports) |
|
Power Supply |
DC5V 1A (external power) |
|
Operating Temperature |
0℃～+50℃ |
|
Storage Temperature |
-30℃～+60℃ |
|
Humidity |
5%~90% non-condensing |
|
Dimension |
160mm ×95mm ×28mm |
|
Weight |
0.65 kg (G.W) |
Application
Where 1 FX needs to be extended to several copper ports
1 fiber source to multi-users
Offices and work groups
Schools
Power supply stations
Order Details
|
TA714-GE/XX |
10/100/1000Mbps, 1 fiber to 4 UTP, SFP slot |
|
TA714-GE/S20-SC |
10/100/1000Mbps, 1 fiber to 4 UTP, single fiber, SMF, SC, 20Km |
|
TA714S/U-GE/S20-SC |
10/100/1000Mbps,1 fiber to 4 UTP, single fiber, SMF, SC, 20Km |
|
TA712-GE/S20-SC |
10/100/1000Mbps, 1 fiber to 2 UTP, dual fiber, SMF, SC, 20Km |
|
TA717-GE/S20-SC |
10/100/1000Mbps, 1 fiber to 7 UTP, dual fiber, SMF, SC, 20Km |
|
TA723-GE/S20-SC |
10/100/1000Mbps, 2 fiber to 3 UTP, dual fiber, SMF, SC, 20Km |
|
TA726-GE/S20-SC |
10/100/1000Mbps, 2 fiber to 6 UTP, dual fiber, SMF, SC, 20Km |
|
TA732-GE/S20-SC |
10/100/1000Mbps, 3 fiber to 2 UTP, dual fiber, SMF, SC, 20Km |
