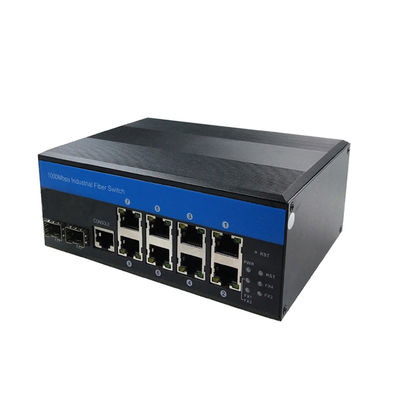

10 Port Layer 2 Web Managed Industrial Gigabit Switch
Introduction
Key Features
Specification
| Product name |
10/100/1000Mbps Managed Industrial Fiber Switch (2F+8TP) |
| Model No. |
IM-FS280GW |
|
Port |
2x 100M/1G/2.5G SFP ports SM: 1310nm/1550nm, 20Km 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500m 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344 IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
|
VLAND ID |
4096 |
|
Jumbo Frame |
9.6K |
| MAC Address Table Size | 8K |
|
Switching features |
Transmission mode: storage and forward System bandwidth: 26Gbps (non-traffic jam) |
|
Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
|
LEDs |
Power, network, fiber |
|
Power supply |
Input voltage:DC 12-52V No-load power:5W Reverse connection: support |
|
Environment |
Working temperature: -40～75°C Storage temperature: -40～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Mechanical information |

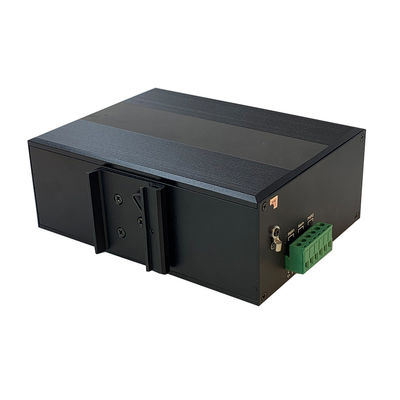

Shell:Corrugated metal shell Safety class:IP40 Dimension:158 x 114.8 x 60mm Mounting method:Din-rail mounting |
Application
.
FAQ
How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.
Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.
Can you let me know how the indicators work?
A: This is our Vitesse based managed switch series and all models share the same indicator definition as below.
PWR: Power
FX: Fiber port(1/2/3/4)
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
Do you do SKD/CKD?
A: Yes, we have dealt with this many times.
As a factory, we have enough energy and resources to handle this.
Can I add my logo/model in the management?
A: Yes, it is easy and free of cost, please just send your model name and logo in PS/AI format. We will do the rest and send a photo for your confirmation.
Do your switches support any ring protocols?
A: Yes, our switches support STP/RSTP/MSTP and ERPS for ring configuration.
