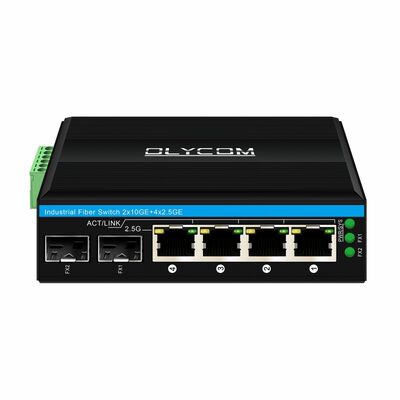

The Silent Guardian of Your Industrial Network – 10G Unmanaged Switch with Unmatched Durability
Specification
|
Item
|
Parameters
|
|
Standards & Protocols
|
IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3bz (2500Base-T)
IEEE 802.3ae (10GBASE-SR/LR/ER)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.3x (Flow Control)
IEEE 802.3af PoE (15.4W)
IEEE 802.3at PoE+ (30W)
|
|
Management
|
Unmanaged
|
|
PoE Function
|
PoE ports: Port 1/2/3/4
Output power: 15.4W ~ 30W
PoE pin assignment: 1,2,3,6 or 4,5,7,8
|
|
Ethernet Interfaces
|
RJ45: Auto speed negotiation, full/half duplex, auto MDI/MDI-X
SFP: Auto 1G/2.5G/10G rate adaptive
|
|
LED Indicators
|
Power/system LED, RJ45 port LEDs, SFP optical port LEDs
|
|
Switching Performance
|
MAC address table: 4K entries
Packet forwarding rate: 44.64 Mpps
Switching capacity: 40 Gbps
Jumbo frame support: 12KB
Forwarding mode: Store-and-forward
Latency: < 10 μs
|
|
Power Supply
|
DC 12~52V, dual power input with reverse polarity protection
|
|
Power Consumption
|
No load: 1.9125 W
Full load: 7.64 W
|
|
Operating Environment
|
Operating temperature: -40°C ~ 75°C
Storage temperature: -40°C ~ 85°C
|
|
Mechanical Dimension
|
L × W × H: 114 × 94 × 36 (mm)
|
|
Mounting Method
|
DIN rail mounting / desktop standalone
|
|
Industrial EMC Standards
|
IEC 61000-4-2 (ESD Electrostatic Discharge)
Air discharge: ±15KV
Contact discharge: ±8KV
IEC 61000-4-4 (EFT Electrical Fast Transient)
Signal port: ±6KV
IEC 61000-4-5 (Surge Lightning Immunity)
Signal port: Differential ±2KV, Common-mode ±6KV
|
|
Certifications
|
CE-EMC:
EN 55032:2015+AC:2016+A1:2020+A11:2020
EN 55035:2017+A11:2020
EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021/AC:2022
CE-LVD: EN IEC 62368-1:2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B (Class B), ANSI C63.4:2014
|
|
Warranty
|
3 years
|
LED Indicator
|
Indicator
|
Status Description
|
|
PWR/SYS
|
Power & system running indicator
|
|
FX1, FX2
|
Solid ON: Optical signal normal
Solid OFF: No optical signal
Blinking: Normal data transmission
|
|
RJ45
|
Orange: Port rate indicator (Solid = 2500M; OFF = 1000M/100M)
Green: ACT/LINK indicator (Blinking = data transferring)
|
Key Features
- Hybrid Speed Architecture – Combine 10G fiber uplinks for high‑capacity aggregation and 2.5G copper ports for bandwidth‑hungry endpoints. Auto‑negotiation across 100M/1G/2.5G/10G effortlessly accommodates mixed device fleets, from legacy sensors to cutting‑edge cameras.
- Industrial‑Strength Protection – Surpassing IEC 61000‑4‑2/4/5 benchmarks, the DS‑I14 offers ±15kV air‑discharge ESD, ±8kV contact ESD, and ±6kV surge immunity – keeping your network safe from electrical disturbances, grounding loops, and lightning strikes.
- Smart PoE+ Power Delivery – Each of the four RJ45 ports can supply up to 30W (IEEE 802.3at), with flexible pin assignment (1/2/3/6 or 4/5/7/8) to power IP cameras, wireless APs, and IoT sensors without extra cabling.
- Silent & Energy‑Smart – The fanless design eliminates mechanical noise and failure points, while IEEE 802.3az (Energy Efficient Ethernet) cuts idle power to just 1.9W – a green choice for always‑on installations.
- Zero‑Touch Simplicity – As an unmanaged switch, it requires no configuration, saving deployment time and reducing human error. Yet it supports store‑and‑forward with 12KB jumbo frames, ensuring smooth data flow even under heavy loads.
- Rugged & Compact – Housed in a durable metal chassis (114×94×36 mm), it supports both DIN‑rail and desktop mounting, fitting effortlessly into cramped cabinets or control panels.
Application
This 2.5G Ethernet Switch excels wherever reliability is paramount.
In factory automation, it connects PLCs, robotic arms, and machine‑vision systems with microsecond‑level latency.
For intelligent transportation, it links traffic‑signal controllers and surveillance cameras along highways, braving temperature swings and vibration. In building automation, it powers and networks access‑control panels, HVAC units, and lighting systems – all from a single device.
Security integrators will appreciate its PoE capability for outdoor PTZ cameras, while telecom operators can deploy it in base stations and power substations where wide‑voltage input (12–52V DC) and surge protection are essential.
From smart cities to remote industrial IoT, it is the resilient backbone that keeps your data flowing without interruption, delivering peace of mind in the harshest environments.
Dimension
