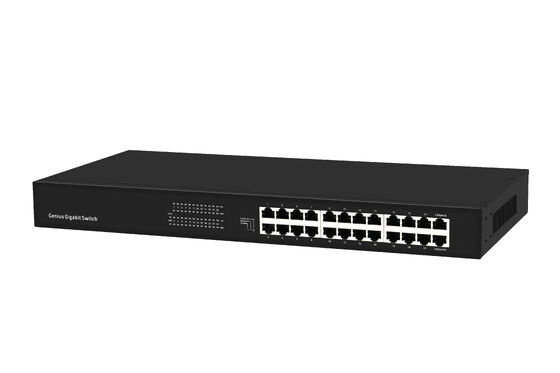

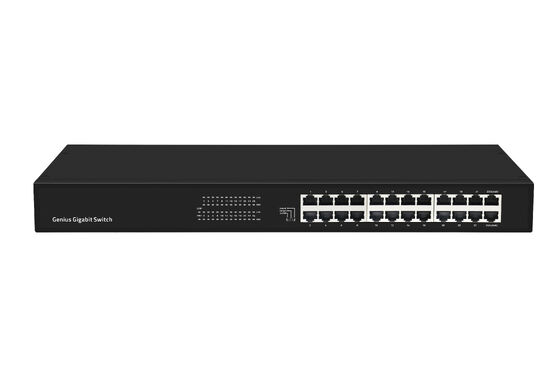

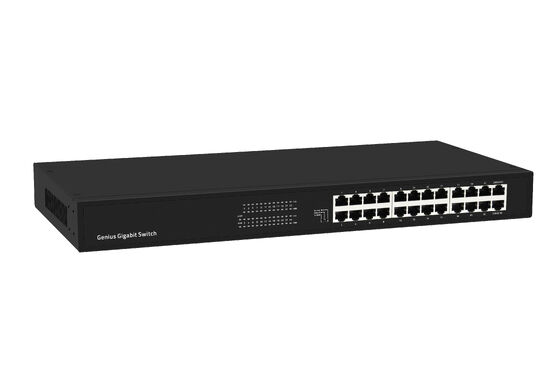

Olycom 24-port Gigabit Ethernet switch with VLAN/Extend mode
Introduction
The TA-7024GE-U is a high-performance 24-port Gigabit Ethernet switch designed for stable and efficient network connectivity.
Powered by a reliable and intelligent switching chipset, it delivers seamless 10/100/1000Mbps data transmission across all ports.
With a fanless design, the switch ensures silent operation, making it ideal for noise-sensitive environments such as offices and commercial spaces.
Its plug-and-play functionality, combined with one-key smart switching modes, allows for easy deployment, management, and maintenance.
Specification
|
Product Name
|
24 Port 10/100/1000Mbps Rack Type Ethernet Switch
|
|
Port
|
24x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing)
|
|
Switching Capacity
|
48Gbps
|
|
Throughput
|
35.71Mpps
|
|
Packet Buffer
|
4M
|
|
MAC Address
|
8K
|
|
Jumbo Frame
|
4Kbytes
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hours
|
|
Network Protocol
|
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3ab(1000Base-TX)
IEEE802.3x(Flow control)
|
|
Industry Standard
|
EMI: FCC Part 15 CISPR(EN55032)class A
EMS: EN61000-4-2(ESD)
EN61000-4-5(Surge)
|
|
Network Medium
|
10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or above UTP(≤100m)
|
|
Certification
|
CE/FCC/RoHS
|
|
Working Environment
|
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
|
Input Voltage
|
AC100-240V, Single Power Input
Internal AC-DC Converter: 12V2A
|
|
LED Indicators
|
PWR(Power indicator)/LOOP(Loop alarm)/Link(Network Link)/1000M
|
|
DIP Switch
|
VLAN: Port Isolation, 1-22 ports are isolated each other, all communicate with uplink port 23/24
Default: Default mode, support loop alarm
Extend: Monitor Mode, 1-22 ports support 100M speed reduction negotiation, support 250 meters in 10M/s mode, port 23/24 as uplink port
|
Key Features
- 24 × 10/100/1000Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX
- Compliant with IEEE802.3, IEEE802.3u, and IEEE802.3ab standards
- One-key smart switching: VLAN / Default / Extend modes
- VLAN mode for port isolation, enhancing network security
- Extend mode supports up to 250m transmission (10Mbps)
- QoS priority on ports 1–8 for optimized traffic management
- Built-in loop detection and alarm function
- Fanless design for silent and reliable operation
- LED indicators for real-time network status monitoring
- High switching capacity of 48Gbps with stable data forwarding
Packing Information
1pc switch(neutral device)
1pc power cable(standards vary across countries)
1pc user manual(including QIG information)
1pair mounting brackets(rack mountable)
Product size: 440*204*44.5mm
Inner box size: 500*275*85mm
Product weight: 2.2Kg
Packing weight: 2.7Kg
Master box size: 520*445*300mm
Packing quantity: 5Pcs
Packing weight: 14.5Kg
Remark
Accessories(Network cable etc.)are NOT included in the packing box
Power cable is included in BOTH the packing box AND unit pricing
Application Diagram
