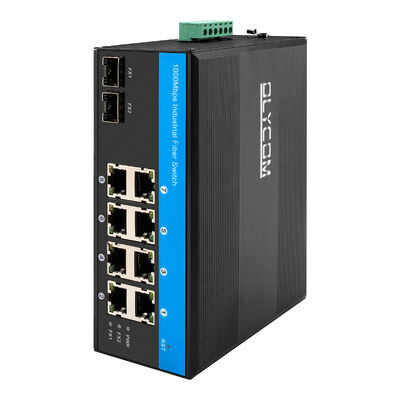

Industrial Unmanaged POE Switch with 6KV Surge Protection, Wide Temperature Range (-40°C to +75°C), and 2 SFP + 8 RJ45 Ports

1 pc
MOQ
Negotiable
Price
Industrial Unmanaged POE Switch with 6KV Surge Protection, Wide Temperature Range (-40°C to +75°C), and 2 SFP + 8 RJ45 Ports
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Gigabit 8 Port Switch
Surge Protection: ±6KV
Brand: Olycom/customized/no Brand
OEM: Accpet
Installation: Din-rail
Highlight:

6KV Surge Protection Industrial Unmanaged POE Switch

,

Wide Temperature Range Gigabit Ethernet Switch

,

2 SFP + 8 RJ45 Ports 8 Port Network Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE
Model Number: IM-FS280GE
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description
Gigabit 8 Port Switch with 2 SFP+8 RJ45 Ports for Outdoor Use
This industrial-grade unmanaged Ethernet switch delivers reliable high-speed connectivity for demanding outdoor and industrial environments.
Key Features
Gigabit Connectivity for High-Speed Data Transmission

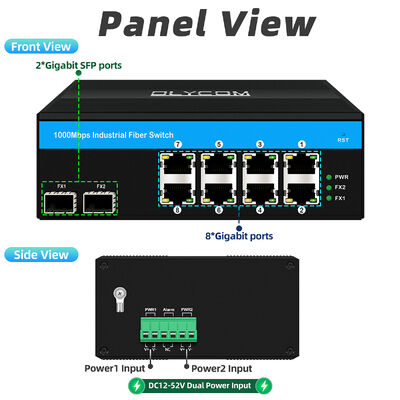

  • 8 × 10/100/1000 Mbps auto-sensing RJ45 ports and 2 × 1000 Mbps SFP fiber ports
  • Supports fiber transmission distances from 2 km up to 120 km depending on SFP module
  • 40 Gbps switching bandwidth with store-and-forward switching mechanism
Ensures stable and efficient data communication in industrial networks.

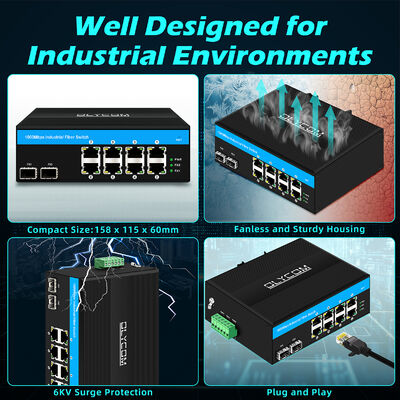

Industrial-Grade Design for Harsh Environments
  • Wide operating temperature range: -40°C to +75°C
  • IP40 metal housing for enhanced durability and protection
  • Built-in 6KV Ethernet surge protection for outdoor or high-interference environments
Operates reliably in demanding industrial conditions.
Reliable Power Input Design
  • Supports DC 12-52V wide voltage input
  • Includes reverse polarity protection for operational safety
  • Low power consumption design
Ensures stable operation even with unstable power supply.
Easy Deployment and Installation
  • Supports Auto MDI/MDIX for automatic cable detection
  • Plug-and-play operation with no complex configuration required
  • DIN-rail mounting design for industrial cabinets
Simplifies installation and reduces deployment time.
Stable Network Transmission Mechanism
  • Supports IEEE 802.3x flow control in full duplex mode
  • Supports back pressure mechanism in half duplex mode
Prevents packet loss and ensures stable network communication.
Technical Specifications
Product Name 10/100/1000Mbps Gigabit 8 Port Switch (2F+8TP)
Model No. IM-FS280GE
Port Configuration 2 x 1000Mbps SFP ports (SM:1310nm/1550nm,20Km; 1490nm/1550nm,40-120Km; MM:1310nm,2Km)
8 x 10/100/1000M UTP RJ45 (Support MDI/MDIX auto-sensing)
Switching Features Transmission mode: storage and forward
System bandwidth: 40Gbps (non-traffic jam)
Network Media 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair (≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair (≤100m)
SFP port transmission distance: 20Km,40Km,60Km,80Km,100Km
LED Indicators Power, network, fiber
Power Supply Input voltage: DC 12-52V
No-load power: 5W
Reverse connection: supported
Environmental Working temperature: -40° to 75°C
Storage temperature: -40° to 85°C
Working humidity: 10%-90%, non-condensing
Storage humidity: 10%-95%, non-condensing
Industry Standards EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
Safety CE Mark, commercial CE/LVD EN60950
Mechanical Information Shell: Corrugated metal shell
Safety class: IP40
Dimension: 158 x 114.8 x 60mm
Mounting method: Din-rail mounting
Warranty 3 years
Applications
  • Industrial Automation Systems: Connects PLCs, controllers, sensors, and IO modules in automated production lines to build stable industrial Ethernet communication networks.
  • Intelligent Transportation Systems (ITS): Suitable for traffic monitoring, traffic signal control, and roadside network infrastructure with long-distance fiber communication between field devices and control centers.
  • Video Surveillance Networks: Used in security monitoring systems requiring stable, long-distance data transmission with fiber uplink for centralized monitoring systems.
  • Power and Energy Industry: Applicable in substations, power monitoring systems, and energy management networks, designed to operate reliably in environments with strong electromagnetic interference.
  • Outdoor and Harsh Industrial Environments: Suitable for mining, tunnels, ports, and other demanding environments, providing stable network connectivity under extreme temperature conditions.
Frequently Asked Questions
Can I have my logo on the device?
Yes, we are an OEM manufacturer. Please send your logo in PS/AI format, and we will handle the rest.
Is it managed?
No, this series is unmanaged. We have another managed series available for your selection.
What installation method does it support?

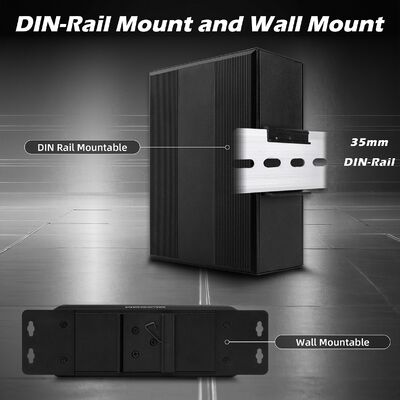

It supports DIN rail and wall mounting. If special mounting kits are required, we can accommodate this as we have experience with custom installations.
Does the fiber port support 100M speed?
Yes, for 100M models, it supports 100M modules. For Gigabit models, the fiber port is 100M/1000M auto-adaptive, accepting both 155Mb/s and 1.25Gb/s modules.
Can you help write the label content?
Yes, please let us know if you need to include your model name, logo, or description on the label. Standard language is English, but we can accommodate other languages if you provide the accurate format.
