Home /Products/Industrial Unmanaged POE Switch/Industrial Unmanaged POE Switch with 6KV Surge Protection, Wide Temperature Range -40°C to +75°C, and 2 SFP + 2 RJ45 Ports

Industrial Unmanaged POE Switch with 6KV Surge Protection, Wide Temperature Range -40°C to +75°C, and 2 SFP + 2 RJ45 Ports

1 pc
MOQ
Negotiable
Price
Industrial Unmanaged POE Switch with 6KV Surge Protection, Wide Temperature Range -40°C to +75°C, and 2 SFP + 2 RJ45 Ports
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Power Supply: DC12-52V
PoE Output Power: 15.4W/30W
Product Name: Mini Optical Fiber Converter
LEDs: Power, Network, Fiber
Surge Protection: ±6KV
OEM: Accept
Highlight:

6KV Surge Protection Industrial Unmanaged POE Switch

,

Wide Temperature Range Mini Optical Fiber Converter

,

2 SFP + 2 RJ45 Ports Din-Rail Network Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE
Model Number: IM-FS220GE
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description

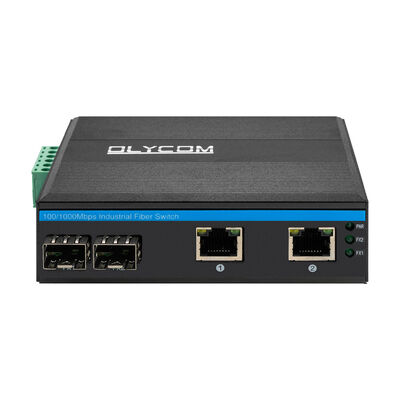

Mini Optical Fiber Converter 10/100/1000Mbps 2RJ45+2SFP DIN-Rail Unmanaged Network Switch
This industrial-grade unmanaged network switch provides reliable fiber-to-copper connectivity with 2 Gigabit SFP fiber ports and 2 10/100/1000Base-T RJ45 ports, designed for demanding industrial environments.
Key Features
  • Industrial Gigabit Fiber Switch with 2 fiber + 2 copper ports for flexible network deployment
  • Reliable data transmission with store-and-forward switching mechanism and high backplane bandwidth

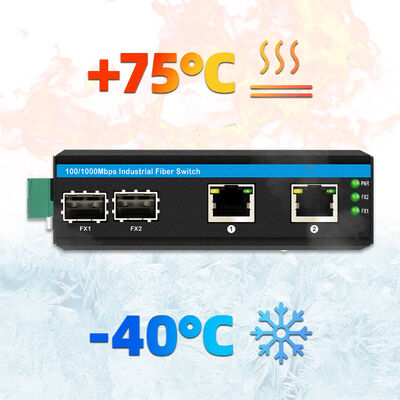

  • Wide operating temperature range (-40°C to +75°C) and DC 12-52V wide voltage input

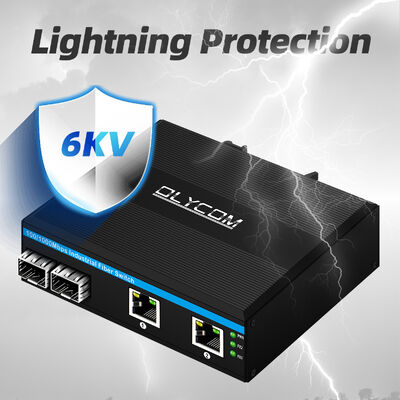

  • 6KV Ethernet surge protection and industrial EMC compliance for high-interference environments

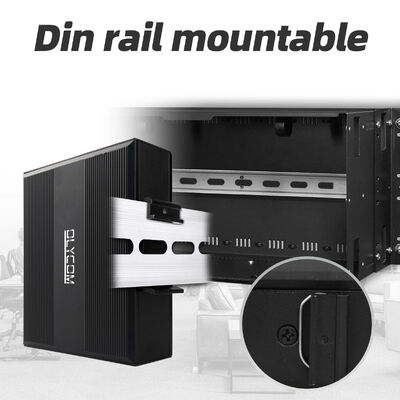

  • Industrial-grade metal housing with IP40 rating and DIN-rail mounting for durability
Industrial Unmanaged POE Switch with 6KV Surge Protection, Wide Temperature Range -40°C to +75°C, and 2 SFP + 2 RJ45 Ports 0
Technical Specifications
Product Name10/100/1000Mbps Industrial Fiber Switch (2F+2TP)
Model No.IM-FS220GE
Port Configuration2 x 1000Mbps SFP ports (SM:1310nm/1550nm,20Km; 1490nm/1550nm,40-120Km; MM:1310nm,2Km)
2 x 10/100/1000M UTP RJ45 (MDI/MDIX auto-sensing)
Switching FeaturesStorage and forward transmission mode
System bandwidth: 40Gbps
DRAM: 128M
Flash: 16M
Packet buffer: 4Mb
Network Media10BASE-T: CAT3/CAT4/CAT5 UTP (≤100m)
100/1000BASE-TX: CAT5 or above STP (≤100m)
SFP transmission distance: 20Km,40Km,60Km,80Km,100Km
LED IndicatorsPower, network, fiber
Power SupplyInput voltage: DC 12-52V
No-load power: 5W
Reverse connection support
EnvironmentalWorking temperature: -40°C to 75°C
Storage temperature: -40°C to 85°C
Working humidity: 10%-90% non-condensing
Storage humidity: 10%-95% non-condensing
Industry StandardsEMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2/3/4/5/6/8 Level 3
Vibration: IEC 60068-2-6
Rail Traffic: EN 50121-4
SafetyCE Mark, commercial CE/LVD EN60950
MechanicalCorrugated metal shell, IP40 rating
Dimensions: 113.8 x 93 x 34.9mm
Mounting: DIN-rail
Warranty3 years

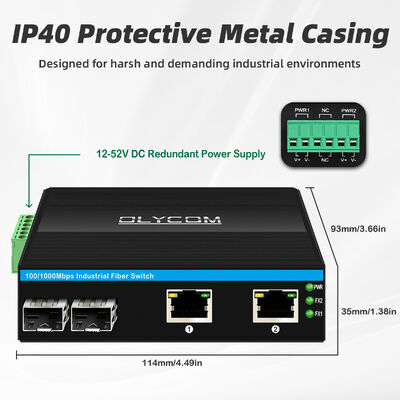

Product Dimensions
Industrial Unmanaged POE Switch with 6KV Surge Protection, Wide Temperature Range -40°C to +75°C, and 2 SFP + 2 RJ45 Ports 1
Packaging Information
Industrial Unmanaged POE Switch with 6KV Surge Protection, Wide Temperature Range -40°C to +75°C, and 2 SFP + 2 RJ45 Ports 2
Product is placed in ESD bag with PE foam protection and outer carton packaging. Standard packing includes main device, warranty card, and user manual.
Single unit box dimensions: 23*16.5*5.8cm
Bulk packaging: 40 units per box (67*33*47cm)
Application Scenarios
  • Industrial Automation Systems - Connects PLCs, sensors, and I/O modules for stable data communication on production lines
  • Intelligent Transportation Systems - Supports traffic monitoring and control systems with long-distance fiber transmission
  • Power and Energy Networks - Ensures reliable communication in substations and power monitoring systems
  • Video Surveillance Systems - Enables long-distance data transmission between cameras and control centers
  • Railway and Tunnel Environments - Provides stable networking in high-vibration and high-interference conditions
