Olycom Mini Rugged Fast Ethernet PoE/PoE+ Fiber Switch
Specification
|
Product Name
|
10/100Mbps Industrial PoE Fiber Switch(1F+2TP)
|
|
Model No.
|
IM-FP122FE
|
|
Port
|
1x100M SFP Fiber
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
2x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)
1x6-PIN Power Terminal Block
|
|
Protocol
|
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3af 15.4W(PoE)
IEEE 802.3at 30W(PoE+)
|
|
Switching Features
|
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 0.6Gbps (non-traffic jam)
Forwarding rate: 0.4464Mmps
MAC: 4K
Packet buffer size: 1.75Mb
|
|
Network Media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LEDs
|
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On: PoE is working
Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On: transmission speed is 100Mbps
Blinking: in transmission
Off: Disconnected or working speed is 10Mbps
|
|
Power Consumption
|
Full loading without PoE≤5W
|
|
Power Supply
|
PoE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 30W (port 1~2)
Total budget: 60W
PoE output voltage: 48V
Reverse connection: support
|
|
PoE Wiring
|
1/2 (V+), 3/6 (V-)
|
|
Environment
|
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Mechanical information
|
Shell: Corrugated metal shell, IP40 grade level
Dimension: 114*93*35mm

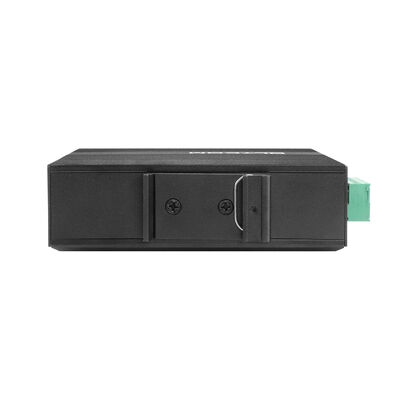

Mounting method: Din-rail/Wall mounting
Weight: 0.35Kg/0.45Kg(Net/Gross)
|
|
Warranty
|
3 years, lifetime technical support
|
1. What It Is — A Tiny PoE Switch That Solves a Very Specific Industrial Problem
The Olycom IM-FP122FE isn’t trying to be a “network core” or a feature-heavy switch.
It exists for one clear job:
Power a couple of field devices and push their data far away over fiber — reliably, and without configuration.
With 2 Fast Ethernet PoE ports and 1 fiber uplink, this unit sits right at the edge of an industrial network:
inside a roadside cabinet, next to a machine, on a pole, or in a control box where space, power, and reliability all matter more than fancy features.
No management. No setup. Just connect, power on, and walk away.
2. Why This Design Actually Makes Sense
PoE Where Power Is HardFiber Is the Real Star Here
Copper cables stop at 100 meters.
Fiber doesn’t.
The 100Mbps SFP port, supporting distances up to 120 km, allows this small switch to:
Sit next to field devices
Send data directly back to a distant control room
Bridge harsh, noisy, or lightning-prone environments safely
In practice, this makes IM-FP122FE behave like a PoE-powered field node with a fiber backbone.
3. Built for Dirty, Hot, Noisy Places
This switch assumes it will live somewhere unpleasant.
-40°C to 75°C operating range
IP40 metal enclosure
Resistance to ESD, surge, and electrical noise (EMS Level 3)
Rail-traffic compliant (EN 50121-4)
Once installed, it’s meant to stay there for years without attention.
4. No Management — On Purpose
There’s no Web UI, no CLI, no VLAN setup.
That’s not a limitation — it’s the design philosophy.
No configuration mistakes
No firmware compatibility issues
No maintenance overhead
For small PoE deployments, simplicity often equals higher reliability.
5. Where It’s Commonly Used
Compact Industrial Surveillance Points
Perfect for locations that only need one or two cameras, such as:
Factory corners
Small workshops
Entry gates or perimeters
PoE powers the camera, fiber sends video back — done.
6. Roadside & Rail Trackside Cabinets
In traffic and rail environments, space is limited and conditions are rough.
IM-FP122FE fits easily into compact cabinets, powers monitoring devices via PoE, and sends data over long-distance fiber to centralized systems.
7. Utilities & Remote Monitoring Sites
In substations, water treatment plants, or pumping stations:
Field sensors connect via RJ45
PoE eliminates local power adapters
Fiber ensures stable, interference-free transmission
A simple but very dependable edge solution.
8. Harsh Industrial Zones
Mining, petrochemical, and metallurgy sites benefit from:
Dust-resistant enclosure
Electrical noise tolerance
9. Wide temperature operation
It keeps low-power PoE devices online where consumer equipment would fail quickly.
Extending PoE Beyond Copper Limits
When PoE devices must be deployed far beyond 100 meters, this switch acts as a clean bridge:
Copper + PoE on the device side
Fiber on the backbone side
No redesign, no extra converters.
In Short
The IM-FP122FE is not about features.
It’s about doing one job extremely well:
Power a small number of industrial devices and move their data safely over long-distance fiber — all day, every day.
Dimension
-
1pc switch
-
1pc user manual
Remark
Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
Accessories
|
Industrial Optical Module
|
|
OSPL1E06D-85
|
100BASE-FX(850nm)
|
|
OSPL1E06D
|
100BASE-FX
|
|
OSPL1E20D
|
100BASE-LX
|
|
OSPL1E40D
|
100BASE-EX
|
|
OSBL1E20D-35
|
100BASE-BX-U(TX 1310 RX1550)
|
|
OSBL1E20D-53
|
100BASE-BX-D(TX 1550 RX1310)
|
|
Industrial DIN Power Supply
|
|
IM-DAC220/DC12V1.67A
|
AC220V to DC12V1.67A, -30℃～70℃
|
|
IM-DAC220/DC24V1A
|
AC220V to DC24V1A, -30℃～70℃
|
