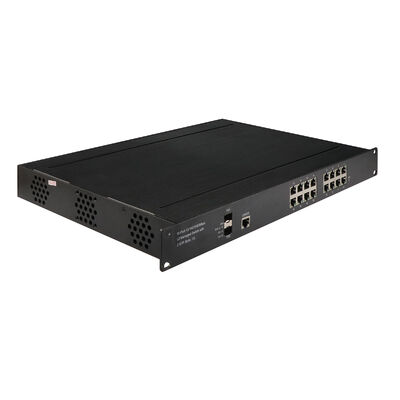

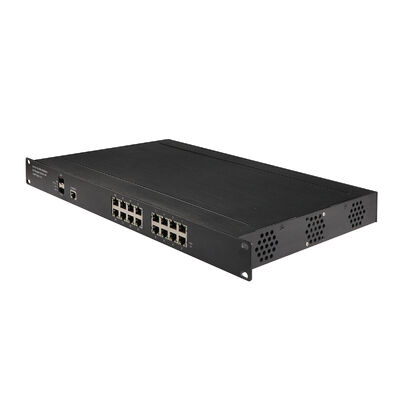

16-Port 1G 2.5G Managed PoE Switch Rack Mounted SFP Uplinks Fanless AC Powered

Key Features

1. High-Density Port Configuration

Equipped with 2 × 1000 Mbps SFP fiber ports and 16 × 10/100/1000 Mbps RJ45 Ethernet ports, the switch supports flexible network expansion. Copper ports are compatible with CAT3/CAT4/CAT5 (10BASE-T) and CAT5e or higher (100/1000BASE-TX) cabling up to 100 meters, enabling easy integration with legacy and modern devices.

2. Industrial-Grade Hardware Design

The robust metal enclosure (483 × 275 × 44.5 mm) meets IP30 protection standards and supports AC 220V non-polar input, simplifying power deployment in industrial cabinets. Compliance with EMI and EMS standards ensures stable operation under strong electromagnetic interference.

3. Rapid Network Redundancy & Loop Protection

Supports ITU-T G.8032 Ethernet Protection Ring (EPR), ERPS, and classic spanning tree protocols including STP, RSTP, and MSTP. These mechanisms provide sub-50 ms fault recovery, prevent network loops, and maintain communication continuity in ring and mesh topologies.

4. Advanced VLAN & Multicast Control

Offers extensive VLAN capabilities including IEEE 802.1Q VLAN, port-based VLAN, MAC-based VLAN, IP subnet VLAN, protocol-based VLAN, VLAN translation, and Multicast VLAN Registration (MVR).

Multicast optimization is enhanced through IGMP/MLD snooping (v1/v2/v3), filtering, and proxy reporting, reducing unnecessary traffic and conserving bandwidth for video and real-time streams.

5. Fine-Grained Traffic Management & QoS

Utilizes store-and-forward switching with support for jumbo frames up to 9.6 KB. Integrated QoS features include traffic classification, priority scheduling (CoS), ingress/egress rate limiting, port shaping, and storm control for broadcast, multicast, and unknown unicast traffic—ensuring deterministic performance for latency-sensitive industrial applications.

Supports IEEE 802.3az Energy Efficient Ethernet to optimize power consumption during low utilization periods.

6. Multi-Layer Network Security

Provides strong access control through IEEE 802.1X authentication, MAC-based security, RADIUS and TACACS+, and flexible ACL policies. Additional protection mechanisms such as IP Source Guard, Dynamic ARP Inspection, and encrypted management via HTTPS, SSL, and SSH v2 help defend against spoofing, unauthorized access, and cyber threats.

Includes DHCP Snooping and DHCP Relay with Option 82 for secure IP address management.

7. Flexible Link Aggregation

Supports both static aggregation and IEEE 802.3ad LACP, allowing multiple physical links to be combined for higher throughput and link redundancy—ideal for backbone and aggregation-layer connections.

8. Comprehensive Management & Monitoring

Supports multiple management methods including CLI (Cisco-style), Web GUI, SNMP v1/v2c/v3, and Telnet. Features include TFTP/HTTP firmware upgrades with dual-image protection, RMON, MIB II, port mirroring, event logs, DNS, and NTP/SNTP time synchronization.

Integrated cable diagnostics help quickly identify and locate wiring faults, reducing on-site troubleshooting time.

9. Full IPv6 Readiness

Native support for IPv6 management and services such as IPv6 Telnet, ICMPv6, SNMPv6, HTTPv6, SSH/SSL over IPv6, IPv6 ACL, IPv6 QoS, TFTPv6, and NTPv6, ensuring compatibility with next-generation network architectures.

10. Proven Industrial Reliability

Certified to withstand vibration, shock, and freefall in accordance with IEC 60068 standards. Operates reliably in 5%–95% non-condensing humidity, making it suitable for continuous operation in extreme industrial environments.

Technical Data

Overview

The Olycom IM-FP021616GW is an industrial-grade Layer 2 managed Ethernet switch designed to deliver stable, high-throughput, and secure network connectivity in demanding industrial environments.
It combines fiber backbone capability with high-density copper access, making it suitable for large-scale industrial device aggregation and long-distance transmission.

The switch provides 2 Gigabit SFP fiber interfaces supporting both single-mode and multi-mode modules, enabling transmission distances from short-range links up to 100 km, alongside 16 auto-negotiating 10/100/1000 Mbps RJ45 Ethernet ports for flexible field device connections. This hybrid design allows seamless fiber-to-copper integration across industrial networks.

Engineered for harsh conditions, the IM-FP021616GW operates reliably across an extended -40°C to +85°C temperature range, features a rugged IP30-rated metal enclosure, and supports AC 220V non-polar power input, ensuring resistance to electrical noise, vibration, and dust commonly found in industrial sites.

With a 36 Gbps non-blocking switching capacity, an 8K MAC address table, and support for up to 4096 VLANs, the switch delivers consistent performance even in high-density, multi-segmented networks.
Advanced management, redundancy, traffic control, and security features ensure uninterrupted 24/7 operation for mission-critical applications.

The product complies with FCC, CE, NEMA-TS2, and EN 50121-4 (railway applications) standards and is backed by a 1-year replacement policy and 3-year repair service, making it a dependable choice for long-term industrial deployments.

Applications

1. Industrial Automation & Control Systems

Supports PLCs, HMIs, sensors, and controllers in production lines and automation systems. VLAN isolation and QoS ensure reliable delivery of real-time control traffic while separating management and monitoring data.

2. Transportation & Railway Networks

Designed for rail and roadside communication systems, complying with EN 50121-4. Ring redundancy protocols ensure fast recovery and uninterrupted connectivity for signaling, monitoring, and passenger information systems.

3. Energy, Power & Utility Infrastructure

Ideal for substations, renewable energy sites, and grid monitoring networks. High availability ring protection and wide temperature tolerance support outdoor and unattended installations.

4. Harsh Industrial Environments

Suitable for mining, metallurgy, petrochemical plants, and heavy industry sites. Resistant to dust, vibration, electrical interference, and extreme temperatures, with remote management simplifying maintenance.

5. Video Surveillance & Remote Monitoring

Optimized for IP camera networks and security systems. Multicast management and QoS prioritize video traffic while VLANs isolate surveillance data from operational networks.

6. Industrial Parks & Enterprise Campuses

Provides reliable aggregation and distribution networking for industrial parks, logistics hubs, and large campuses, supporting high device density, traffic segmentation, and backbone link aggregation.

7. Rail Transit & Public Transportation

Ensures stable communications for on-board equipment, trackside sensors, and station control systems. Rapid fault recovery enhances safety and operational continuity.

8. IPv6 Migration Projects

An ideal platform for organizations transitioning to IPv6, offering full IPv6 data forwarding and management capabilities without compromising performance or security.
