8 Port Industrial POE Switch with 240W Power and 6KV Surge Protection for Harsh Outdoor Environments

1 pc
MOQ
Negotiable
Price
8 Port Industrial POE Switch with 240W Power and 6KV Surge Protection for Harsh Outdoor Environments
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 8 Port Industrial Switch
MTBF: ≥100000 Hours
Surge Protection: ±6KV
Communication Mode: Full-Duplex & Half-Duplex
Housing: IP40 Protection Grade, DIN Rail Type
Products Status: Stock
OEM: Accept
Highlight:

8 Port Industrial POE Switch

,

240W Managed Network Switch

,

6KV Surge Protection Fiber Network Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP188GW
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description
8 Port Industrial POE Fiber Network Switch - 240W Outdoor Rated
This rugged 8-port industrial POE fiber network switch delivers reliable connectivity and power for demanding outdoor applications with 240W power budget and robust environmental protection.
Key Features
  • Power over Ethernet (POE) support for IP cameras and wireless access points via Category 5 Ethernet cable
  • IEEE 802.3af/at compliance for ports 1-8 RJ45 connections
  • 8 x 10/100/1000Mbps auto-sensing RJ45 ports
  • 1 x 1000Mbps SFP fiber port for extended connectivity
  • 6 KV Ethernet surge protection for harsh outdoor environments
  • Auto MDI/MDIX support for simplified cabling
  • Flow control: full duplex with IEEE 802.3x, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • Store-and-forward switching mechanism
  • Wide operating temperature range: -40°C to 75°C

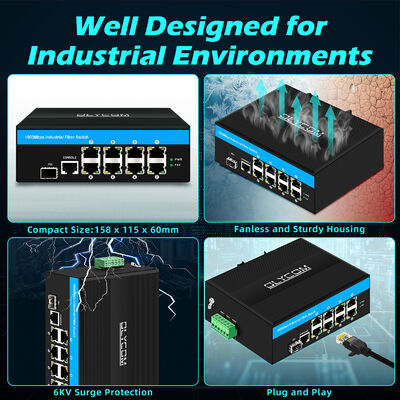

8 Port Industrial POE Switch with 240W Power and 6KV Surge Protection for Harsh Outdoor Environments 0
Technical Specifications
Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch (1F+8TP)
Model No. IM-FP188GW
Port Configuration 1 x 1000Mbps SFP port (SM:1310nm/1550nm,20Km; 1490nm/1550nm, 40-120Km; MM:1310nm, 2Km)
8 x 10/100/1000M UTP RJ45 (Support MDI/MDIX auto-sensing)
Standards IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAN ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching Features Transmission mode: storage and forward
System bandwidth: 58Gbps (non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
Network Media 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair (≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair (≤100m)
SFP port transmission distance: 20Km,40Km,60Km,80Km,100Km
LED Indicators Power, network, fiber
Power Supply POE input voltage: 48V (max 52V)
Single POE output power: 30W (port 1-8)
(802.3bt standards require special instructions)
Environmental Conditions Working Temp: -40° to 75°C
Storage Temp: -40° to 85°C
Working humidity: 10%-90%, non-condensing
Storage humidity: 10%-95%, non-condensing
Industry Standards EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control: NEMA-TS2; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Rail Traffic: EN 50121-4
Safety Certifications CE Mark, commercial; CE/LVD EN60950
Mechanical Information Shell: Corrugated metal shell
Safety class: IP40
Dimension: 158 x 114.8 x 60mm
Mounting method: Din-rail mounting
Warranty 3 years

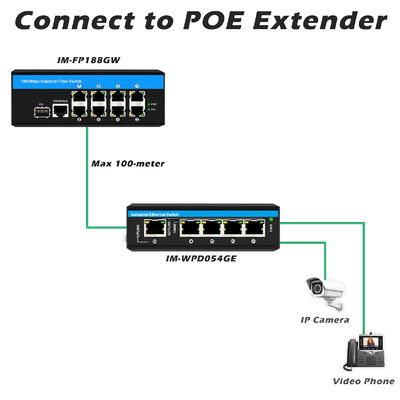

Application Examples

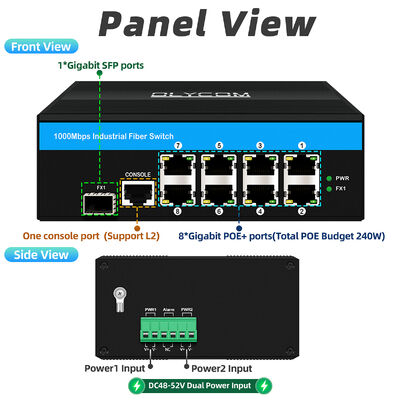

8 Port Industrial POE Switch with 240W Power and 6KV Surge Protection for Harsh Outdoor Environments 1 8 Port Industrial POE Switch with 240W Power and 6KV Surge Protection for Harsh Outdoor Environments 2
Security and Monitoring Solutions for Key Sectors
  • Public Safety: Smart city surveillance systems
  • Transportation: Highway security and automated charging systems
  • Institutional: Building and campus monitoring networks
  • Industrial: Comprehensive monitoring for airports, chemical, steel, oil, railway, water conservancy, and mining operations
  • Military & Defense: Security systems for warehouses, border areas, guarded installations, and national defense

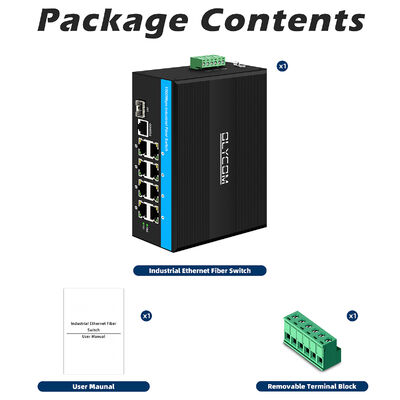

Packaging Information
Product is placed in an ESD bag, then secured in PE foam with outer carton packaging. Standard packaging includes main device, warranty card, and user manual.
Packing Dimensions:
Single unit: 15.8 x 114.8 x 60cm
Bulk packaging (20 units): 55.5 x 40 x 41cm
8 Port Industrial POE Switch with 240W Power and 6KV Surge Protection for Harsh Outdoor Environments 3
