8 Port Gigabit Network Switch Unmanaged 1G SM/MM Fiber Uplinks Fanless FCC IP40 Rated

Olycom 8 Port Hardened Gigabit Ethernet Switch

1. Key Features

Versatile Port Configuration

2x 1000Mbps SFP fiber port (supports SM/MM fiber with 500m–120Km transmission) + 6x auto-sensing 10/100/1000Mbps RJ45 ports, enabling flexible fiber-to-UTP connectivity for diverse industrial devices

Rugged Environmental Durability

6KV Ethernet surge protection and IP40 rating, safeguarding against electrical interference, dust, and harsh outdoor conditions for uninterrupted operation

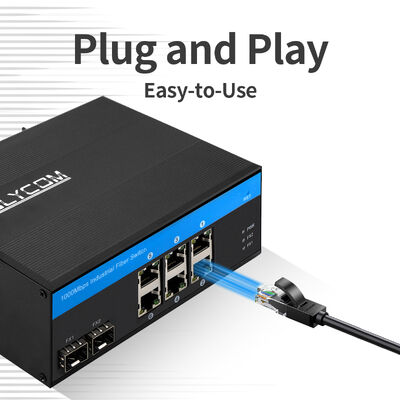

Seamless Plug-and-Play Compatibility

Supports Auto MDI/MDIX, eliminating the need for crossover cables and ensuring hassle-free connection with various network devices

Standardized Flow Control

Full-duplex mode compliant with IEEE 802.3x and half-duplex mode with Back pressure standard, preventing data loss during high-traffic transmissions

Efficient Data Processing

Store-and-forward switching mechanism, 14Gbps non-blocking system bandwidth, 10.416Mmps forwarding rate, 4K MAC address table, and 1.75Mb packet buffer for smooth, low-latency data flow

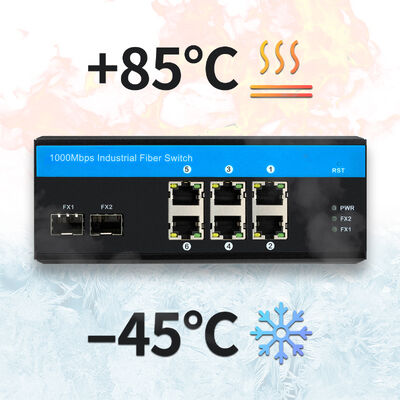

Extreme Temperature Resilience

Operates in -40～75°C working temperature and -40～85°C storage temperature, adapting to extreme cold, heat, and temperature fluctuations in industrial settings

Robust Power Adaptability

Wide DC 12-52V dual power input with reverse connection protection and 5W no-load power consumption, balancing stability, energy efficiency, and protection against wiring errors

Industrial-Grade Compliance

Meets EMC industrial requirements, FCC/CE standards, and EN 50121-4 (rail traffic) / NEMA-TS2 (traffic control) certifications; resistant to vibration, shock, and freefall per IEC 60068 series

Flexible Installation

Compact corrugated metal shell (158x115x60mm) with Din-rail/wall mounting options, fitting tight control cabinets and remote industrial installations.

2. Technical Data

3. Overview

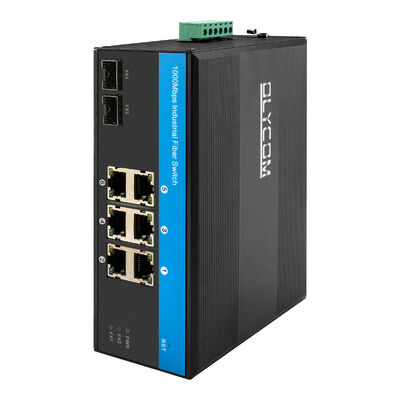

The Olycom IM-FS260GE is a rugged 10/100/1000 Mbps industrial fiber switch designed for reliable operation in harsh environments.
Featuring 2 x 1000Mbps SFP fiber port and 6 x auto-sensing 10/100/1000Mbps RJ45 ports, it supports both single-mode (SM) and multi-mode (MM) fiber with transmission distances ranging from 500m to 120Km, along with twisted-pair connections up to 100m.
Engineered to meet industrial-grade requirements, it operates within a wide temperature range of -40～75°C, accepts a DC 12-52V wide-voltage dual power input (with reverse connection protection), and boasts an IP40 protection rating.
Compliant with FCC, CE, and multiple industrial standards (such as EMC, NEMA-TS2, and EN 50121-4), the switch adopts a corrugated metal shell and supports Din-rail/wall mounting, ensuring continuous and stable performance for automation systems.

4. Application

Ideal for critical industrial scenarios, the IM-FS260GE is widely used across sectors including transportation, electric power, metallurgy, coal mining, petrochemicals, and water treatment.
It serves as a key networking component for industrial control equipment, storage equipment, display devices, and industrial fiber converter systems.
Its ability to withstand extreme temperatures, voltage fluctuations, and harsh environmental factors makes it suitable for connecting devices in automated production lines, remote monitoring systems, and infrastructure projects where reliability and durability are paramount.
Whether deployed in underground coal mines, outdoor power stations, or petrochemical plants, this network switch ensures stable data communication to support smooth operation of industrial systems.

5. Accessory
