8 Port Industrial POE Switch with 6KV Surge Protection and 240W Total Budget for CCTV Systems

1 pc
MOQ
Negotiable
Price
8 Port Industrial POE Switch with 6KV Surge Protection and 240W Total Budget for CCTV Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 8 Port Network Switch
Surge Protection: ±6KV
POE Ports: 8 Ports Support Poe
Brand: Olycom/customized/no Brand
PoE Output Power: 15.4W/30W/60W
OEM: Accpet
Total Budget: 240W
Installation Method: Din Rail Or Wall Mounting
Highlight:

8 POE Ports Industrial POE Switch

,

6KV Surge Protection Unmanaged POE Switch

,

240W Total Budget Fiber Network Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE FCC
Model Number: IM-FP188GE
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description
8 Port Network Switch 10/100/1000Mbps with 8 POE Ports for CCTV Systems

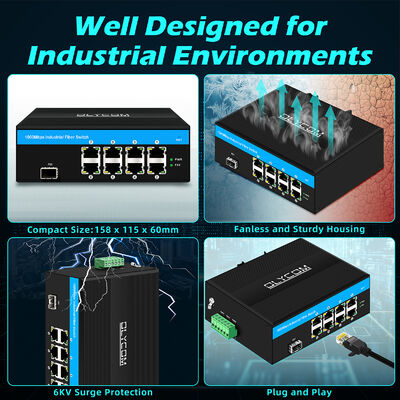

This industrial-grade 8-port network switch combines high-speed Ethernet connectivity with Power over Ethernet (PoE) capabilities, specifically designed for demanding CCTV surveillance systems and harsh outdoor environments.
Key Features
  • Supports power delivery to PoE IP cameras and wireless access points via Category 5 Ethernet cable
  • IEEE 802.3af/at/bt compliance for ports 1-8
  • 8x 10/100/1000Mbps auto-sensing RJ45 ports
  • 1x 1000Mbps SFP fiber port for extended connectivity
  • 6KV Ethernet surge protection for harsh outdoor environments
  • Auto MDI/MDIX support for simplified cabling
  • Flow control: full duplex with IEEE 802.3x, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • Max power: 15.4W (af), 30W (at) per PoE port
  • Automatic PoE device detection
  • Store-and-forward switching mechanism
  • Wide operating temperature: -40°C to 75°C
8 Port Industrial POE Switch with 6KV Surge Protection and 240W Total Budget for CCTV Systems 0
Technical Specifications

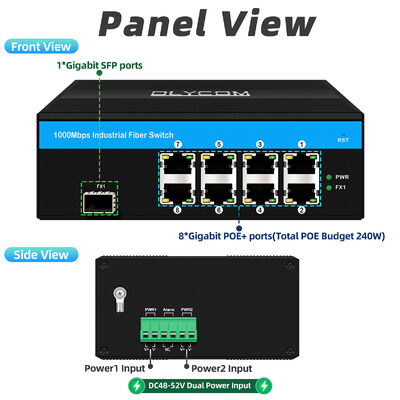

Product Name 10/100/1000Mbps Industrial POE Fiber Switch (1F+8TP)
Model No. IM-FP188GE
Port Configuration 1x 1000Mbps SFP ports (SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40-120Km; MM: 1310nm, 2Km; 850nm, 500m)
8x 10/100/1000M UTP RJ45 (Support MDI/MDIX auto-sensing)
Switching Features Transmission mode: storage and forward
System bandwidth: 40Gbps (non-traffic jam)
Forwarding rate: 14.88Mpps
MAC: 4K
Packet buffer size: 1.75Mb
Network Media 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair (≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair (≤100m)
SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LED Indicators Power, network, fiber
Power Supply POE input voltage: 48V (max 52V)
Single PoE output power: 30W (port 1-8)
Total budget: 240W
PoE output voltage: 48V
Environment Working temperature: -40°C to 75°C
Storage temperature: -40°C to 85°C
Working humidity: 10% to 90%, non-condensing
Storage humidity: 10% to 95%, non-condensing
Industry Standards EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
Safety CE Mark, commercial CE/LVD EN60950
Mechanical Information Shell: Corrugated metal shell
Safety class: IP40
Dimension: 158 x 115 x 60mm
Mounting method: DIN-rail/Wall mounting
Warranty 3 years
Frequently Asked Questions
What is the power budget?
Each PoE port supports 15.4W/30W/60W output. The default output is 30W (please let us know if you need 60W type). The total budget equals output watts of each port multiplied by the number of PoE ports.
Is it managed?
No, this series is unmanaged. We have another managed series available for your selection.
What installation method does it support?
It supports DIN rail and wall mounting. If a special mounting kit is required, we can accommodate this as we have handled similar requests before.
Does the fiber port support 100M speed?
Yes, for 100M models, it supports 100M modules. For Gigabit models, the fiber port is 100M/1000M auto-adaptive - you can insert 155Mb/s or 1.25Gb/s modules, both will work.
Can you help write the label content?
Yes, please let us know if you need to put your model name/logo/description on the label. The standard language is English. For different languages like Korean, Italian or Russian, please send the accurate format and we will copy and paste accordingly.
