Gigabit PoE for Industrial Edge Devices
Four auto-sensing 10/100/1000Mbps RJ45 ports deliver IEEE 802.3af/at PoE power and data over a single Ethernet cable, simplifying installation of IP cameras, sensors, and wireless equipment with a total PoE budget of up to 120W.
Multi-Rate Fiber Uplinks up to 2.5Gbps
Dual SFP slots support 100Mbps, 1Gbps, and 2.5Gbps fiber connections, providing flexible uplink options for long-distance transmission and high-bandwidth aggregation in electrically noisy environments.
Industrial Layer 2 Management
Comprehensive switching features including VLAN, QoS, Link Aggregation (LACP), IGMP/MLD Snooping, and Storm Control allow efficient traffic segmentation and optimized performance for video and control data.
High Availability & Network Protection
Supports STP, RSTP, MSTP, and ITU-T G.8032 Ethernet Ring Protection, enabling fast network recovery and resilient ring topologies in industrial systems.
Secure & Flexible Network Control
Integrated security mechanisms such as IEEE 802.1X authentication, ACLs, RADIUS, TACACS+, HTTPS, and SSH protect industrial networks from unauthorized access.
Rugged Industrial Design
IP40-rated metal enclosure with 6KV Ethernet surge protection ensures stable operation in outdoor and industrial environments, while fanless design enables silent, maintenance-free operation.
Easy Deployment & Maintenance
Managed via Web GUI, CLI, SNMP, and Telnet, with support for remote firmware upgrades and cable diagnostics to reduce downtime and maintenance costs.
Technical Data of Industrial Manageable Switch
|
Product Name
|
10/100/1000Mbps Managed Industrial PoE Fiber Switch(2F+4TP)
|
|
Model No.
|
IM-FP244GW
|
|
Port
|
2*100/1000/2500Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
4*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Protocol
|
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
IEEE802.3af
IEEE802.3at
|
|
Switching Features
|
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 18Gbps(non-traffic jam)
Forwarding rate: 13.392Mpps
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
|
Network Media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LEDs
|
Power, network, fiber
PWR: Power
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1/FX2
|
|

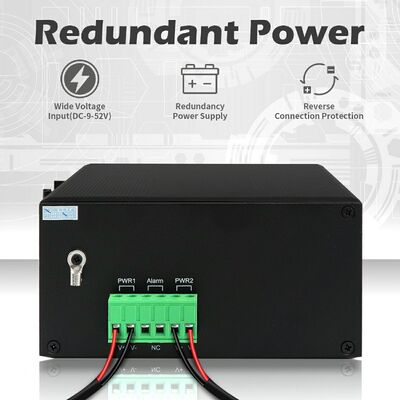

Power Supply
|
Input voltage: 48V(max 52V)
PoE output voltage: 48V
Single PoE output power: 30W(port 1~4)
Max budget: 120W
Reverse connection: support
|
|
PoE Wiring
|
PoE af/at: 1/2(V+), 3/6(V-)
|
|
Environment
|
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Mechanical information
|
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm
Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
|
Warranty
|
3 years, lifetime technical support
|
Applications
1. IP Surveillance & Security Systems
Powers and connects IP cameras and access devices in cities, campuses, factories, and outdoor environments.
2. Industrial Automation & Control Networks
Suitable for factory automation, process control, and machine networking where stable PoE and fiber uplinks are required.
3. Transportation & Infrastructure
Ideal for traffic monitoring, rail systems, and roadside cabinets demanding rugged design and reliable network redundancy.
4. Energy & Utility Networks
Supports substations, wind farms, and utility monitoring systems with secure, managed Ethernet connectivity.
5. Smart City & Outdoor Deployments
Compact footprint and industrial protection make it a strong choice for smart lighting, wireless backhaul, and IoT edge installations.
Overview
The Olycom IM-FP244GW is a compact managed industrial PoE fiber switch designed for edge-level industrial networks that require reliable power delivery, flexible fiber uplinks, and advanced network management.
Featuring 4 Gigabit PoE Ethernet ports and 2 multi-rate SFP fiber ports supporting up to 2.5Gbps, it enables stable connectivity for IP cameras, wireless access points, and industrial Ethernet devices—while extending network reach through fiber.
Engineered for harsh environments, the IM-FP244GW operates across a wide temperature range from -40°C to +75°C, integrates industrial-grade surge protection, and supports both DIN-rail and wall mounting. With full Layer 2 management and PoE control, it is ideal for industrial automation, transportation, and outdoor infrastructure deployments.
Dimension
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
