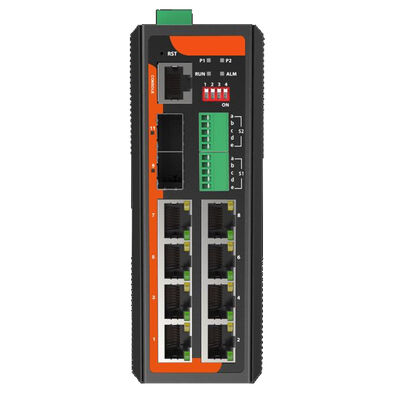

Olycom Serial over Ethernet PoE Fiber Switch
Key Features
1. Serial to Ethernet Integration in One Device
Built-in RS-232 / RS-422 / RS-485 interfaces allow legacy PLCs, meters, sensors, and controllers to communicate directly over IP networks, eliminating the need for external serial device servers.
2. Gigabit PoE for Edge Devices
Eight 10/100/1000Mbps RJ45 ports deliver both data and power to IP cameras, industrial terminals, and controllers, with intelligent PoE detection and a high total power budget suitable for dense field installations.
3. Fiber Uplinks for Long-Distance & Noise-Free Transmission
Dual Gigabit SFP slots provide flexible fiber connectivity, extending network reach and ensuring stable communication in electrically noisy industrial environments.
4. Industrial L2+ Managed Networking
Advanced Layer 2+ features such as VLAN, QoS, Link Aggregation, STP/RSTP/MSTP, and ERPSv2 enable resilient ring and redundant network topologies with fast recovery.
5. Secure & Scalable Management
Comprehensive security including 802.1X authentication, RADIUS, ACLs, HTTPS, SSH, and SNMPv3 ensures safe operation in OT and IT converged networks. Multiple management options via Web GUI, CLI, SNMP, and Cloud/MQTT simplify deployment and maintenance.
6. Rugged, Fanless Industrial Design
Compact IP40 aluminum enclosure, fanless cooling, and DIN-rail or wall mounting allow silent, maintenance-free operation in control cabinets and outdoor enclosures.
7. Reliable Power Architecture
Dual 48–56V DC redundant power inputs with alarm relay output protect against power failures and wiring errors, ensuring continuous operation in mission-critical applications.
Technical Data
|
Model No.
|
IM-FSP288GW
|
|
Etherent Interface
|
|
Ports
|
8x10/100/1000Base-T(X)Ports(RJ45 connector)
2x100/1000Base-FX (SFP Slots)
2x RS485/422/232(5-pin Serial Terminal)
|
|
Port Mode(Tx)
|
Auto-Negotioation Speed
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
|
|
Standards
|
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
|
|
Packet Buffer Size
|
4Mbits
|
|
MAC Address Table Size
|
8K
|
|
Maximum Packet Length
|
Up to 10K
|
|
VLAN ID Range
|
VID 1 to 4094
|
|
IGMP Groups
|
2048
|
|
Max. No. of VLAN
|
64
|
|
Transmission Mode
|
Store and Forward (full/half duplex mode)
|
|
Exchange Property
|
Delay time: < 7μs
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
|
|
Serial Interface
|
|
Ports
|
2x RS485/422/232
|
|
Signals
|
RS-232: a:TXD,b:RXD,c:Na,d:Na,e:GND
RS-422: a:T+, b:T-, c:R+,d:R-, e:GND
RS-485: :a: Na, b: Na, c:D+,d:D-, e:GND
|
|
Baud rate
|
2400-115200bps
|
|
Terminal
|
5-Pin Terminal
|
|
Load Capacity
|
RS-485/422 supports 128 points polling environment
|
|
Movement
|
RS-485 adopts automatic data flow control technology
|
|
Interface Protection
|
RS-232 15KV static protection
Isolation voltage 2KV, electrostatic protection 15KV
|
|
Packing List
|
|
Device
|
1x Industrial Serial Ethernet Switch
|
|
Cable
|
1xDB9 female to RJ45
|
|

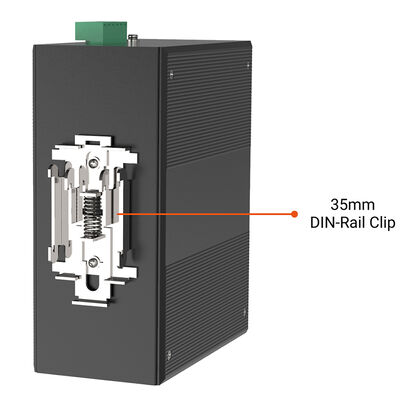

Installation Kit
|
1x DIN-Rail Clip
2x Wall-Mount Kits
|
|
Documentation
|
1 x Quick installation guide
1 x Warranty card
1x Product notice
|
|
Physical Features
|
|
Housing
|
Aluminum case
|
|
IP Rating
|
IP40
|
|
Dimension
|
138mm x 108mm x 49mm (L x W x H)
|
|
Weight
|
680g
|
|
Operating Temperature
|
-40℃~75℃ (-40 to 167 ℉)
|
|
Operating Humidity
|
5%~90% (non-condensing)
|
|
Storage Temperature
|
-40℃~85℃ (-40 to 185 ℉)
|
|
MTBF
|
1,043,909 hours @ Telcordia SR-332 Standard
|
|
Heat Dissipation
|
34 BTU/h
|
|
Cooling
|
Passive Cooling, Fanless Design
|
|
Noise Level
|
0 dBA
|
|
Power Consumption
|
10 Watts Max
|
|

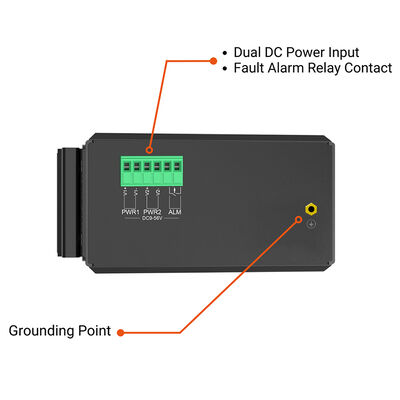

Power Inputs
|
2
|
|
Input Voltage
|
48-56VDC, Redundant dual inputs
|
|
POE Standard
|
Single PoE output power: 15.4W/30W(port 1~8), 240W max POE budget
|
|
Connector
|
1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
|
|
Protection
|
Overload Current Protection, Reverse Polarity Protection
|
|
Safety
|
IEC/EN 62368-1
|
|
EMI
|
EN55032 Class A, CISPR 32 FCC Part 15B Class A
|
|
EMS
|
EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5
(Surge) EN61000-4-6 (CS) EN61000-4-8 (PFMF)
|
|
Shock
|
IEC 60068-2-27
|
|
Free Fall
|
IEC 60068-2-32
|
|
Vibration
|
IEC 60068-2-6
|
|
Environmental
|
RoHS
|
|
Warranty
|
3 Years
|
Software Features
|
Management Features
|
|
Redundancy Protocols
|
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
|
|
Multicast Support
|
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
|
|
VLAN
|
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN
|
|
Time Management
|
SNTP
|
|
QOS
|
Flow-based redirection
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
|
ACL
|
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|
|
Diagnostic Maintenance
|
Support port mirroring, Syslog, Ping
|
|
Management Function
|
Support CLI,WEB,SNMPv1/v2/v3,Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
|
|
Alarm Management
|
Support 1 way relay alarm output, RMON, TRAP
|
|
Security
|
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|
|
Layer 2+ Features
|
IPv4/IPv6 Management, Static Route
|
LED Indicator
|
LED
|
State
|
Description
|
|
PWR
(P1&P2)
|
On
|
Power is being supplied
|
|
Off
|
Power is not being Supplied
|
|
RUN
|
Blinking
|
The system is running well
|
|
Link/ACT
(1-10)
|
On
|
Port connection is active
|
|
Blinking
|
Data transmitted
|
|
Off
|
Port connection is not active
|
|
ALM
|
On
|
Has alarm information
|
|
Off
|
No alarm information
|
DIP
|
DIP Switch
|
State
|
Description
|
|
#1
|
On
|
RSTP Disabled
|
|
Off
|
RSTP Enable(Default)
|
|
#2
|
On
|
Port VLAN Enable
|
|
Off
|
Port VLAN Disable(Default)
|
|
#3
|
On
|
SFP Port is 100M
|
|
Off
|
SFP Port 100/1000M(Default)
|
|
#4
|
|
Function Reserve
|
NOTE:
1. RSTP switches to the ON position, which indicates RSTP is in disabled status.
2. VLAN switches to the ON position, indicating VLAN is enabled. All LAN ports can only communicate with the SFP uplinks when this option is enabled.
3. To take effect the DIP Switch function while the ethernet switch is in operation, there is a need to reboot the Ethernet switch after tuning the DIP switch.
Application
1. Industrial Automation & Control Systems
Ideal for connecting serial-based PLCs, HMIs, and controllers to Ethernet and fiber backbones in factories and process plants.
2. Power, Energy & SCADA Networks
Enables remote monitoring and control of meters, RTUs, and substations with secure Ethernet and serial data integration.
3. Transportation & Infrastructure
Suitable for traffic systems, rail signaling, and roadside cabinets requiring PoE-powered devices and serial communication.
4. Oil & Gas, Water & Utilities
Reliable solution for harsh environments where legacy serial equipment must coexist with modern IP networks.
5. Industrial IoT & Edge Integration
Bridges traditional field devices into IoT platforms using Ethernet, fiber, and standardized industrial protocols.
