Olycom 5 Port Industrial Managed PoE Switch
Overview
1. The IM-WP054GM Industrial Web-Managed PoE Switch is a compact yet powerful Gigabit Ethernet solution designed for industrial networks that require both intelligent management and reliable PoE power delivery.

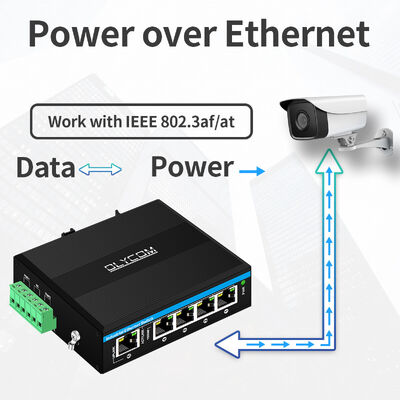

2. Featuring 5 Gigabit Ethernet ports, including 4 IEEE 802.3af/at PoE ports, it enables data and power transmission over a single Ethernet cable to devices such as IP cameras, wireless access points, and industrial terminals.
3. Designed for demanding environments, IM-WP054GM supports active 48V PoE with a total power budget of up to 120W, ensuring stable power supply for multiple powered devices over distances of up to 100 meters. Its industrial-grade hardware design, combined with a wide operating temperature range of -40°C to 75°C, makes it suitable for both indoor and outdoor industrial deployments.
4. With an intuitive web-based management interface, this switch offers advanced network control and monitoring, helping system integrators and operators build secure, efficient, and scalable industrial Ethernet networks.
5. It is an ideal solution for IP Surveillance, wind, electricity, subway PIS, assembly automation, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
Specification
|
Product Name
|
10/100/1000Mbps Industrial Web Managed PoE Ethernet Switch(5TP)
|
|
Model No.
|
IM-WP054GM
|
|
Port
|
5*10/100/1000M UTP RJ45
1x6-PIN Power Terminal Block
|
|
Protocol
|
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
IEEE 802.3af 15.4W(PoE)
IEEE 802.3at 30W(PoE+)
|
|
Switching Features
|
Transmission mode: Storage and forward
Forwarding delay: <10us
System bandwidth: 10Gbps(non-traffic jam)
Forwarding rate: 14.88Mpps
MAC: 2K
Packet buffer size: 1.75Mb
|
|
Network Media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LEDs
|
Power, Network
PWR: Power
Copper orange: Speed indicator
On:Working speed is 1000Mbps
Off:Disconnected or working speed is 10/100Mbps
Copper green: Link/Act indicator
On:transmission is normal
Blinking: in transmission
Off:transmission is NOT normal
|
|
Power Supply
|
Redundant input voltage: DC48V
Reverse connection: support
|
|
PoE
|
Wiring: 1/2 (V+), 3/6 (V-)
Single PoE output power: 15.4W/30W (port 1~4)
Total PoE budget: 120W
PoE distance: 100-meter
PoE output voltage: DC48V, active PoE
|
|
Environment
|
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Mechanical information
|
Shell: Corrugated metal shell, IP40 grade level
Dimension: 114*93*35mm

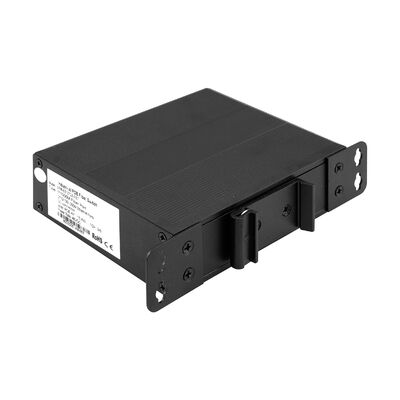

Mounting method: Din-rail/Wall mounting
Weight: 0.35Kg/0.45Kg(Net/Gross)
|
|
Warranty
|
3 years, lifetime technical support
|
Key Features
Managed Industrial PoE Switching
Provides 5× 10/100/1000Mbps auto-sensing RJ45 ports, with PoE/PoE+ support on ports 1–4, automatically detecting connected devices and delivering up to 30W per port in compliance with IEEE 802.3af/at standards.
Advanced Web Management Capabilities
Supports a comprehensive set of Layer 2 management features, including VLAN, QoS, IGMP Snooping, Link Aggregation, RSTP, Loop Protection, Port Mirroring, Bandwidth Control, and SNMP, allowing precise traffic control and network optimization.
High Reliability for Harsh Environments
Built with an IP40-rated metal enclosure, industrial EMC protection, and 6KV Ethernet surge protection, the switch ensures stable operation in electrically noisy and outdoor environments.
Industrial Power Design
Uses redundant DC48V power input with reverse polarity protection, aligning with common industrial power systems and enhancing network uptime in critical applications.
Compact & Flexible Installation
The compact form factor supports DIN-rail or wall mounting, making it easy to install in control cabinets, roadside enclosures, or space-constrained industrial panels.
WEB UI
Application
- IP Surveillance and Security Systems
- Factory Automation & Industrial Control Networks
- Power Utilities and SCADA Systems
- Railway, Metro, and Subway PIS Systems
- Intelligent Transportation Systems (ITS)
- Wind Power and Energy Infrastructure
- Water Treatment and Sewage Monitoring
- Outdoor Wireless Access and Edge Networking
Packing Information
1pc switch
1pc user manual
Accessories(DIN rail bracket, power supply, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
Ordering Information
|
IM-WS050GE
|
Industrial Ethernet Switch
5*100/1000M, Unmanaged, Non-PoE, DC12V~DC52V dual input
Ideal in vehicle network or industrial automation system
|
|
IM-WP054GE
|
Industrial PoE Switch
5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget
DC48V~DC52V dual input
Ideal in CCTV security system
|
|
IM-WP054BGE
|
Industrial PoE Switch
5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget
DC12V~DC48V dual input, With internal power booster
Ideal in vehicle network or solar power system
|
|
IM-WPD054GE
|
Industrial PoE Switch
5*100/1000M, Unmanaged, 1*PD port(30W/60W/90W)+PoE af/at for port 1~4, No need to use extra power supply
Ideal in CCTV security system
|
|
IM-WS050GM
|
Industrial Web Managed Switch
5*100M/1000M, Web Managed(QoS, VLAN etc.), Non-PoE
DC12V~DC52V dual input
Ideal in industrial automation systems
|
|
IM-WP054GM
|
Industrial Web Managed PoE Switch
5*100M/1000M, Web Managed(QoS, VLAN etc.)
PoE af/at for port 1~4, 120W budget, DC48V~DC52V dual input
Ideal in industrial automation systems
|
