1G Based SFP Fiber Optic Switch 8 Port
Overview of 8 Port Gigabit Switch

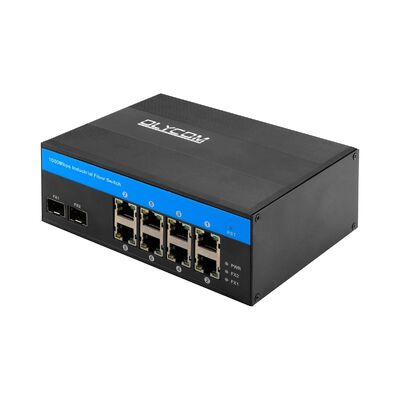

1. The IM-FS280GE Industrial Gigabit Fiber Switch is a rugged, plug-and-play Ethernet solution designed for reliable operation in harsh industrial environments.
2. Featuring 2 Gigabit SFP fiber ports and 8 Gigabit Ethernet copper ports, it enables seamless integration of long-distance fiber links with high-density edge device connectivity.
3. Built on an industrial-grade switching architecture with a store-and-forward mechanism, IM-FS280GE ensures stable data transmission and consistent performance under heavy network loads. Its wide-range redundant DC power input (DC12V–DC52V) and reverse-polarity protection enhance system reliability in mission-critical deployments.
4. With a wide operating temperature range from -40°C to 75°C, reinforced metal housing, and industrial EMC protection, this switch is well suited for outdoor cabinets, factory floors, and unattended installations where long-term stability is essential.
Technical Data of Industrial Fiber Switch
|
Product Name
|
10/100/1000Mbps Industrial Fiber Switch(2F+8TP)
|
|
Model No.
|
IM-FS280GE
|
|
Port
|
2x1000M SFP Fiber
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
1x6-PIN Power Terminal Block
|
|
Protocol
|
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
|
|
Switching Features
|
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 20Gbps (non-traffic jam)
Forwarding rate: 14.88Mmps
MAC: 4K
Packet buffer size: 1.75Mb
|
|
Network Media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LEDs
|
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1, FX2
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On:PoE is working
Off:PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On:transmission speed is 1000Mbps
Blinking: in transmission
Off:Disconnected or working speed is 10/100Mbps
|
|
Power Consumption
|
Full loading without PoE≤5W
|
|
Power Supply
|
Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V
Reverse connection: support
|
|
Environment
|
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Mechanical information
|
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm

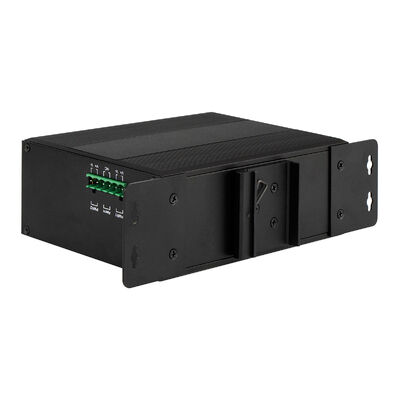

Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
|
Warranty
|
3 years, lifetime technical support
|
3. Application
IM-FS280GE is widely used in industrial and infrastructure networks where reliability, distance, and environmental resilience are critical, including:
- IP Surveillance & Security Systems
- Power Utilities and SCADA Networks
- Railway, Metro, and Transportation Systems
- Wind Power and Energy Infrastructure
- Factory Automation & Assembly Lines
- Intelligent Transportation Systems (ITS)
- Water Treatment and Sewage Monitoring
- Military and Harsh Industrial Environments
4. Key Features
Gigabit Fiber & Ethernet Connectivity
Equipped with 2× 1000Mbps SFP fiber slots and 8× 10/100/1000Mbps auto-sensing RJ45 ports, the switch supports flexible network topologies, enabling both long-distance fiber transmission and high-speed copper access at the edge.
Industrial-Grade Reliability
Designed for continuous operation in extreme environments, IM-FS280GE supports -40°C to 75°C operation, features a corrugated metal enclosure, and provides 6KV Ethernet surge protection, making it ideal for industrial and outdoor applications.
Stable Performance & Efficient Switching
The non-blocking switching fabric, low forwarding latency, and ample packet buffering ensure smooth data flow for bandwidth-intensive applications such as video streaming and real-time monitoring.
Flexible Power Input for Industrial Systems
Supports redundant DC power inputs commonly used in industrial control systems (12V / 24V / 48V), improving network uptime and simplifying power integration.
Easy Installation & Compliance
DIN-rail or wall mounting options allow fast deployment in control cabinets. The device complies with CE and FCC standards, meeting global industrial networking requirements.
5. Accessory
|
Industrial Optical Module
|
|
OSPL1G05D
|
1000BASE-SX
|
|
OSPL1G06D
|
1000BASE-SX(1310nm)
|
|
OSPL1G20D
|
1000BASE-LX
|
|
OSPL1G40D
|
1000BASE-EX
|
|
OSBL1G20D-35
|
1000BASE-BX-U(TX 1310 RX1550)
|
|
OSBL1G20D-53
|
1000BASE-BX-D(TX 1550 RX1310)
|
|
Industrial DIN Power Supply
|
|
IM-DAC220/DC12V1.67A
|
AC220V to DC12V1.67A, -30℃～70℃
|
|
IM-DAC220/DC24V1A
|
AC220V to DC24V1A, -30℃～70℃
|
FAQ
1, What chip is it based?
Olycom: Realtek
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Is it managed?
Olycom: No
Its just simple plug-and-play, but we have a managed model(IM-FS280GM)
