Olycom Gigabit Ethernet Fiber Optic Switch
Key Features
1. Gigabit Ethernet with Fiber Uplink
Multiple auto-sensing 10/100/1000Mbps RJ45 ports provide flexible device connectivity, while a 1000Mbps SFP slot supports long-distance fiber transmission using multimode or single-mode modules.
2. Long-Distance & Noise-Resistant Transmission
Fiber connectivity enables stable communication over distances up to tens of kilometers, making the switch ideal for electrically noisy or geographically dispersed installations.
3. Industrial-Grade Reliability
Designed for extreme conditions, the switch operates reliably from -40°C to +75°C and features 6kV Ethernet surge protection, ensuring stable performance in outdoor and industrial environments.
4. Stable Switching Performance
A store-and-forward switching architecture with Gigabit throughput ensures smooth data forwarding for control, monitoring, and automation traffic.
5. Wide Voltage Power Input
Supports a broad DC power input range, including reverse polarity protection, allowing flexible integration into industrial power systems.
6. Compact, Fanless Design
Fanless natural cooling and a compact IP40-rated metal housing reduce maintenance requirements and enable silent operation in control cabinets.
7. Easy Installation & Integration

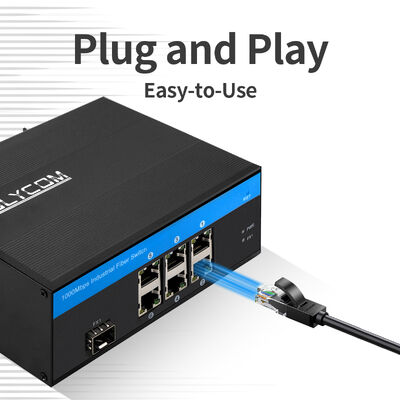

Auto MDI/MDIX simplifies wiring, while DIN-rail or wall mounting allows quick installation in industrial panels and field enclosures.
Specification of Industrial Network Switch
|
Product Name
|
10/100/1000Mbps Industrial Fiber Switch (1F+6TP)
|
|
Model No.
|
IM-FS160GE
|
|
Port
|
1x 1000Mpbs SFP ports
SM: 1310nm/1550nm, 20Km
1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500m
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Switching features
|
Transmission mode: storage and forward
System bandwidth: 14Gbps (non-traffic jam)
Forwarding rate: 10.416Mmps
MAC: 4K
Packet buffer size: 1.75Mb
|
|
Network media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
|
|
LEDs
|
Power, network, fiber
|
|
Power supply
|
Input voltage: DC 12-52V
No-load power: 5W
Reverse connection: support
|
|
Environment
|
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
|
|
Safety
|
CE Mark, commercial
CE/LVD EN60950
|
|
Mechanical information
|
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 158 x 115x 60mm

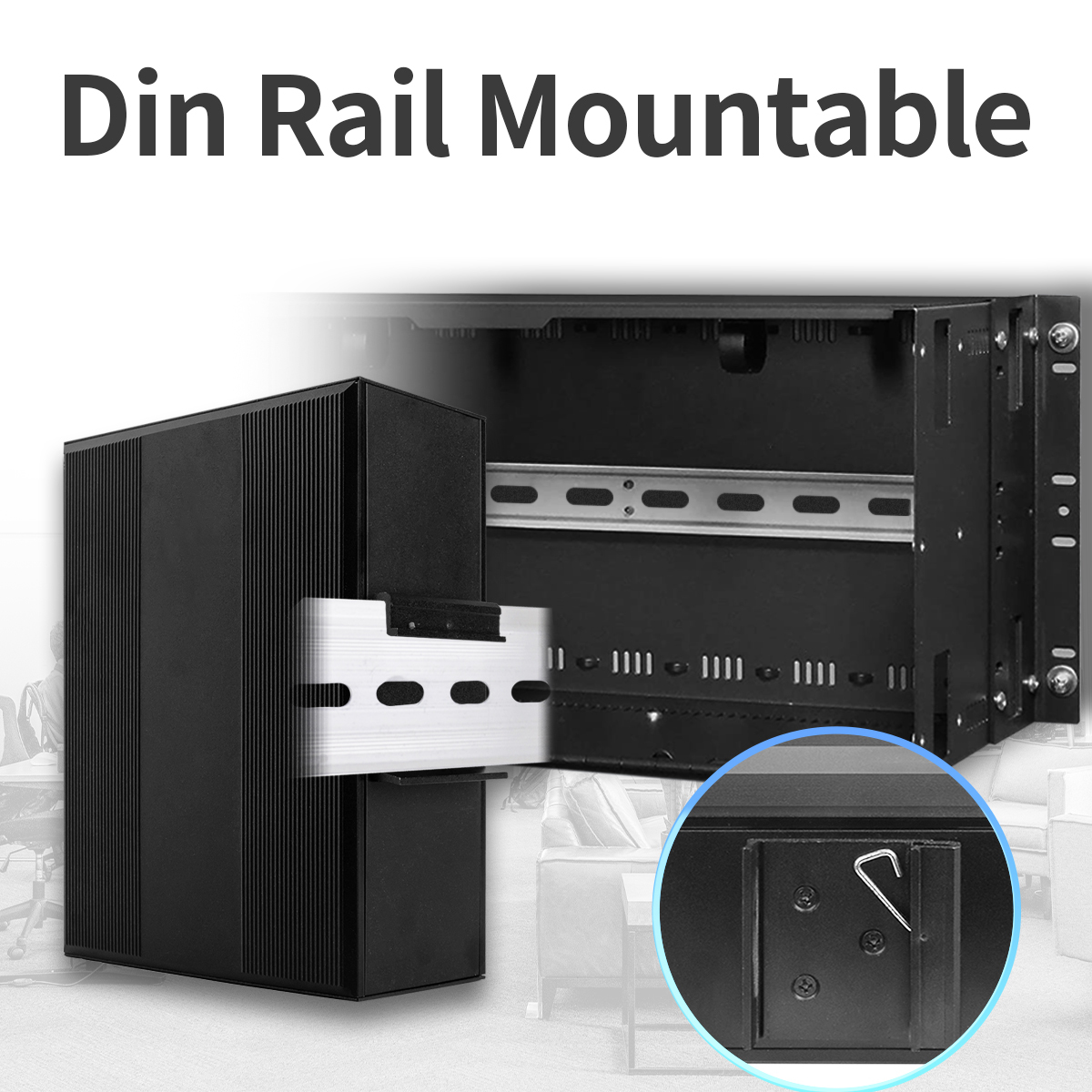

Mounting method: Din-rail/Wall mounting
|
|
Warranty
|
Replacement within 1 year; 3 years repairing
|
Application
1. Industrial Automation Networks
Ideal for connecting PLCs, HMIs, sensors, and controllers within factory and process automation systems.
2. Transportation & Traffic Systems
Suitable for roadside cabinets, rail signaling, and traffic control networks requiring rugged fiber connectivity.
3. Energy & Utility Infrastructure
Supports substations, wind farms, and utility monitoring systems with stable Ethernet and fiber communication.
4. Security & Monitoring Systems
Reliable backbone or access switch for IP surveillance and monitoring equipment deployed in harsh environments.
5. Outdoor & Remote Installations
Designed for long-distance, interference-resistant networking in outdoor industrial and infrastructure applications.
Packing Information
-
1pc switch
-
1pc user manual
Remark
Accessories(DIN rail bracket, power supply, network cable etc.)are NOT included in the box
Please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 158*115*60mm
Inner box size: 253*208*80mm
Product weight: 0.75Kg
Packing weight: 0.9Kg
Master box size: 555*400*410mm
Packing quantity: 20Pcs
Packing weight: 20Kg
Overview

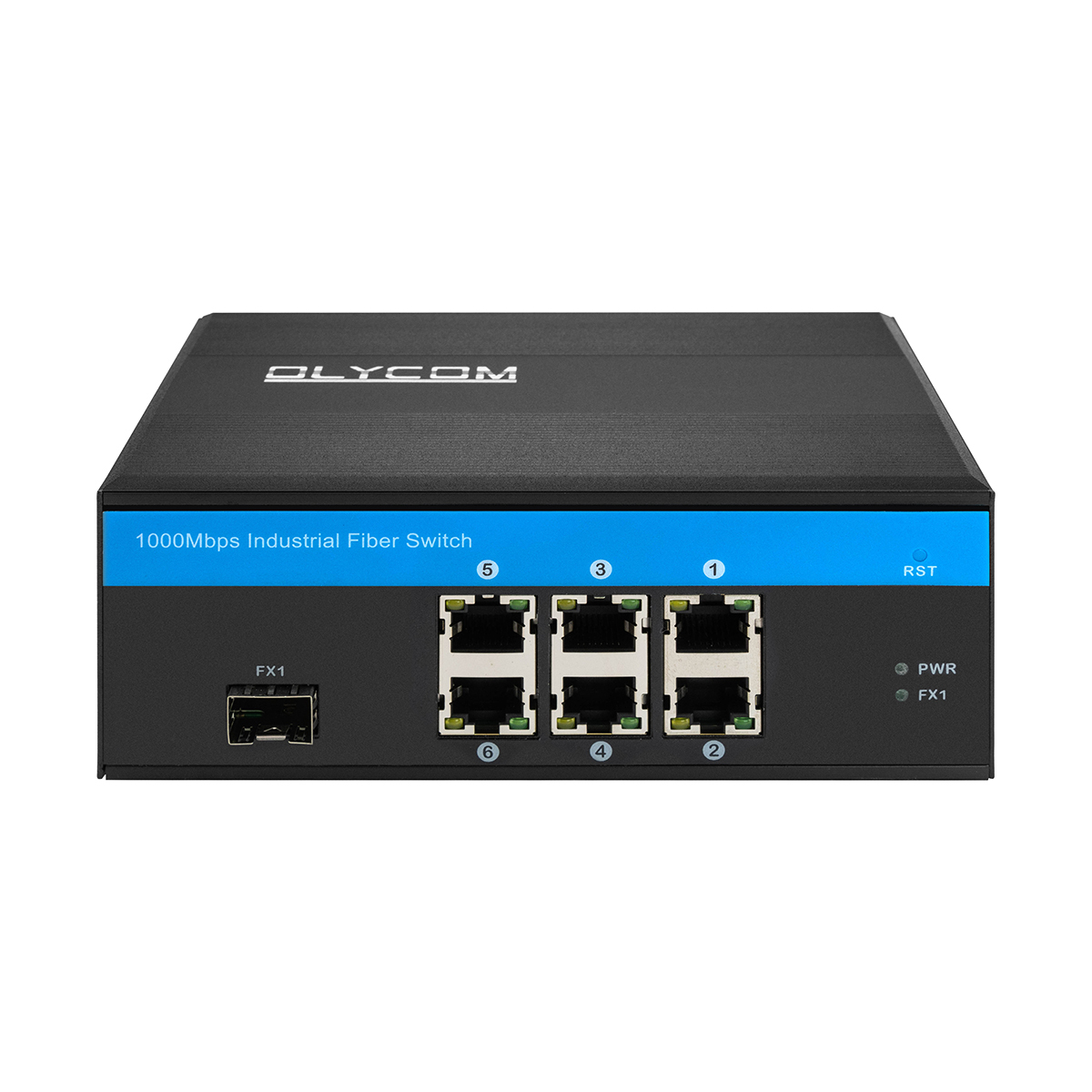

The Olycom IM-FS160GE is a compact industrial Gigabit fiber Ethernet switch designed for reliable network extension in harsh environments.
Featuring multiple Gigabit copper ports and a Gigabit SFP fiber uplink, it enables seamless integration of industrial Ethernet devices while extending communication distance far beyond the limits of copper cabling.
Engineered with an industrial-grade metal enclosure, wide operating temperature range from -40°C to +75°C, and flexible DIN-rail or wall mounting, the IM-FS160GE delivers stable, continuous performance for automation systems, transportation networks, and outdoor infrastructure where reliability is critical.
Accessory
|
Industrial Optical Module
|
|
OSPL1G05D
|
1000BASE-SX
|
|
OSPL1G06D
|
1000BASE-SX(1310nm)
|
|
OSPL1G20D
|
1000BASE-LX
|
|
OSPL1G40D
|
1000BASE-EX
|
|
OSBL1G20D-35
|
1000BASE-BX-U(TX 1310 RX1550)
|
|
OSBL1G20D-53
|
1000BASE-BX-D(TX 1550 RX1310)
|
|
Industrial DIN Power Supply
|
|
IM-DAC220/DC12V1.67A
|
AC220V to DC12V1.67A, -30℃～70℃
|
|
IM-DAC220/DC24V1A
|
AC220V to DC24V1A, -30℃～70℃
|
