2.5G Managed PoE Fiber Bypass Switch 8 Port
1. Product Overview
The IM-FBP288GW is a managed industrial-grade PoE fiber bypass switch designed for mission-critical optical communication and power delivery systems.
It integrates 8 × 10/100/1000Mbps PoE RJ45 ports, 2 × 100/1000/2500Mbps SFP fiber uplink ports, and 2 × LC fiber bypass ports, enabling uninterrupted optical transmission even in the event of power loss or device failure.
Supporting IEEE 802.3af/at PoE with a total power budget up to 240W, the switch ensures reliable power delivery to IP cameras, wireless access points, and industrial edge devices.
With its industrial IP40 metal enclosure, DIN-rail or wall mounting, and -40°C to +75°C operating temperature, the IM-FBP288GW is purpose-built for harsh environments where network availability and optical path protection are critical.
2. Specification
|
Product Name
|
10/100/1000Mbps Managed Industrial PoE Fiber Bypass Switch(2F+8TP)
|
|
Model No.
|
IM-FBP288GW
|
|
Port
|
2*100/1000/2500Mpbs SFP ports
2* LC bypass ports(SM/MM)
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
8*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Protocol
|
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
IEEE802.3af
IEEE802.3at
|
|
Switching Features
|
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 26Gbps(non-traffic jam)
Forwarding rate: 19.344Mpps
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
|
Network Media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LEDs
|
Power, network, fiber
PWR: Power
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1/FX2
|
|
Power Supply
|
Input voltage: 48V(max 52V)
PoE output voltage: 48V
Single PoE output power: 30W(port 1~8)
Max budget: 240W
Reverse connection: support
|
|
PoE Wiring
|
PoE af/at: 1/2(V+), 3/6(V-)
|
|
Environment
|
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Mechanical information
|
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm
Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
|
Warranty
|
3 years, lifetime technical support
|
|
Fiber Bypass
|
|
Category
|
Unit
|
Specification
|
|
Wavelength range
|
nm
|
850±40/1300±40
|
1260~1650
|
|
Test wavelength
|
nm
|
850/1300
|
1310/1550
|
|
Insert loss
|
dB
|
Typ: 0.6 Max: 1.0
|
Typ: 0.6 Max: 1.0
|
|
Return loss
|
dB
|
MM≥30 SM≥50
|
|
Channel crosstalk
|
dB
|
MM≥35 SM≥55
|
|
Polarization loss
|
dB
|
≤0.05
|
|
Wavelength loss
|
dB
|
≤0.05
|
|
Temperature loss
|
dB
|
≤0.05
|
|
Repeat-ability
|
dB
|
≤0.05
|
|
Operating voltage
|
v
|
3.3V-5V
|
|
Service life
|
times
|
≥100000000
|
|
Switching time
|
ms
|
≤10
|
|
Transmission optical power
|
mw
|
≤500
|
|
Operating temperature
|
ºc
|
-20~+70
|
|
Storage temperature
|
ºc
|
-40~+85
|
As an indispensable part of optical communication&protection system, the fiber bypass is highly reliable and stable for different optical path needs such as
-
Metropolitan area network (MAN)
-
Dynamic configuration of add/drop multiplexing
-
System monitoring
-
Laboratory research and development
Meantime, the fiber pass switch characterizes
-
Low Insertion Loss
-
Wide Wavelength Range
-
Low Channel Crosstalk
3. WEB Info
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
4. Application
- Metropolitan Area Networks (MAN) – Ensures uninterrupted fiber transmission when inline devices fail or require maintenance.
- CCTV & Security Surveillance Systems – Powers IP cameras via PoE while protecting fiber links in outdoor and roadside deployments.
- Industrial Automation & Monitoring – Maintains continuous communication in factories, substations, and industrial control networks.
- Optical Network Monitoring Systems – Ideal for inserting monitoring, analysis, or protection equipment without risking traffic interruption.
- Laboratory & R&D Environments – Provides stable, repeatable fiber switching for optical testing and system validation.
- Transportation & Smart City Infrastructure – Supports traffic monitoring, railway communication, and city-wide surveillance networks.
5. Packing List
-
1pc switch
-
1pc user manual
-
1pc console cable
Remark
Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 15.8*11.5*6cm
Inner box size: 25.3*20.8*8cm
Product weight: 0.75Kg
Packing weight: 0.9Kg
Master box size: 55.5*40*41cm
Packing quantity: 20Pcs
Packing weight: 20Kg
6. FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.

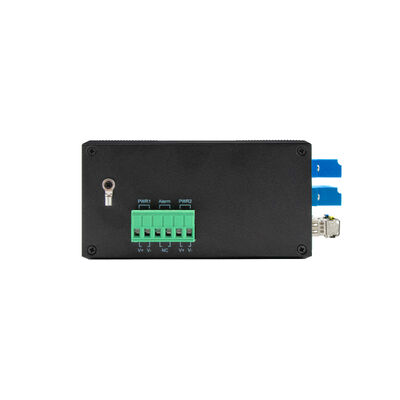

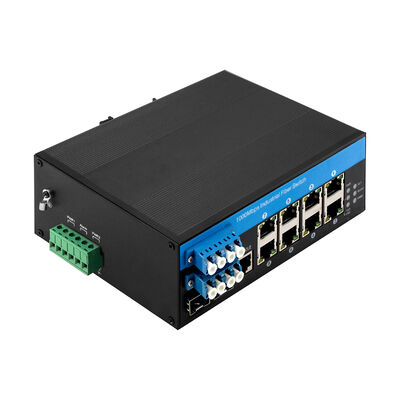

7. Photos
