Rugged Managed Ethernet Switch Vitesse chipset 2 SFP 8 RJ45 industrial ethernet switch with SNMP management
Key Features of Rugged Managed Ethernet Switch
1. Gigabit Hybrid Fiber and Copper Connectivity
Provides 8 × 10/100/1000Base-T RJ45 ports and 2 × Gigabit SFP fiber ports for flexible copper-fiber industrial network deployment.

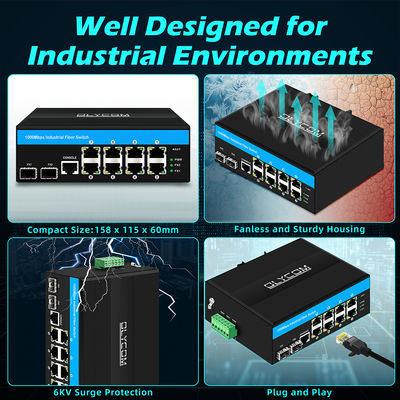

2. Industrial-Grade Rugged Design
Designed for harsh environments with -40°C to 75°C operating temperature, IP40 protection, 6KV surge protection, and 12–52V DC wide voltage input.
3. Layer 2 Redundancy and Network Resilience
Supports STP/RSTP/MSTP and ERPS (G.8032) ring protection, along with LACP link aggregation for enhanced network reliability.
4. Advanced Traffic Management Features
Supports QoS, VLAN, storm suppression, and IGMP Snooping to optimize traffic control and service segmentation.
5. Enhanced Security and Network Management
Supports 802.1X authentication, ACL, RADIUS, SSH/SSL, SNMP, and CLI/Web management for secure access and efficient maintenance.
6. Deployment and Maintenance Optimization
Features cable diagnostics, Energy Efficient Ethernet, redundant firmware upgrade, and DIN-rail mounting for simplified industrial deployment.
Specification of Industrial Ethernet Switch
|
Product Name
|
10/100/1000Mbps Managed Industrial Fiber Switch (2F+8TP)
|
|
Model No.
|
IM-FS280GW
|
|

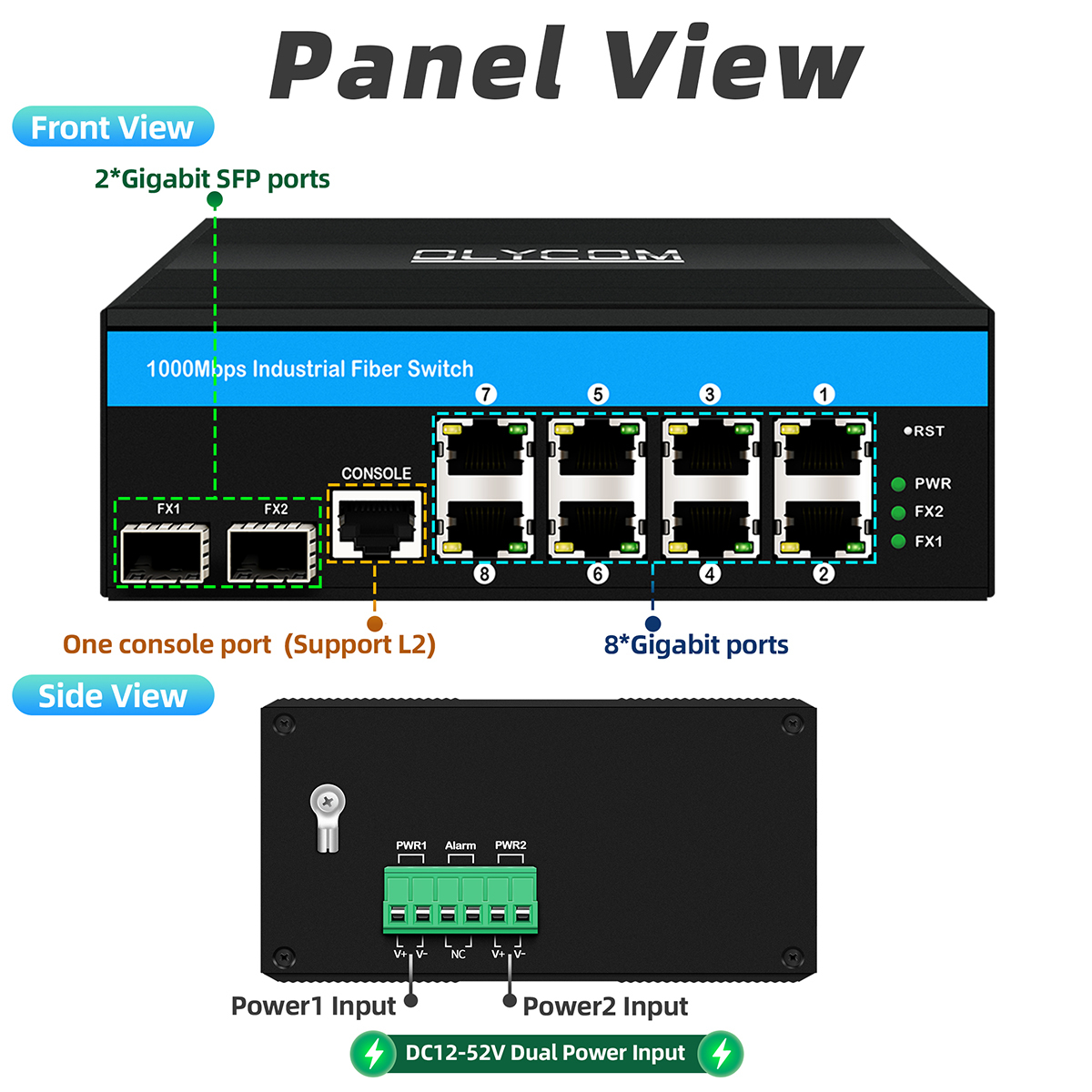

Port
|
2 x 1000Mpbs SFP port
SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Standard
|
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
|
|
VLAND ID
|
4096
|
|
Jumbo Frame
|
9.6KB
|
|
MAC Address Table Size
|
8K
|
|
Switching features
|
Transmission mode:storage and forward
System bandwidth:58Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
|
|
Network media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
|
LEDs
|
Power, network, fiber
|
|
Power supply
|
Input voltage:DC 12-52V; No-load power:5W;
Reverse connection: support
|
|
Environment
|

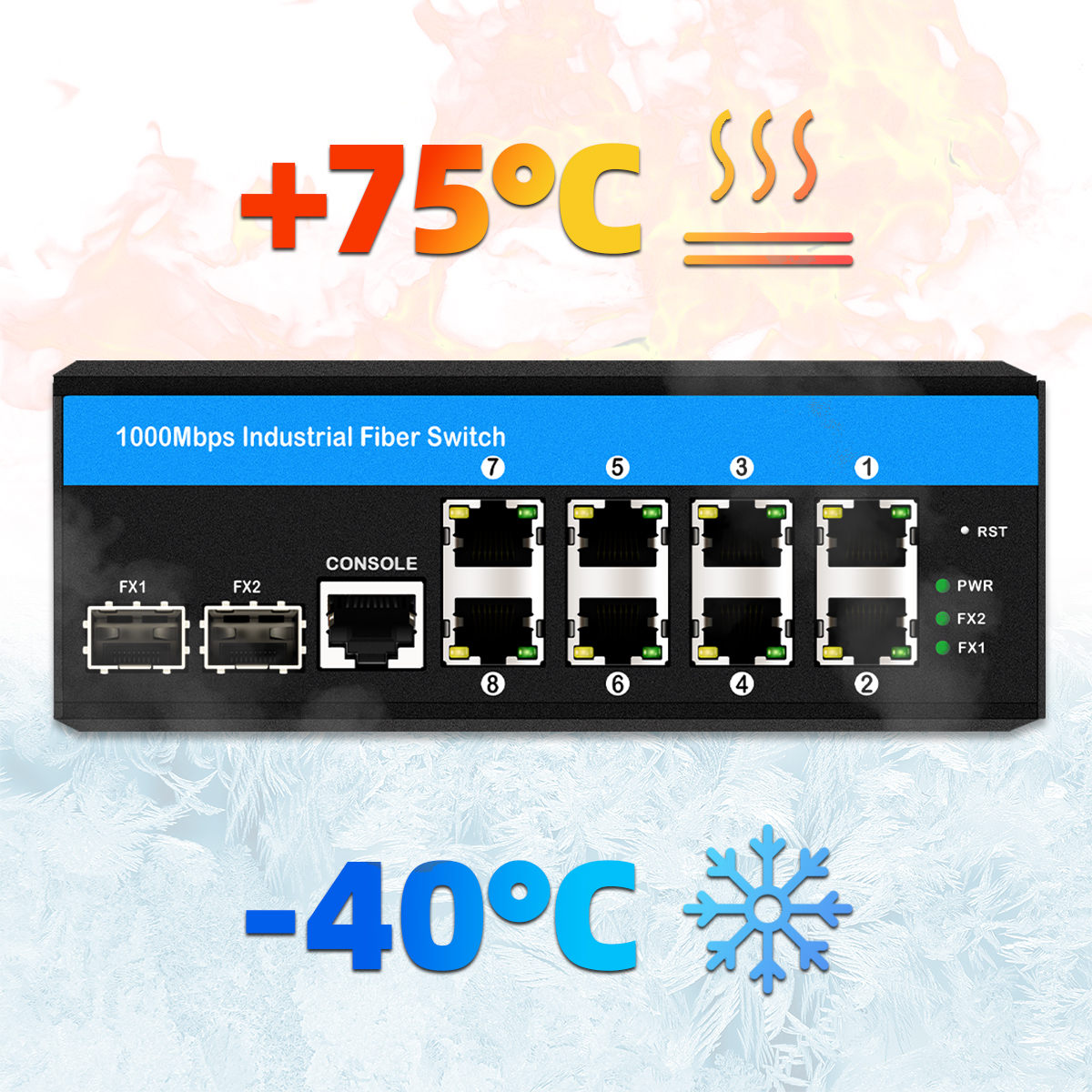

Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
|
|
Industry Standards
|
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
|
|
Safety
|
CE Mark ,commercial ; CE/LVD EN60950
|
|
Mechanical information
|
Shell:Corrugated metal shell; Safety class:IP40;
Dimension:158 x 114.8 x 60mm;
Mounting method:Din-rail mounting
|
|
Warranty
|
3 years
|
Application
1. Industrial Automation Networks
Designed for connecting PLCs, controllers, sensors, and field devices in industrial automation systems. With redundancy protocols, VLAN, and QoS support, it helps reduce network downtime risks while ensuring reliable transmission of critical control data.
2. Smart Manufacturing and Industrial Ethernet
Suitable for equipment interconnection, production cell networking, and industrial data acquisition. Gigabit access and traffic management features help address bandwidth bottlenecks, network congestion, and scalability challenges in connected factory environments.
3. Redundant Industrial Ring Networks
Ideal for high-availability industrial networks such as production lines, unmanned stations, and process control systems. STP/RSTP/MSTP and ERPS ring protection help minimize single-point failures and improve network continuity.
4. Video Surveillance and Security Networks
Applicable for industrial surveillance, transportation monitoring, and outdoor security systems. Fiber uplinks and Gigabit switching support reliable video transmission while helping solve long-distance communication and traffic management challenges.
5. Railway and Intelligent Transportation Systems
Suitable for trackside communications, traffic control cabinets, and roadside monitoring networks. Rugged industrial design with surge protection and EMI resistance helps improve network reliability in harsh field environments.
6. Power Utility and Energy Monitoring Networks
Well suited for substations, energy management systems, and distributed monitoring sites. Long-distance fiber connectivity and industrial-grade reliability support stable communications and help address network challenges in demanding power environments.

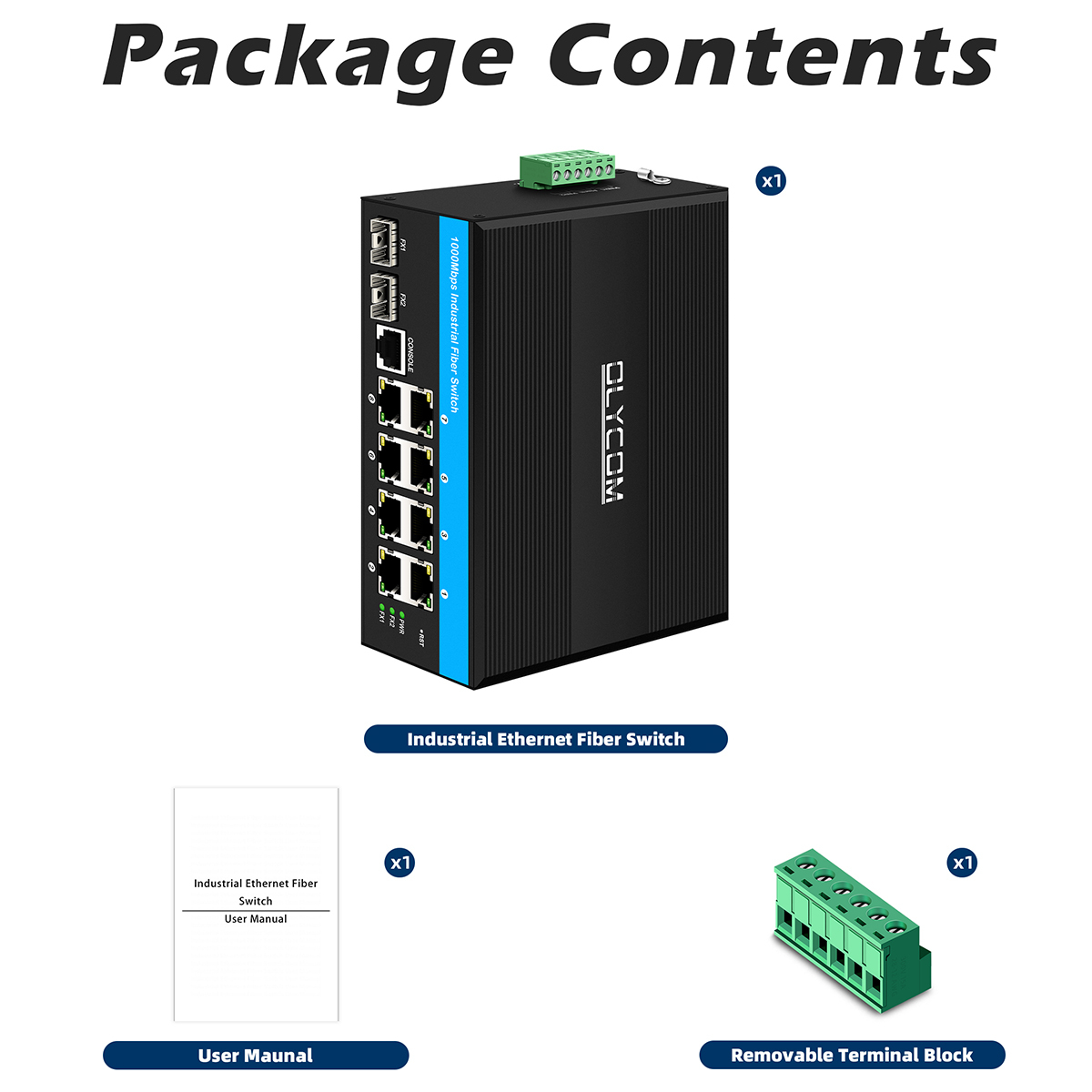

Packing box of Din rail switch:
| PACKING LIST |
CONTENT |
QTY |
UNIT |
| 10-port gigabit uplink industrial switch |
1 |
SET |
| User Manual |
1 |
PC |
| Warranty Card |
1 |
PC |
| Removable Terminal Block |
1 |
PC |
| Note: Industrial Switch does not include the power supply and SFP module. |
FAQ:
1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~52V.
All the models support redundant input.
2. What is the PoE budget?
A: The standard PoE output is 30W per port.
Take IM-FP288GW for example, it has 8 PoE ports, so the budget is 30W/port*8 ports=240W.
We can also support 60W output if it is required, please confirm with us.
3. How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.
4. Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.
5. If possible to write the label as I want?
A: Yes, please just send the content and format, and we will print a sample piece for your confirmation.
The label is usually attached to the side panel.
6. Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
