Industrial POE Switch with 2 SFP + 2 RJ45 Ports 6KV Surge Protection and DC48V Power Input for Outdoor Use

1 pc
MOQ
Negotiable
Price
Industrial POE Switch with 2 SFP + 2 RJ45 Ports 6KV Surge Protection and DC48V Power Input for Outdoor Use
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Power Supply: DC48-52V
PoE Output Power: 15.4W/30W
Product Name: Mini Fiber Converter
LEDs: Power, Network, Fiber
Surge Protection: ±6KV
OEM: Accept
Highlight:

2 SFP + 2 RJ45 Ports Industrial POE Switch

,

6KV Surge Protection Gigabit POE Switch

,

DC48V Power Input Unmanaged POE Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE
Model Number: IM-FP222GE
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description
Mini Fiber Converter Gigabit PoE Switch with 2 SFP + 2 RJ45 Ports
Compact industrial-grade fiber converter and PoE switch designed for outdoor deployment with DC48V power input, featuring robust construction and reliable performance in harsh environments.
Key Features

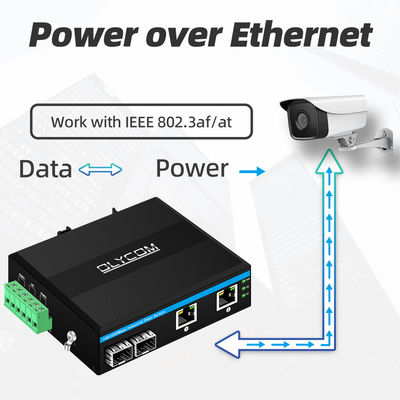

  • Power over Ethernet (PoE) support for IP cameras and wireless access points via Category 5 Ethernet cable
  • IEEE 802.3af/at PoE compliance for 1-2 RJ45 ports
  • 2x 10/100/1000Mbps auto-sensing RJ45 ports
  • 2x 100/1000Mbps SFP fiber ports
  • 6KV Ethernet surge protection for harsh outdoor environments
  • Auto MDI/MDIX support
  • Flow control: full duplex with IEEE 802.3x, half-duplex with Back pressure standard
  • Max power: 15.4W (af standard), 30W (at standard) per PoE port
  • Automatic PoE device detection
  • Store-and-forward switching mechanism

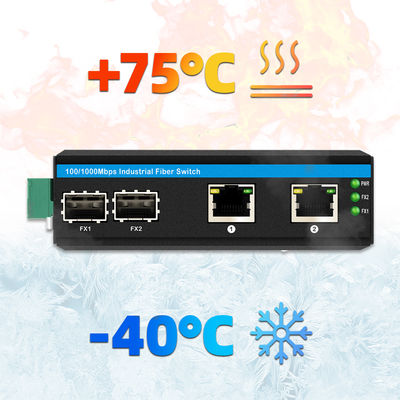

  • Operating temperature: -40°C to 75°C
Industrial POE Switch with 2 SFP + 2 RJ45 Ports 6KV Surge Protection and DC48V Power Input for Outdoor Use 0
Technical Specifications
Product Name 10/100/1000Mbps Industrial POE Fiber Switch (2F+2TP)
Model No. IM-FP222GE
Port Configuration 2x 100/1000Mbps SFP ports (SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40-120Km; MM: 1310nm, 2Km)
4x 10/100/1000M UTP RJ45 (MDI/MDIX auto-sensing)
Switching Features Transmission mode: Store and forward
System bandwidth: 40Gbps (non-blocking)
DRAM: 128M
Flash: 16M
Packet buffer: 4Mb
Network Media 10BASE-T: CAT3/4/5 UTP (≤100m)
100/1000BASE-TX: CAT5+ STP (≤100m)
SFP transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LED Indicators Power, Network, Fiber
Power Supply PoE input: 48V DC (max 52V)
Single PoE output: 15.4W (ports 1-4)
802.3at standards available upon request
Environmental Operating temperature: -40°C to 75°C
Storage temperature: -40°C to 85°C
Operating humidity: 10%-90% non-condensing
Storage humidity: 10%-95% non-condensing
Industry Standards EMI: FCC Part 15 Class A, EN 55022 Class A
EMS: EN 61000-4-2/3/4/5/6/8 Level 3
Traffic Control: NEMA-TS2
Vibration/Freefall/Shock: IEC 60068-2-6/32/27
Rail Traffic: EN 50121-4
Safety CE Mark, commercial CE/LVD EN60950
Mechanical Shell: Corrugated metal
Safety class: IP40
Dimensions: 113.8 x 93 x 34.9mm
Mounting: DIN-rail
Warranty 3 years

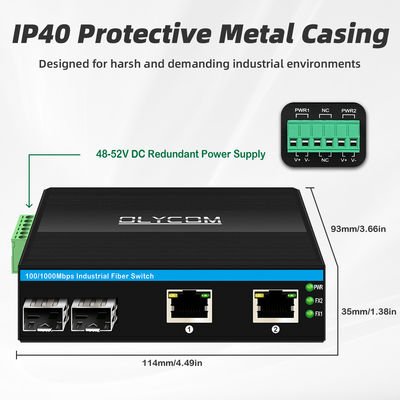

Product Dimensions
Industrial POE Switch with 2 SFP + 2 RJ45 Ports 6KV Surge Protection and DC48V Power Input for Outdoor Use 1
Packaging Information
Industrial POE Switch with 2 SFP + 2 RJ45 Ports 6KV Surge Protection and DC48V Power Input for Outdoor Use 2
  • Product packaged in ESD bag with PE foam protection and outer carton
  • Standard package includes main device, warranty card, and user manual
  • Single unit box dimensions: 23*16.5*5.8cm
  • Bulk packaging: 40 units per box (67*33*47cm)
Frequently Asked Questions
What is the input voltage?
For PoE switches: DC48V-52V. For non-PoE switches: DC12V-52V.
What is the power budget?
Each PoE port supports 15.4W/30W/60W output (default 30W, 60W available upon request). Total budget equals output watts per port multiplied by number of PoE ports.
Is it managed?
No, this series is unmanaged. Managed series options are available.
What installation method does it support?
Supports DIN rail and wall mounting. Custom mounting kits available upon request.
Does the fiber port support 100M speed?
Yes. For 100M models, compatible with 100M modules. For Gigabit models, fiber ports are 100M/1000M auto-adaptive, supporting both 155Mb/s and 1.25Gb/s modules.
