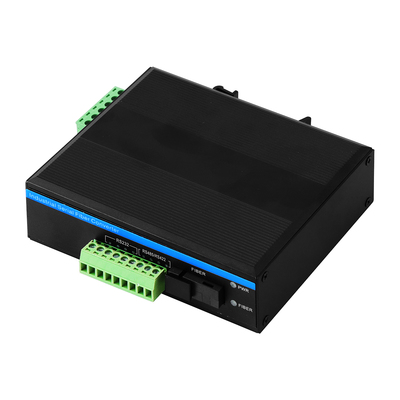

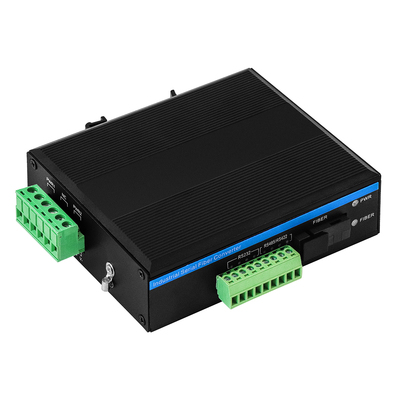

Industrial Optcial Converter RS485 RS422 RS485 Serial Data to Fiber Converter Fiber Optic Modem

1 pc
MOQ
Negotiable
Price
Industrial Optcial Converter RS485 RS422 RS485 Serial Data to Fiber Converter Fiber Optic Modem
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial Fiber Optic Modem
Fiber Connector: SC Standard, ST/FC Optional
Serial Connector: RS-232 ,RS-422, RS-485: Phoenix Terminal
Operating Temperature: -40°C To +70°C
Serial Distance: RS-232 Port 15m, RS-422, RS-485: 1500 Meters
Dimensions: 114*93*35mm
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: IM2101-RS232/RS422/RS485 V1
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description

Industrial Optcial Converter RS485 RS422 RS485 Serial Data

 to Fiber Converter Fiber Optic Modem


Introduction of Serial Data to Fiber Converter


IM2101-RS232/RS422/RS485  is a multi-function and economic RS-232/485/422 interface fiber optic product. It is the best choice to connect  RTU to HOST or SCADA controller. It uses optic fiber as transmission media, increasing the system. transmitting function. Communication equipments abstain menace effectively from lightning strike, surge, electromagnetism disturb in the working environment.


Specification of Fiber Optic Modem


Standard EIA /TIA RS232, RS-422, RS-485
Fiber Connector SC standard, ST/FC optional
Fiber Distance 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Connector RS-232 ,RS-422, RS-485: phoenix terminal
Serial Distance RS-232 port 15m, RS-422, RS-485: 1500 meters
Rate 0-120Kbps
Baud Rate 300 Baud to 115,200 Baud
RS-485 D+, D-, GND
RS-422 R+, R-, T+, T-, GND
RS-232 IN, OUT, GND
Power rate 2W, 12-52V
Static protection 15KV electric static discharge (ESD) protection
Surge protection 1500W/sec surge protection
Operation Temperature -40°C to +70°C
Storage Temperature -40°C to +85°C
Storage Humidity 5%~90% non-condescending
Dimensions 114*93*35mm
Weight 0.35kg/pc net weight


Application


Industrial Optcial Converter RS485 RS422 RS485 Serial Data to Fiber Converter Fiber Optic Modem 0


Industrial Optcial Converter RS485 RS422 RS485 Serial Data to Fiber Converter Fiber Optic Modem 1

Industrial Optcial Converter RS485 RS422 RS485 Serial Data to Fiber Converter Fiber Optic Modem 2


Industrial Optcial Converter RS485 RS422 RS485 Serial Data to Fiber Converter Fiber Optic Modem 3
