Gigabit 5 port industrial ethernet switch solar poe switch support 12V/24V/48V

Gigabit 5 port industrial ethernet switch solar poe switch support 12V/24V/48V

Key Features of 5 port solar poe switch:

•  Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
•  IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports

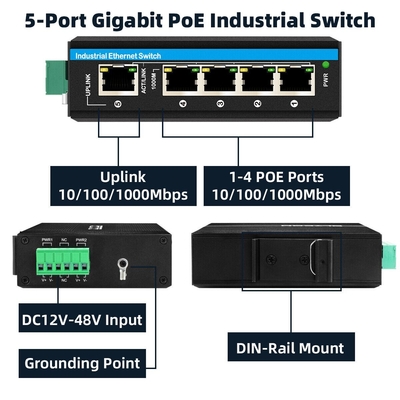

•  4 x 10/100/1000Mbps Auto-sensing RJ45 ports
•  1 x 10/100/1000Mbps uplink network port

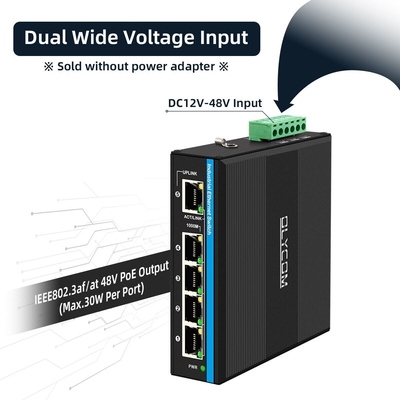

•  Built-in voltage booster for DC12-48V input which can be used for solar power/Trunk/VoIP system/CCTV security system

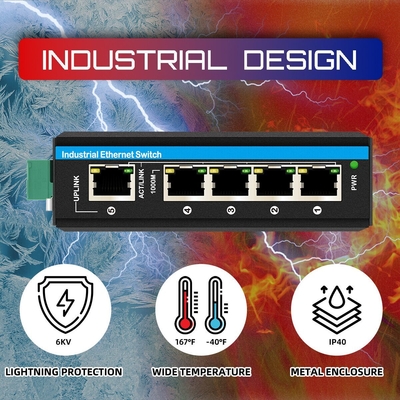

•  6 KV Ethernet surge protection, adapt to a harsh outdoor environment
•  Support Auto MDI/MDIX
•  Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
•  IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
•  Max power to15.4W under af standard, 30W under at standard to each PoE port
•  Detect the PoE models of electrical equipments.
•  Operating environment temperature:-40 ° ~75 ° c

Specification of voltage booster switch


Packing box of Din rail unmanaged switch:


• Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
• The standard packing usually contains a main device, a warranty card and a user manual.
• Packing box dimension for 1pc: 23*16.5*5.8cm
• 40pcs in a packing box of 67*33*47cm dimension.


FAQ:


1. Q: How does this outdoor PoE switch compare to other standard POE switches?

A: This outdoor PoE switch 5port Gigabit Ethernet switch has a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.

2. Q: Does this outdoor 5port PoE switch support 24VDC power output?

A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.

3. Q: Does it come with a power adapter?

A: The power adapter is sold separately. You could use one industrial din-rail power adapter or commercial grade. The voltage can be 12-48VDC. If need 120W power output, please use 48V 2.5A or 24V 5A power supply.

4. Q: What's the PoE Pin Assignment of this outdoor 5 Ports POE solar Switch?

A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).

5. Q: Can i use it with one Non-PoE devices?

A: Yes, sure. If one Non-PoE devices is connected with this 5port PoE solar switch, it will provide data only, and don't provide power any more.
