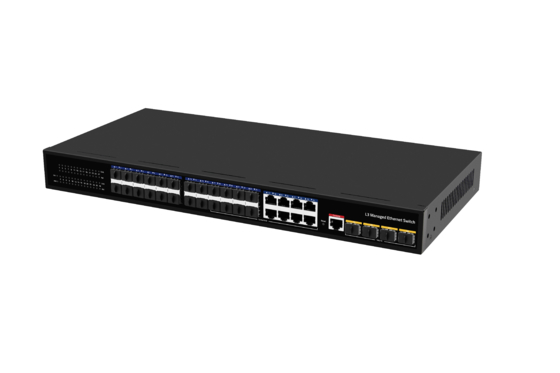

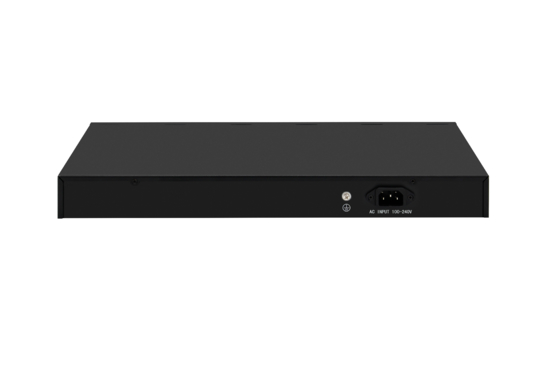

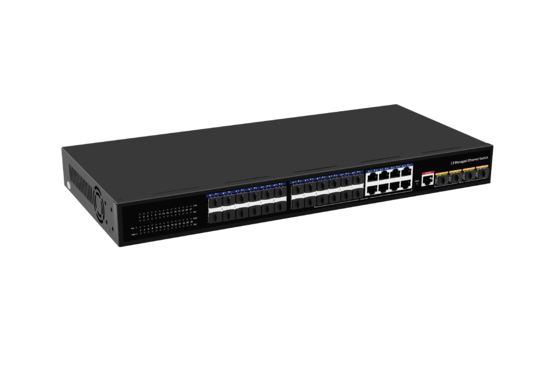

Desktop 10G Ethernet Switch L3 Managed Optical Fiber Switch 24*1.25G RJ45 Ports+4*10G SFP+ Fiber Ports

I/O Interface

Power

AC 100-240V/50-60Hz

Ethernet

24* Gigabit SFP Ports

8* Gigabit Ethernet Ports(Combo) 4* 10G SFP+ Ports

1* Console Port

Performance

Bandwidth

128Gbps

Packet Forwarding Rate

95.23Mpps

DDR SDRAM

128MByte

Flash Memory

16MByte

Package Cache

12M

MAC Address

16K

Jumbo Frame

10Kbytes

VLANs

VLAN range 1-4094, with a maximum active VLAN of 4K

Transfer Mode

Storage & Forwarding

Standard

Network Protocol

IEEE802.3 (Ethernet) IEEE802.3u (Rapid Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3z (Gigabit Ethernet Optical Fiber Standard) IEEE 802.3ae(10G Ethernet)

IEEE802.3x (Flow Control)

IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3ad(Link Aggregation)

IEEE 802.1AB LLDP/LLDP-MED(Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol(STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (Visual LAN)

IEEE 802.1p  (VLAN Label)

IEEE 802.1X (Client/Server Access Control and Authentication Protocol)

Industry Standard

EMS: EN61000-4-2 (ESD),

EN61000-4-5 (Surge)

Network Medium

10BASE-T: Cat 3, 4, 5 or above UTP(≤100m)

100BASE-TX: Cat 5 or above UTP(≤100m)

1000BASE-TX: Cat 5 or above UTP(≤100m)

Optical Medium

Multi-mode Fiber: 850nm, 1310nm Transmission Distance: 550m/2Km

Single-mode Fiber: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km

Certification

Safety Certificate

CE, FCC, RoHS

Environment Standard

Working Environment

Working Temperature:-10~50°C;  Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing;

 Storage Temperature:5%~95%,non-condensing

LED Indicator

Indicator

PWR, SYS, SW, PoE/ACT, Link/ACT

PWR (Power Light)

On: Powered on,

Off: Powered off

SYS (System Light)

On: System Normal,

Flashing: System Starting or Failed

Link/ACT (Link & Data)

On: Link Connecting,

Flashing:Data Transmitting,

Off: Link disconnect

Physical Specification

Structure Size

ProductDimensions: 440*205*44mm

Package Dimensions: 500*290*85mm

Product N.W: 3.06KG

Product G.W: 3.63KG

Packing Info

Carton Dimensions: 520*445*310mm

Packing Quantity: 5 PCS

Packing Weight: 19.15KG

Power Voltage

Voltage: AC 100-240V/50-60Hz

Power supply: 12V8A

Power Consumption (Max)

Maximum 38W

Package List

Ethernet switch: 1 Set, Instruction manual: 1 PCS, Certificate: 1 PCS, Power cord: 1PCS, Serial cable: 1PCS, Rack ear: 1 Pairs
