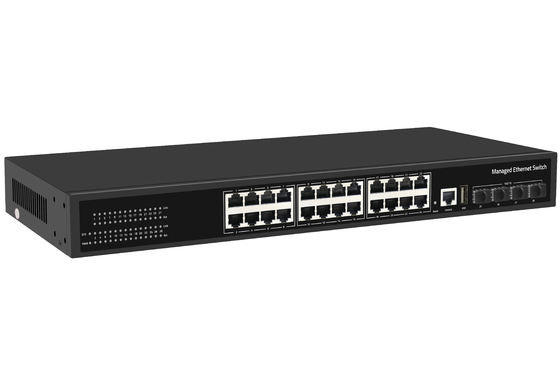

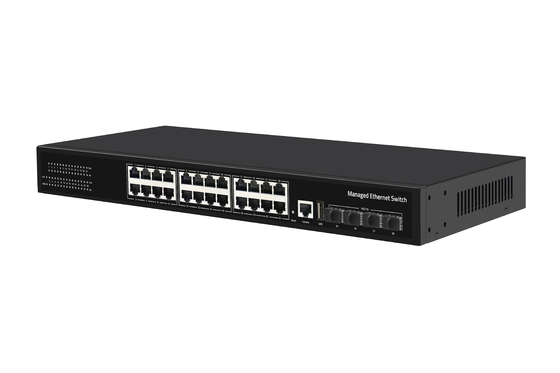

Factory Price 10G switch 24 Port Ethernet Fiber Switch
Desktop L3 Managed Network Switch AC100-240V 1U Rack
Introduction of 24 Port Ethernet Fiber Switch
28-port 10 Gigabit uplink 24-port Gigabit managed Ethernet switch. Support 24 * 10/100/1000 adaptive electrical ports, 4 * 10 Gb SFP+ ports, 1 console port, and 1 USB serial port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. With advanced security functions and quality of service (QoS), it can be used as core layer, distribution layer ,and access layer switch with high density port and easy management, is an ideal choice for various business network applications.
Specification of 10G Managed Network Switch
|
Input/output Port
|
|

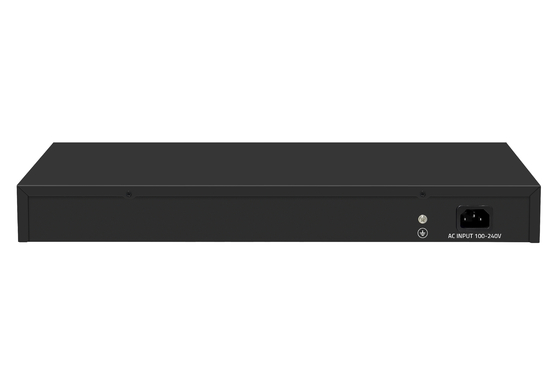

AC INPUT
|
AC100-240V,50/60Hz
|
|
Ethernet Port
|
24 * 10/100/1000Mbps RJ45 Port
4 * 10G SFP+ Port
1 * RJ45 Console Port
1 * USB Port
|
|
Performance
|
|
Bandwidth
|
128Gbps
|
|
Packet Buffer Memory
|
95.23Mpps
|
|
DDR SDRAM
|
128MByte
|
|
Flash Memory
|
16MByte
|
|
Package cache
|
12Mbit
|
|
MAC Address
|
16K
|
|
Jumbo frame
|
10Kbytes
|
|
VLANs
|
VLAN range 1-4094, with a maximum active VLAN of 4K
|
|
Standard
|
|
Network Protocols
|
IEEE 802.3:Ethernet MAC Protocol
IEEE 802.3i:10BASE-T Ethernet
IEEE 802.3u:100BASE-TX Fast Ethernet
IEEE 802.3ab:1000BASE-T Gigabit Ethernet
IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae:10G Ethernet (optical fiber)
IEEE 802.3az:Energy Efficient Ethernet
IEEE 802.3ad:Standard method for performing link aggregation
IEEE 802.3x:Flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q:VLAN Bridge Operation
IEEE 802.1x:Client/Server Access Control and Authentication Protocol
IEEE 802.1d:STP
IEEE 802.1s:MSTP
IEEE 802.1w:RSTP
|
|
Industry Standard
|
EMS: EN61000-4-2 (ESD)
EN61000-4-5 (Surge)
|
|
Network Media
|
10BASE-T: Cat3,4,5 or above UTP(≤100 M)
100BASE-TX: Cat5 or above UTP(≤100 M)
1000BASE-TX: Cat5 or above UTP(≤100 M)
Multi-mode Fiber: 50/125,62.5/125,100/140um
Single-mode Fiber: 8/125,8.7/125,9/125,10/125um
|
|
Certification
|
|
Safety Certificate
|
CE,FCC,RoHS
|
|
Environmental standards
|
|
Working Environment
|
Operating temperature: -10~50°C
Storage temperature: -40~70°C
Operating Humidity: 10%~90%, No condensation
Storage Humidity: 5%~95%, No condensation
|
|
Function indication
|
|
PWR(Power indicator)
|
Lighting:Powered , Un-Light:No Power
|
|
SYS(System lights)
|
Lighting: System is normal , Flashing:system startup
|
|
Link(Link light)
|
Lighting:Connecting , Un-Light:Disconnect
|
|
Act(data light)
|
Flashing:Data Transmit , Un-Light:Disconnect
|
|
Physical specifications
|
|
Product Information
|
Product Dimensions: 440*205*44mm
Package Dimensions: 500*290*85mm
Product N.W: 2.53KG
Product G.W: 3.14KG
|
|
Packing Information
|
Carton Dimensions: 520*445*310mm
Packing Qantity: 5 PCS
Packing weight: 16.7KG
|
|
Voltage
|
Input Voltage: AC100-240V/50-60Hz
Power supply: 12V3A
|
|
Overall power
|
Maximum 30W
|
|
Packing list
|
Ethernet switch 1 Set , Instruction manual 1 PCS , Certificate 1 PCS , Power cord 1PCS
Serial cable 1PCS , Rack ear: 1 Pairs
|
Application
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
Dimension
FAQ:
1. Q: What is your lead time?
A:It usually takes 3~5 working days to produce and then will send goods.
2. Q: How will you send my goods?
A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.
3 Q: Please tell me something about your MOQ.
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
4. Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
5. Q: What is warranty time?
A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
