Name: Gigabit 8 port poe switch managed ethernet fiber switch 120W AC100-240V Input
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM288-PSE-GW
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Gigabit 8 Port Poe Managed Switch

Power Input: AC100-240V，50/60Hz

Bandwidth: 20Gbps

OEM: Accept

Product Dimensions: 268*181*44mm

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Olycom

Certification: CE RoHS FCC

Model Number: OM288-PSE-GW

Payment & Shipping Terms

Packaging Details: 1pc in a box

Delivery Time: 3~5 working days

Payment Terms: T/T,PayPal

Supply Ability: 5000pcs/month

Gallery

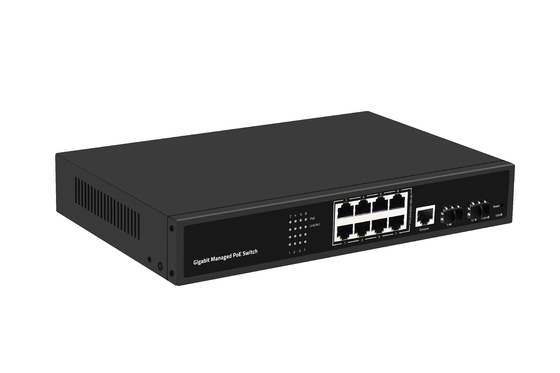

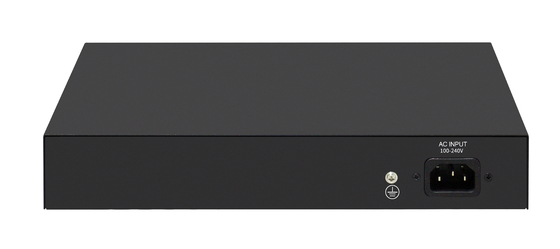

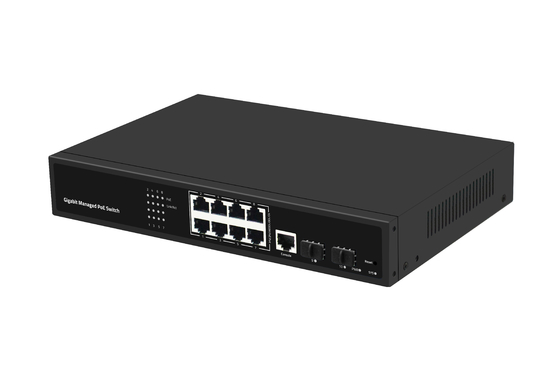

Gigabit 8 port poe switch managed ethernet fiber switch 120W AC100-240V Input

Product Description

Gigabit 8 port poe switch managed ethernet fiber switch

120W AC100-240V Input

Key Features of Gigabit POE Switch 8 port

8 x 10/100/1000Mbps auto-sensing PoE Ports, 2 x Gigabit SFP Uplink Ports, 1 x Console Port
Support IEEE802.3/IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z
Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
Ethernet port supports 10/100/1000M adaptive
Panel indicator monitoring the status and help failure analysis
Fanless design, Natural Cooling,Compatible with 1U Rack Mount
Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication
Support WEB, TELNET, CLI, SSH, SNMP, RMON management
Support PoE Power Management, PoE watch dog
Surge Protection: General 6KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level B)

Specification of Managed Ethernet Fiber Switch

Input/output Port
AC INPUT	AC100-240V,50/60Hz
Ethernet Port	8 * 10/100/1000Mbps PoE Port 2* 1000Mbps SFP Port 1 * RJ45 Console Port
Performance
Bandwidth	20Gbps
Packet Forwarding rate	14.88Mpps
DDR SDRAM	128MByte
Flash Memory	16MByte
Packet Buffer Memory	4Mbit
MAC Address	8K
Jumbo frame	10Kbytes
VLANs	VLAN range 1-4094, with a maximum active VLAN of 256
Standard
Network Protocols	IEEE 802.3:Ethernet MAC Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad:Standard method for performing link aggregation IEEE 802.3x:Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q:VLAN Bridge Operation IEEE 802.1x:Client/Server Access Control and Authentication Protocol IEEE 802.1d:STP IEEE 802.1s:MSTP IEEE 802.1w:RSTP
PoE protocol	IEEE802.3af (15.4 W) IEEE802.3at (30 W)
Industry Standard	EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge)
Network Media	10BASE-T: Cat3,4,5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M)
Fiber Medium	Multi-mode Fiber: 50/125,62.5/125,100/140um Single-mode Fiber: 8/125,8.7/125,9/125,10/125um
Certification
Safety Certificate	CE,FCC,RoHS
Environmental standards
Working Environment	Operating temperature: -10~50°C Storage temperature: -40~70°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~95%, No condensation
Function indication
Indicator	PWR, SYS, PoE, Link/ACT
PWR(Power Indicator)	Lighting:Powered Un-Light:No Power
SYS(System Indicator)	Flashing: System Start-up Lighting: System Running
PoE	Lighting:PoE on Un-Light:PoE off
Link/ACT	Lighting: Link connection Flashing: Data transmission Un-Light: Link disconnect
Reset	Short press restart, long press 5 seconds to restore factory Settings
Physical specifications
Product Information	Product Dimensions: 26818144mm Package Dimensions: 31226284mm Product N.W: 1.08KG Product G.W: 1.62KG
Packing Information	Carton Dimensions: 540435332mm Packing Qantity: 10 pcs Packing weight: 17.2KG
Voltage	Input Voltage: AC100-240V/50-60Hz Power supply: 52V2.3A
power	Product power: maximum 10W POE power: maximum 110W
Packing list	1. Ethernet switch: 1 Set 2. Instruction manual: 1 PCS 3. Certificate: 1 PCS 4. Power cord: 1PCS 5. Serial cable: 1PCS 6. Brackets: 1 pair

Dimension

Gigabit 8 port poe switch managed ethernet fiber switch 120W AC100-240V Input 0

FAQ:

1. What is MoQ?

1 Pc/Pair.

For many models, we have stock, it is easy to send samples for your testing.

2. Can I have a discount?

Yes and it is usually based on quantity and after sample testing.

3. What is your warranty period?

For commercial models like fiber Ethernet media converter or fiber optic PoE switch, it is 1 year.

For industrial grade products, it is 3 years.

We do lifetime technical support if the models are from Olycom company.

4. Can I have my own packing box?

Yes, the standard packing box does have not have Chinese letters or logo.

Its fine to customize your own version like putting your logo, model name or slogans on it.

5. What is your payment terms?

In most cases we do T/T wire transfer and full amount should be collected before shipment.

For sample orders, we receive PayPal payment for shorter processing time.

Sometimes Alipay or WeChat payment is fine, it depends on the cases.
