DC Powered Industrial PoE Switch for Solar and Battery Backup Systems
Key Features of 12V/24V/48V DC Input Switch

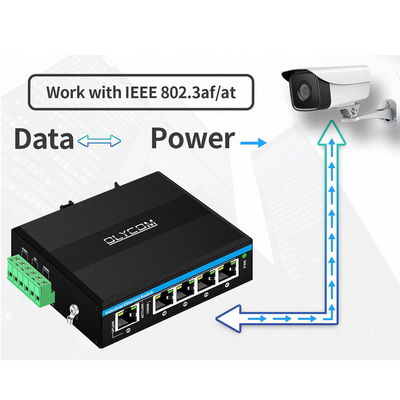

- Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
- 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1 x 10/100/1000Mbps uplink network port

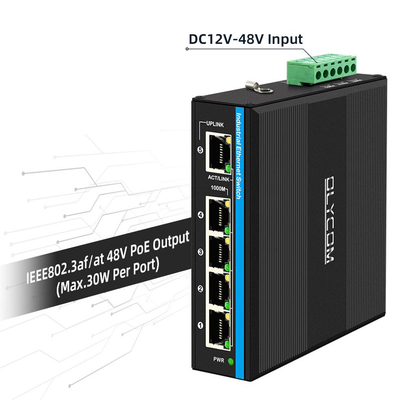

- Built-in voltage booster for DC12-48V input which can be used for solar power/Trunk/VoIP system/CCTV security system
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
- Max power to15.4W under af standard, 30W under at standard to each PoE port
- Detect the PoE models of electrical equipments.
- Operating environment temperature: -40℃~75℃
| Product Name |
10/100/1000Mbps Industrial PoE Network Switch (5TP) |
| Model No. |
IM-WP054BGE |
| Port |
1 x 10/100/1000Mpbs uplink network port
4 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Protocol |
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
IEEE 802.3af 15.4W(PoE)
IEEE 802.3at 30W(PoE+)
|
| Switching features |
Transmission mode: Storage and forward
Forwarding delay: <10us
System bandwidth: 10Gbps(non-traffic jam)
Forwarding rate: 14.88Mpps
MAC: 2K
Packet buffer size: 1.75Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|

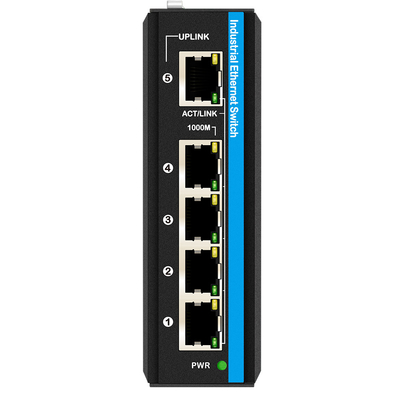

| LEDs |
Power, Network
PWR: Power
Copper orange: Speed indicator
On: Working speed is 1000Mbps
Off: Disconnected or working speed is 10/100Mbps
Copper green: Link/Act indicator
On: transmission is normal
Blinking: in transmission
Off: transmission is NOT normal
|
| Power supply |
PoE power supply input voltage: DC12V-48V
Single PoE power supply output power: 15.4W/30W (port 1~4)
Total PoE budget: 120W
PoE output voltage: DC48V, active PoE
|
| Environment |
Working temperature: -40°～75°C
Storage temperature: -40°～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Warranty
|
3 years, lifetime technical support
|
Packing List
- 1pc switch
- 1pc user manual
Remark
Accessories(DIN rail bracket, power supply, network cable etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
Application of Off-grid PoE Edge Switch
In a PoE system, most device receive DC48V or even higher voltage to be working, if it is just DC12V or DC24V, PoE will not work).
There is a built-in voltage step-up in IM-WP054BGE model boosting low DC input(typically DC12V~DC48V) from power adapter, UPS, battery power etc.
Then PoE will be activated for CCTV security scenarios.
Below are some popular applications
- Solar power system
- Vehicle Network
- Residential CCTV security system
See following detailed explanation
For above scenarios, we have different mounting kits for easy installation.
Overall, IM-WP054BGE helps
1, Boost the DC12V/DC24V to DC48V
2, Smart communication with IP-based devices
Supply power to PoE devices
Only transmit networking signal with Non-PoE devices
It is an ideal solution for low voltage power surveillance system.
Mounting Method
Ordering Options
| IM-WS050GE |
Industrial Ethernet Switch
5*100/1000M, Unmanaged, Non-PoE, DC12V~DC52V dual input
Ideal in vehicle network or industrial automation system
|
| IM-WP054GE |
Industrial PoE Switch
5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget
DC48V~DC52V dual input
Remark: PoE bt*60W is optional
Ideal in CCTV security system
|
| IM-WP054BGE |
Industrial PoE Switch
5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget
DC12V~DC48V dual input
With internal power booster
Ideal in vehicle network or solar power system
|
|
IM-WPD054GE
|
Industrial PoE Switch
5*100/1000M, Unmanaged, 1*PD port(30W/60W/90W)+PoE af/at for port 1~4, No need to use extra power supply
Ideal in CCTV security system
|
| IM-WS050GM |
Industrial Web Managed Switch
5*100M/1000M, Web Managed(QoS, VLAN etc.), Non-PoE
DC12V~DC52V dual input
Ideal in industrial automation systems
|
