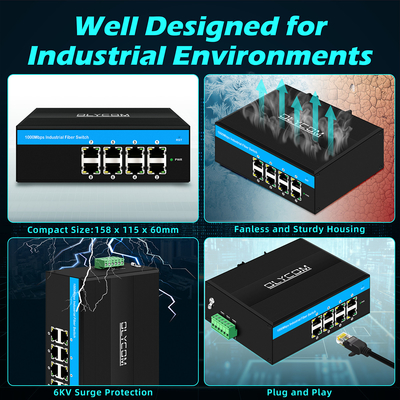

8 Port Poe Switch E-Mark Gigabit Industrial Ethernet Switch IP40 for Outdoor Use

8 Port Poe Switch E-Mark Gigabit Industrial Ethernet Switch

IP40 for Outdoor Use

Key Features of 8 port unmanaged switch:

• Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
• POE output power 15.4W/30W/60W for 1 ~8 RJ45 ports
• 8x 10/100/1000Mbps Auto-sensing RJ45 ports
• 6KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
• Detect the PoE models of electrical equipments
• A store-and-forward switching mechanism
• Operating environment temperature:-40 ° ~75 ° c

Specification of 8 port network switch


Packing box of Din rail unmanaged switch:


FAQ:

1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~52V. All the models support redundant input.

2. What is the PoE budget?
A: The standard PoE output is 30W per port.
Take IM-FP288GW for example, it has 8 PoE ports, so the budget is 30W/port*8 ports=240W.
We can also support 60W output if it is required, please confirm with us.

3. How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.

4. If possible to write the label as I want?
A: Yes, please just send the content and format, and we will print a sample piece for your confirmation.
The label is usually attached to the side panel.

5. Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
