5 Port E-Mark Certified Industrial Ethernet Switch with 6KV Surge Protection and Gigabit Network Speed

1 pc
MOQ
Negotiable
Price
5 Port E-Mark Certified Industrial Ethernet Switch with 6KV Surge Protection and Gigabit Network Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 5 Port Gigabit Ethernet Switch
Data Rate: 10/100/1000Mbps
Surge Protection: ±6KV
OEM: Accept
Power Input: 12 To 52v DC Redundant Power
Installation: 35mm Din-Rail Or Wall-Mounting
Use: Vehicle Network, Industrial Automation
Highlight:

5 Port Gigabit Switch

,

Industrial Ethernet Switch

,

Gigabit Ethernet Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE E-Mark
Model Number: IM-FS050GE V2
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 3000pcs/month
Product Description
5 Port Gigabit Switch E-Mark Certified Industrial Ethernet Switch

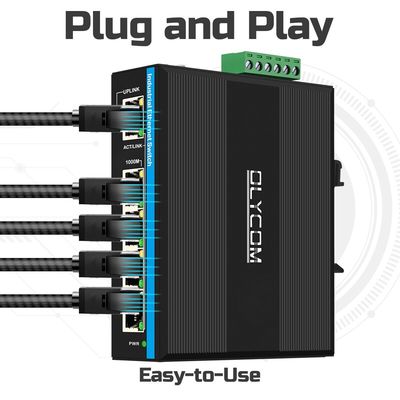

5 Port E-Mark Certified Industrial Ethernet Switch with 6KV Surge Protection and Gigabit Network Speed 0
Key Features of Industrial Ethernet Switch
  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 1 x 10/100/1000Mbps uplink network port
  • 6 KV Ethernet surge protection, adapts to harsh outdoor environments
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  • Store-and-forward switching mechanism
  • Operating environment temperature: -40°C to 75°C
Specifications of Gigabit Network Switch
Product Name 10/100/1000Mbps Industrial Network Switch (5TP)
Model No. IM-FS050GE
Port 1 x 10/100/1000Mbps uplink network port
4 x 10/100/1000M UTP RJ45 (Support MDI/MDIX auto-sensing)
Switching Features Transmission mode: storage and forward
System bandwidth: 40Gbps (non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
Network Media 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair (≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair (≤100m)
LEDs Power, network
Power Supply Input voltage: DC 12-52V
No-load power: 5W
Reverse connection: support
Environment Working temperature: -40°C to 75°C
Storage temperature: -40°C to 85°C
Working humidity: 10% to 90%, non-condensing
Storage humidity: 10% to 95%, non-condensing
Industry Standards EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
Safety CE Mark, commercial CE/LVD EN60950
Mechanical Information Shell: Corrugated metal shell
Safety class: IP40
Dimension: 113.8 x 93 x 34.9mm
Mounting method: Din-rail mounting
Warranty 3 years
Packing Information for DIN Rail Unmanaged Switch

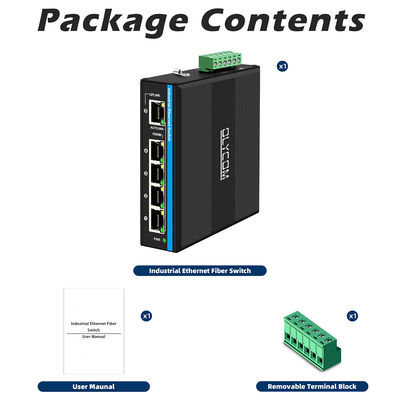

5 Port E-Mark Certified Industrial Ethernet Switch with 6KV Surge Protection and Gigabit Network Speed 1
  • Product placed in ESD bag, then in PE foams with outer carton packaging
  • Standard packing includes main device, removable terminal block, and user manual
  • Packing box dimension for 1pc: 25.3*20.8*8cm
  • 40pcs in a packing box of 55.5*40*41cm dimension

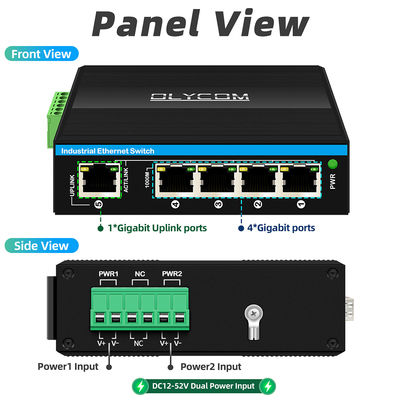

5 Port E-Mark Certified Industrial Ethernet Switch with 6KV Surge Protection and Gigabit Network Speed 2
Standard Features of E-Mark Network Switch
  • Robust design: Built for harsh industrial environments with sturdy enclosure for high vibration and shock resistance
  • Wide operating temperature range: Operates in extreme temperatures from -40°C to 75°C
  • Dual and wide power input: Supports 12VDC to 52VDC with power redundancy for increased reliability
  • High protection level: Network port isolation protects against ground loop issues and electrical surges with IP40 rating for dust protection
  • DIN-rail mounting: Easy installation on DIN rails within vehicles or industrial cabinets
  • Port auto-sensing: Automatic detection of network speeds for compatibility with different devices
  • Diagnostic features: LED indicators for network status monitoring and fast troubleshooting
