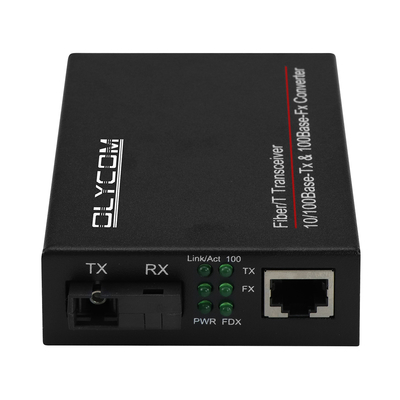

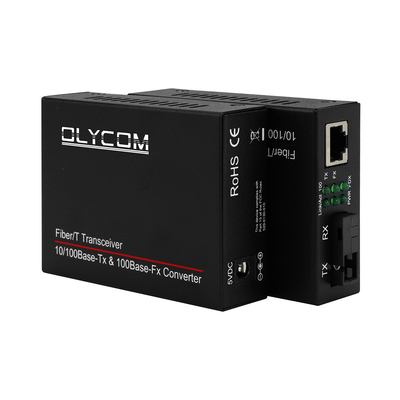

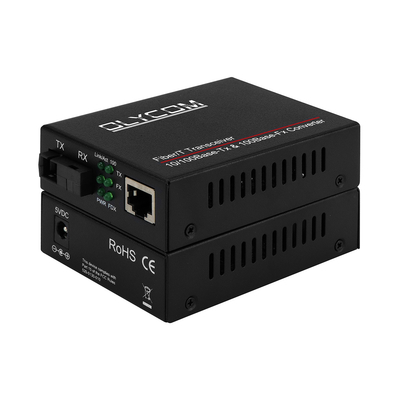

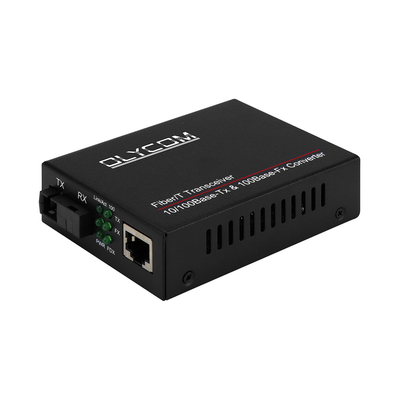

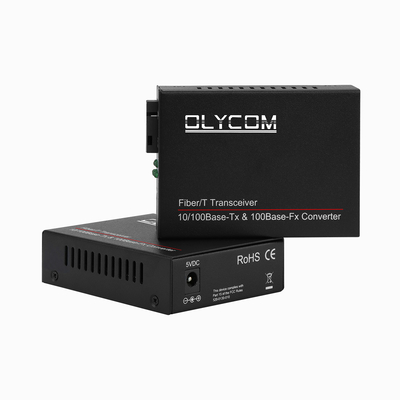

Fast Ethernet Fiber Optic Ethernet Converter
10/100M Single-Mode Bi-Directional Transceiver SC to RJ45 20km
Key Features of 10/100mbps Fiber Optic Media Converter
* Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber
* 100BASE-FXFIBER to 10/100BASE-T COPPER Ethernet conversion
* 1600byte super data packet transmission
* Full duplex-flow control, Half duplex-back pressure
* Full- positioned LEDs to indicate power and network status
* Available for 14slots rack
Specification of SFP Optical Fiber To RJ45 Converter
|
Standard
|
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q,
|
|
10/100BASE-T
|
STP or UTP Category 5/5e/6 cable (Max. 100m)
|
|
100BASE-FX
|
9/125um singlemode fiber cable (20km)
|
|
Conversion Mode / Delay Time
|
Store-and-Forward < 10us, straight-through<0.9us
|
|
Flow control
|
Full duplex-flow control, Half duplex-back pressure
|
|
RJ-45 Port
|
Auto-MDI/MDIX
|
|
Fiber Connector
|
SC standard, ST/FC optional
|
|
Wavelength
|
1310/1550nm
|
|
Dimensions
|
70mm(W) x 93mm(D) x 25mm(H)
|
|
Weight
|
Net weight : 0.16kg; Gross weight : 0.42kg
|
|
Input Voltage
|
DC 5V1A with External power adapter
|
|
Power Consumption
|
<2.5W
|
|
MTBF
|
50,000 hours
|
|
BER
|
<1/1000000000
|
|
MAC Address Table
|
1K
|
|
Buffer Size
|
128K
|
|
Operating Temperature
|
-5℃~55℃
|
|
Storage Temperature
|
-40℃~70℃
|
|
Storage Humidity
|
0%~95% non-condescending
|
Application
- Telecommunication Networks
- Schools, offices, Cyber bars
Packing
Ordering Details:
|
TA511/2-FE/SC-20
|
10/100M, Standalone, Single fiber, Single mode, SC, 20km, external power supply
|
|
TA511/2-FE/SC-40
|
10/100M, Standalone, Single fiber, Single mode, SC, 40km, external power supply
|
|
TA511/2-FE/SC-60
|
10/100M, Standalone, Single fiber, Single mode, SC, 60km, external power supply
|
|
TA511/2-FE/SC-80
|
10/100M, Standalone, Single fiber, Single mode, SC, 80km, external power supply
|
|
TA511/2-FE/SC-100
|
10/100M, Standalone, Single fiber, Single mode, SC, 100km, external power supply
|
