Gigabit Optical Fiber Converter Din Network Switch DC12-52V Dual Power Input

Gigabit Optical Fiber Converter Din Network Switch

 DC12-52V Dual Power Input

Key Features of fiber optic media converter

•  2 x 10/100/1000Mbps Auto-sensing RJ45 ports
•  1 x 1000Mbps SFP fiber port

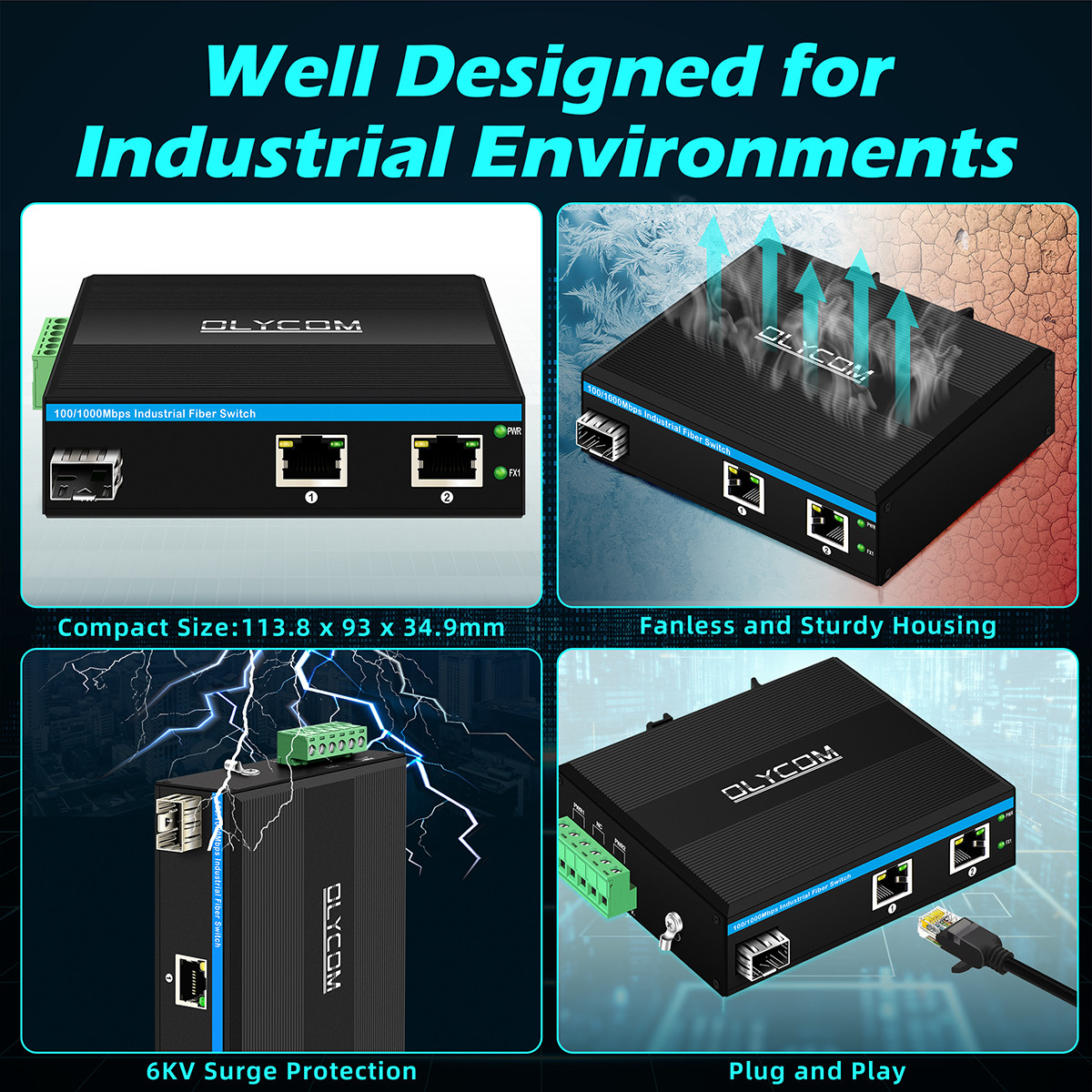

•  6 KV Ethernet surge protection, adapt to a harsh outdoor environment
•  Support Auto MDI/MDIX
•  Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
•  IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
•  A store-and-forward switching mechanism
•  Operating environment temperature:-40 ° ~75 ° c

Specification of Industrial Full Gigabit Switch

Application

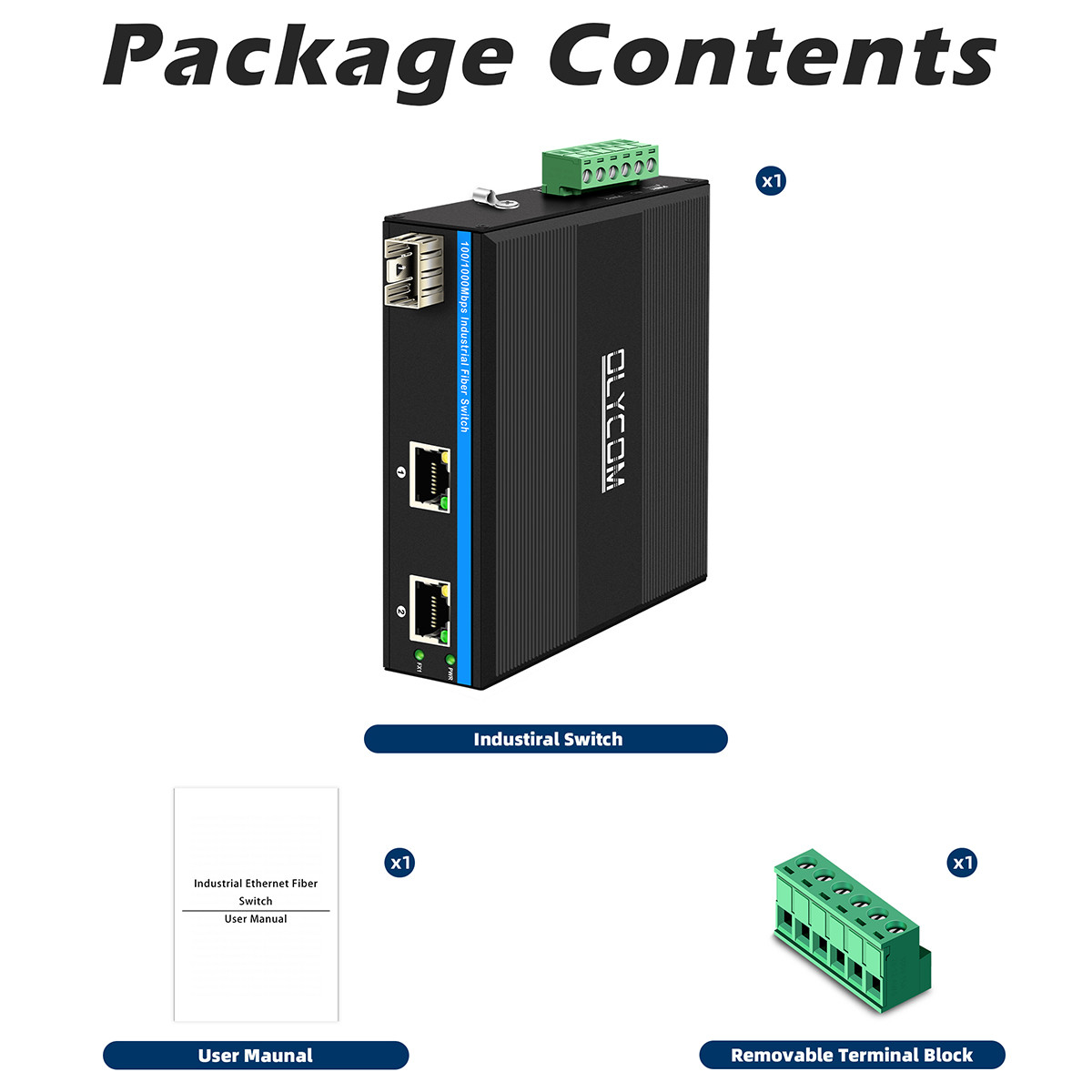

Packing box of Din rail unmanaged switch:

• Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
• The standard packing usually contains a main device, a warranty card and a user manual.
• Packing box dimension for 1pc: 23*16.5*5.8cm
• 40pcs in a packing box of 67*33*47cm dimension.

FAQ:

1. What is the input voltage?
A: For PoE switches, it is DC48V~52V.
For non-PoE switches, it is DC12V~52V.

2. What is the power budget?
A: Each PoE port supports 15.4W/30W/60W output.
The default output is 30W(please let us know if you need 60W type)
The total budget: output watts of each port times PoE ports

3. Is it managed?
A: No, this series is unmanaged.
We have another managed series for your choice.

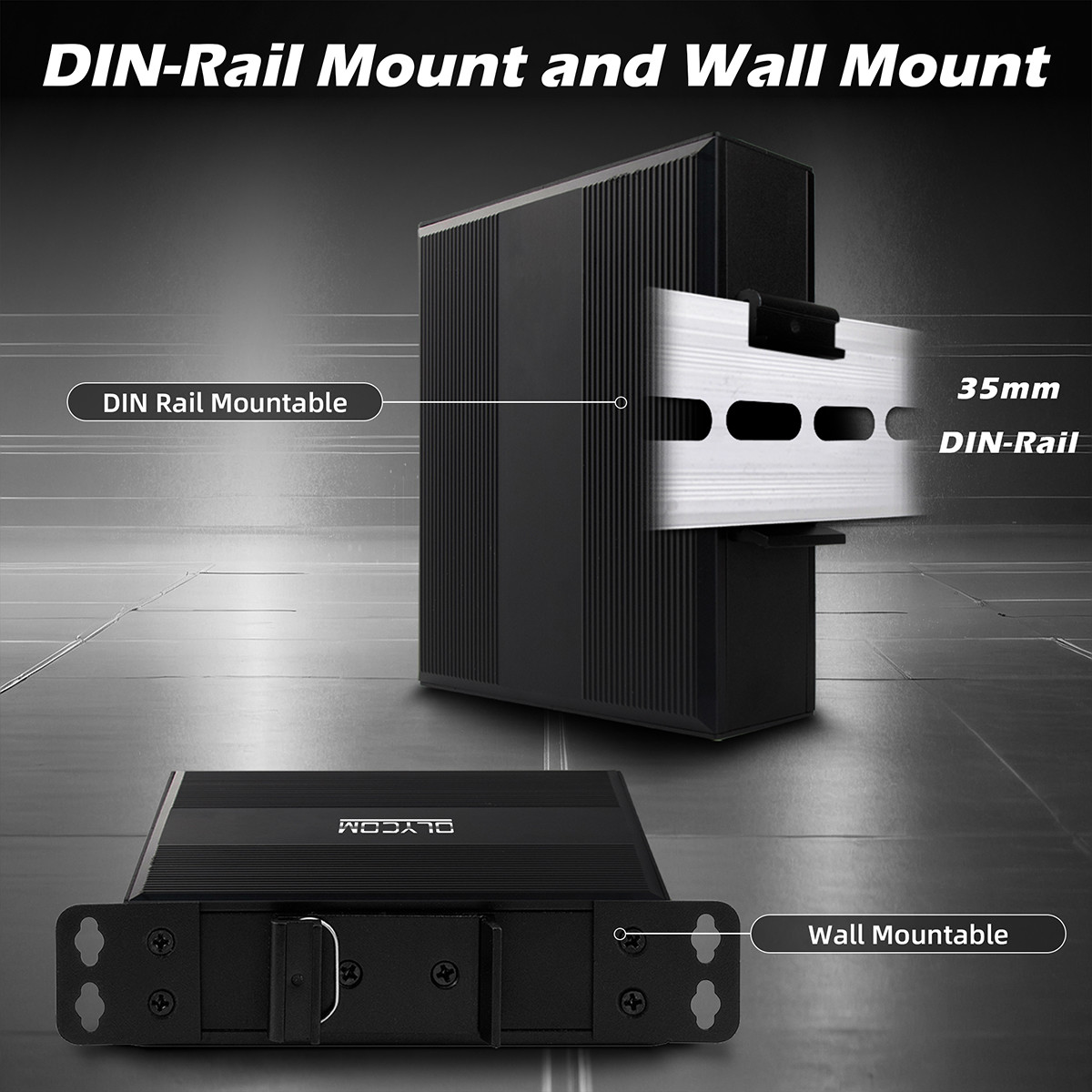

4. What installation method does it support?
A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it before.

5. Does the fiber port support 100M speed?
A: Yes, for 100M models, it just supports 100M modules.
For Gigabit models, the fiber port is 100M/1000M auto-adaptive, you can insert 155Mb/s or 1.25Gb/s modules, both will work.
