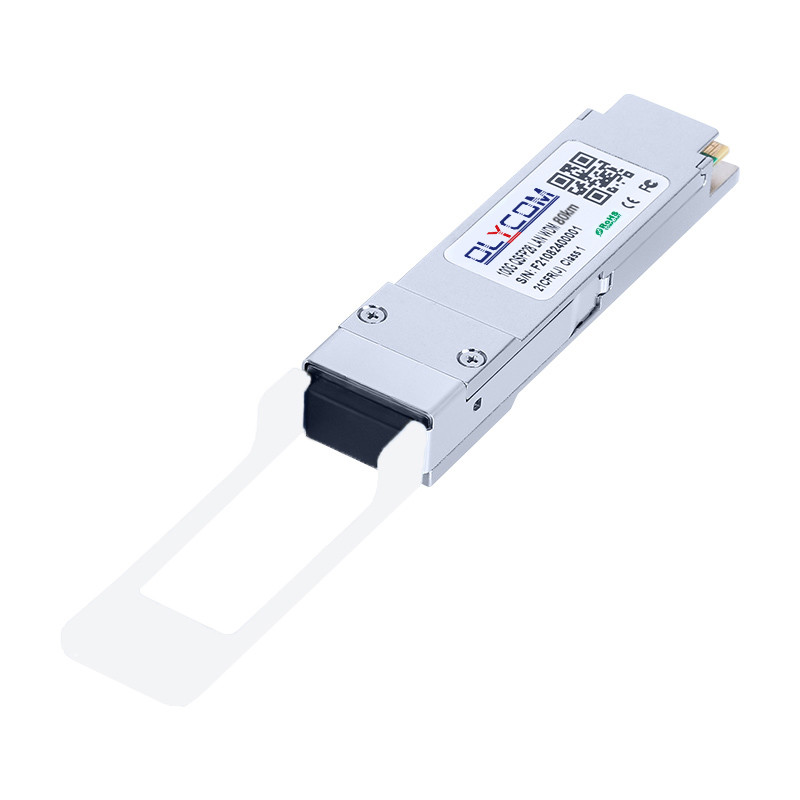

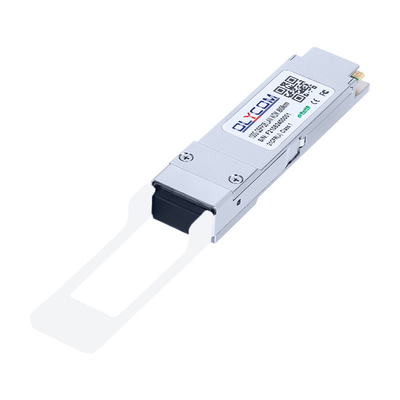

100Gbps QSFP28 SFP Transceiver ZR4 LC Single Mode
80km 1295nm~1310nm
Key Features of 100Gpbs SFP Module
- Support line rates from 103.125 Gb/s
- Lane bit rate 25.78 Gb/s 100GE
- Up to 80km transmission with KR4-FEC
- LAN WDM EML laser and PIN receiver with SOA
- Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS
- High speed I/O electrical interface (CAUI-4)
- I2C interface with integrated Digital Diagnostic monitoring
- QSFP28 MSA package with duplex LC connector
- Single +3.3V power supply
- Maximum power consumption 4.5 W
- Complies with EU Directive 2015/863/EU
- Operating case temperature: 0 to +70 °C
Absolute Maximum Ratings
|
Parameter
|
Symbol
|
Min.
|
Max.
|
Unit
|
|
Storage Temperature
|
TS
|
-40
|
+85
|
°C
|
|
Maximum Supply Voltage
|
VCC
|
-0.5
|
3.6
|
V
|
|
Operating Relative Humidity
|
RH
|
|
85
|
%
|
Recommended Operating Environment
|
Parameter
|
Symbol
|
Min.
|
Typical
|
Max.
|
Unit
|
Notes
|
|
Operating Case Temperature
|
TC
|
0
|
|
+70
|
°C
|
|
|
Power Supply Voltage
|
VCC
|
3.13
|
3.3
|
3.47
|
V
|
|
|
Power Supply Current
|
ICC
|
|
|
1.82
|
A
|
|
|
Maximum Power Dissipation
|
PD
|
|
|
4.5
|
W
|
|
|
Aggregate Bit Rate
|
BRAVE
|
|
103.125
|
|
Gb/s
|
|
|
Lane Bit Rate
|
BRLANE
|
|
25.78125
|
|
Gb/s
|
|
|
Transmission Distance
|
TD
|
|
|
80
|
km
|
|
|
Coupled fiber
|
Single mode fiber
|
9/125um SMF
|
Optical Characteristics
|
Parameter
|
Symbol
|
Min.
|
Typical
|
Max.
|
Unit
|
Notes
|
|
Transmitter
|
|
Signaling Speed per Lane
|
|
|
25.78125
|
|
Gbps
|
|
|
Lane Wavelengt
|
L0
|
1294.53
|
1295.56
|
1296.59
|
nm
|
|
|
L1
|
1299.02
|
1300.05
|
1301.09
|
nm
|
|
|
L2
|
1303.54
|
1304.58
|
1305.63
|
nm
|
|
|
L3
|
1308.09
|
1309.14
|
1310.19
|
nm
|
|
|
Total Launch Power, 100GE
|
PT
|
7
|
|
12.5
|
dBm
|
1
|
|
Average Launch Power per Lane,
|
Pavg
|
1
|
|
6.5
|
dBm
|
1
|
|
OMA, each Lane
|
POMA
|
2
|
|
6.5
|
dBm
|
1
|
|
Difference in launch power between any two lanes(Average and OMA) between any Two Lanes (OMA)
|
Ptx,diff
|
|
|
3
|
dB
|
|
|
Average Output Power (Laser Turn off)
|
Poff
|
|
|
-30
|
dBm
|
|
|
Side Mode Suppression Ratio
|
SMSR
|
30
|
|
|
dB
|
|
|
Extinction Ratio, 100GE
|
ER
|
8.2
|
|
|
dB
|
|
|
RIN20OMA
|
RIN
|
|
|
-130
|
dB/Hz
|
|
|
Optical Return Loss Tolerance
|
TOL
|
|
|
20
|
dB
|
|
|
Transmitter Reflectance
|
RT
|
|
|
-12
|
dB
|
|
|
Optical Eye Mask
|
{0.25,0.4, 0.45, 0.25, 0.28, 0.4}
|
%
|
2
|
|
Receiver
|
|
Signaling rate, each lane
|
|
|
25.78125
|
|
Gbps
|
|
|
Center Wavelength Lane 0
|
λ0
|
1294.53
|
1295.56
|
1296.59
|
nm
|
|
|
Center Wavelength Lane 1
|
λ1
|
1299.02
|
1300.05
|
1301.09
|
nm
|
|
|
Center Wavelength Lane 2
|
λ2
|
1303.54
|
1304.58
|
1305.63
|
nm
|
|
|
Center Wavelength Lane 3
|
λ3
|
1308.09
|
1309.14
|
1310.19
|
nm
|
|
|
Damage threshold , each lane
|
Pdamage
|
5.5
|
|
|
dBm
|
|
|
Average Receive Power, each lane
|
|
-28
|
|
-6
|
dBm
|
3
|
|
Receiver sensitivity Average, each lane
|
SEN
|
|
|
-27
|
dBm
|
3
|
|
Los Assert
|
LosA
|
-36
|
|
|
dBm
|
|
|
Los De-assert
|
LosDA
|
|
|
-28
|
dBm
|
|
|
Los Hysteresis
|
LosH
|
0.5
|
|
5
|
dB
|
|
Mechanical Dimensions
Ordering information
|
Part Number
|
Product Description
|
|
OQSPLHG80D
|
100Gbps QSFP28 ZR4, LC, 80km, 0°C~+70°C, with DDM
|
