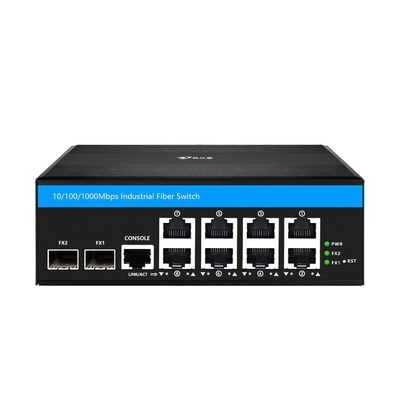

8 Port Gigabit Managed Poe Switch Industrial Ethernet Switch with 2SFP+8 RJ45

Product Name

10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+8TP)

Model No.

IM-FP288GM

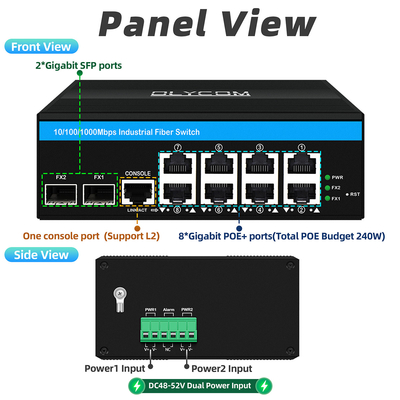

Port

2 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;   8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad Link Aggregation Protocol: IGMPv1/v2, SNMPv1/v2c/v3, DHCP ClientTFTP, HTTP, HTTPS, SNMP Inform, DDM, Ping/tracert detection, MIB library: MIB-II, Ethernet-Like MIB

Managed

☆Support VLAN: 802.1Q VLAN (4K), Port-based VLAN

☆ Jumbo frame processing: 9k

☆ Report buffer: 64K

☆ Broadcast storm suppression: support broadcast, multicast, unknown unicast suppression

☆ Flow control: Adopt IEEE802.3x negotiation flow control, CAR function, speed limit step size is 1Kb

☆ Ring network function: support ITU-T G.8032 /Y.1344 ERPS

☆ Multicast protocol: IGMPv1/2/3 Snooping

☆ Port management: support port isolation and port aggregation

☆ DHCP management: support DHCP Snooping, option 82

☆ QoS mechanism: 802.1p; support port default priority marking, each port has at least 4 queues with different priorities

☆ Security: login access authentication, login password modification, MAC address filtering, support dynamic or static MAC address learning / support ARP learning function off and on, ARP message speed limit / support IP+MAC+ port manual and automatic scanning binding Set IEEE 802.1x (Port based, MAC based), can transparently transmit 802.1x data packets/port loop detection

Switching Features

Exchange capacity: 20Gbps     Packet forwarding rate: 14.8Mpps

MAC address table: 4K             Swap delay: <5μs

Transmission method: store and forward

Power supply

Input voltage:DC 48-52V; No-load power<5W

Reverse connection: support

Overload protection: support

Redundant protection: support

Environment

Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;

Working humidity:5%～95%, non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2    Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32    Shock:IEC 60068-2-27    Rail Traffic:EN 50121-4

Mechanical information

Shell:Corrugated metal shell;  Safety class:IP40

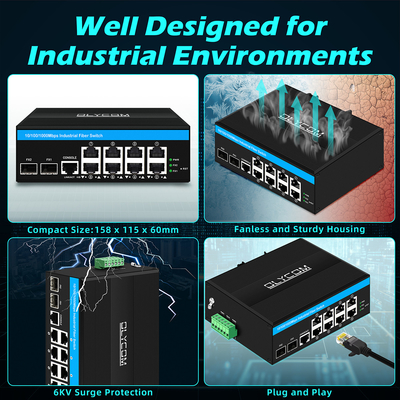

Dimension:158*115*60mm

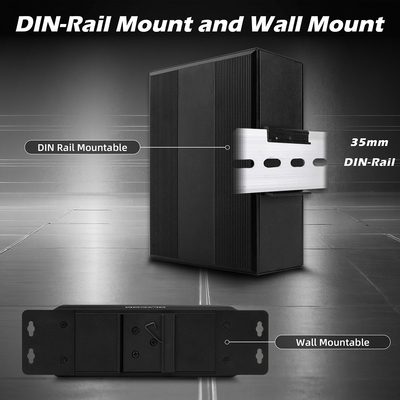

Mounting method:Din-rail mounting

Warranty

3 years
