8 port industrial ethernet switch layer 2 managed switch DC12/24/48V Dual power input

Product Name

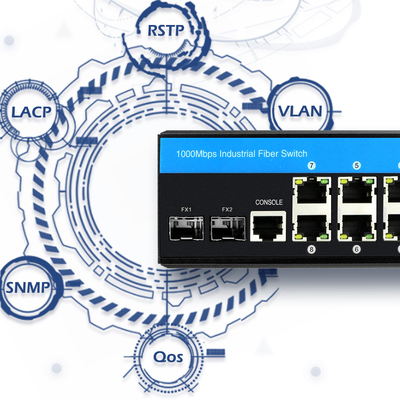

10/100/1000Mbps Managed Industrial  Fiber Switch (2F+8TP)

Model No.

IM-FS280GW

Port

2 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;   8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard

IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az

VLAND ID

4096

Jumbo Frame

9.6KB

MAC Address Table Size

8K

Switching features

Transmission mode:storage and forward

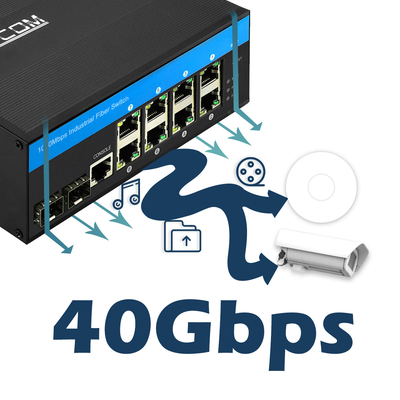

System bandwidth:58Gbps (non-traffic jam)

DRAM size: 128M    Flash size: 16M
Packet buffer size: 4Mb

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs

Power, network, fiber

Power supply

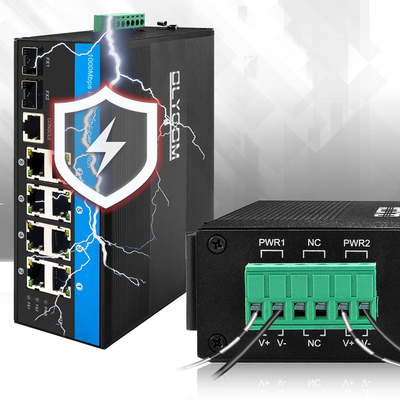

Input voltage:DC 12-52V; No-load power:5W;

Reverse connection: support

Environment

Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4

Safety

CE Mark ,commercial ; CE/LVD EN60950

Mechanical information

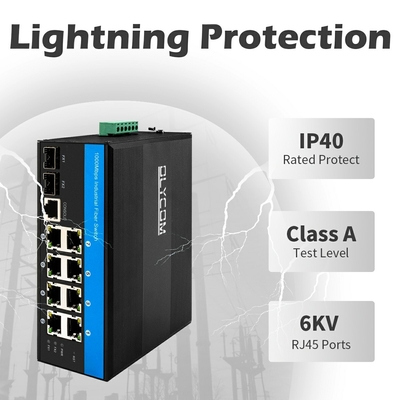

Shell:Corrugated metal shell;  Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

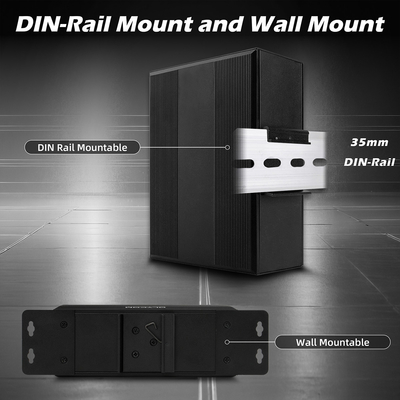

Mounting method:Din-rail mounting

Warranty

3 years
