480W DIN Rail Power Supply 48V 10A Wide AC/DC Input With Active PFC DC OK

1pc
MOQ
negotiable
Price
480W DIN Rail Power Supply 48V 10A Wide AC/DC Input With Active PFC DC OK
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 480W Industrial Power Supply
Voltage Input: AC/DC
Voltage Output: 48-55VDC
Temperature Range: -40℃ To +70℃
UL Listed: Yes
OEM Service: Support
Highlight:

48V 10A DIN Rail Power Supply

,

Active PFC DIN Rail Power Supply

,

480W DIN Rail Power Supply

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IMD-DC48V10A
Payment & Shipping Terms
Packaging Details: 1pc in a carton, 0.98kg/pc gross weight
Delivery Time: 4~8 working days
Payment Terms: T/T, PayPal
Supply Ability: 2000Pcs per month
Product Description
480W DIN-Rail Industrial Power Adapter

Key Features of PoE Power Supply

  • Universal 85- 264VAC or 120- 370VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +70℃
  • The efficiency is up to 94.5%
  • High I/O isolation test voltage up to 3000VAC
  • DC OK function
  • Active PFC, PF > 0.99
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage, over-temperature protection, input undervoltage
  • protection
  • DIN rail TS-35/7.5 or 15 mountable
  • Ultra slim design with 48mm width
  • Withstand 305VAC input voltage 5S
  • Safety according to IEC/UL62368, EN61558



Input



480W DIN Rail Power Supply 48V 10A Wide AC/DC Input With Active PFC DC OK 0



Output



480W DIN Rail Power Supply 48V 10A Wide AC/DC Input With Active PFC DC OK 1



General Information



480W DIN Rail Power Supply 48V 10A Wide AC/DC Input With Active PFC DC OK 2



Mechanical Information



Case Material: Metal (AL1100, SPCC) and Plastic (PC940)
Dimensions: 131.50 x 48.00 x 125.00 mm
Weight: 980g (Typ.)
Cooling Method: Free air convection



480W DIN Rail Power Supply 48V 10A Wide AC/DC Input With Active PFC DC OK 3



About Olycom



We manufacture and market fiber optic connectivity devices.

We provide solutions and services of industrial networking, fiber optic, CCTV surveillance and fiber optic conversion&transmission.



Din-rail gigabit industrial L2 L3 managed switch

Fiber optic Ethernet media converter

AHD TVI CVI Analog video fiber converter

Optical fiber module transceiver

CWDM/DWDM/OXC/DCI system



For the last 20 years, Olycom has been seeking betterness and developing cutting-edge fiber optic devices&solutions, and gained popularity&recognization in China and overseas.



OEM and ODM service are optional.

We are fully connected with our customers, even if just for a single purchase.

The Customer information will be highly confidential, and relevant cooperation information will not be leaked to a third party without the customer’s permission.

It starts from the promise of professional products and services, but our work goes far beyond. It is not only fiber optic connection, but also human connection.



Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS.

Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.

In stock: We got our own warehouse, for popular models, we have many in stock for fast delivery.

Real-time demonstration: We will send actual product photos and testing videos to clients, our production lines contribute to good in-sales and after-sales services.



Ordering Details



IMD-DC48V2.5A Industrial Power Adapter, AC220V to DC48V, 2.5A, 120W
IMD-DC48V5A Industrial Power Adapter, AC220V to DC48V, 5A, 240W
IMD-DC48V10A Industrial Power Adapter, AC220V to DC48V, 10A, 480W



Above listed is the most frequently ordered item. Please contact us for other configurations.

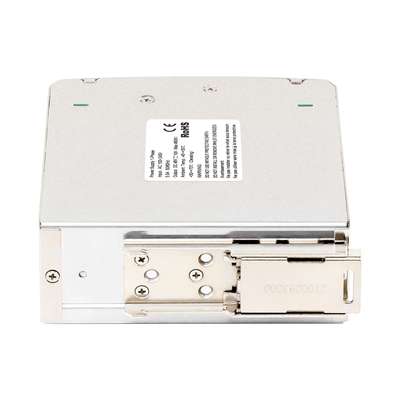

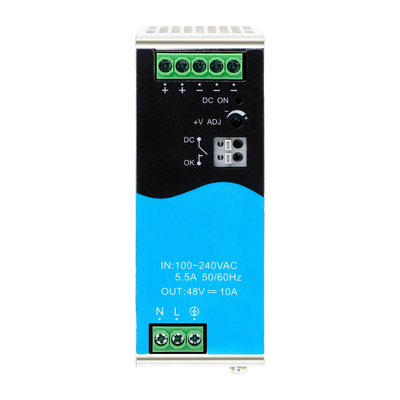

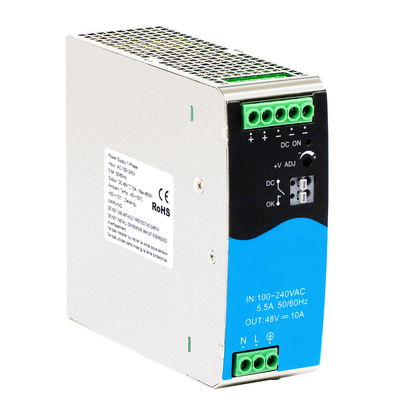

Product Photos



480W DIN Rail Power Supply 48V 10A Wide AC/DC Input With Active PFC DC OK 4

480W DIN Rail Power Supply 48V 10A Wide AC/DC Input With Active PFC DC OK 5
