Name: 120W Industrial Power Adapter 48V 2.5A Din Rail Wide AC/DC Input CE UL Listed
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IMD-DC48V2.5A
Price: 57.00 USD
Availability: InStock

120W Industrial Power Adapter 48V 2.5A Din Rail Wide AC/DC Input CE UL Listed

1pc

MOQ

negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 120W Din Rail Power Supply

Voltage Output: DC47.0-DC53.0

Efficiency: 94%

Voltage Input: AC/DC Wide Input

DC OK Function: Support

Temperature Range: 40℃ To +70℃

Highlight:

120W Industrial Power Adapter

48V Industrial Power Adapter

Din Rail Industrial Power Adapter

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: IMD-DC48V2.5A

Payment & Shipping Terms

Packaging Details: 1pc in a carton, 0.5kg/pc gross weight

Delivery Time: 4~8 working days

Payment Terms: T/T, PayPal

Supply Ability: 1500Pcs per month

Gallery

120W Industrial Power Adapter 48V 2.5A Din Rail Wide AC/DC Input CE UL Listed

Product Description

AC/DC 120W DIN-Rail Power Supply

Key Features of 48V Power Adapter

Universal 85 - 264VAC or 120 - 370 VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -40℃ to +70℃
High efficiency up to 94%, high reliability
DC OK function
Active PFC
150% peak load output for 3 seconds
DC ON output status indicator LED
Output short circuit, over-current, over-voltage, over-temperature protection
Operating altitude up to 5000m
OVCⅡ
Indoor use
Safety according to IEC/UL/BS EN 62368

Technical Data of 120W Power Supply

Output Power
Output Voltage Range	+48-53V
Load Current	2.5A
Voltage Accuracy	±1%
Line Regulation	≤±0.5%
Load Regulation	≤±1%
Temp. coefficient	±0.03%/℃
Efficiency (%)	94%(Typ.)
Output Power	120W
Input Power
Input Voltage Range	85-264VAC
Rated Input Voltage	220VAC
Input Frequency (Hz)	47~63Hz
Input Current(MAX)	＜3A
Inrush Current	<30A@220VAC
Efficiency (%)	94%(Typ.)
Environmental. Mechanical
Operating temperature	-40℃～+70℃
Storage temperature	-40℃～+85℃
Humidity	0~95% non-condensing, non-operating
Humidity	0~90% non-condensing, operating
Leakage current	≤0.5mA@220VAC
MTBF	Min300,000h
Over power protection	150% rated power, automatic recovery
Over voltage protection	≤60V, automatic recovery
Short circuit protection	Long-term, automatic recovery< 10s

Introduction

IMD-DC48V2.5A is a din rail power adapter which can power for industrial fiber switch or industrial POE fiber switch.
It converts AC220V to 48V.
The reliable industrial grade design could ensure continuous and stable operation of the automation system.

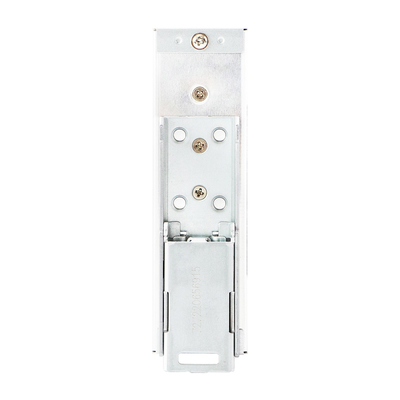

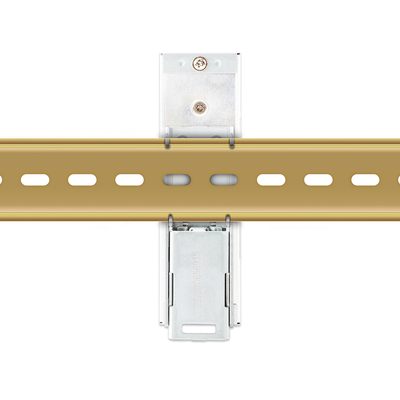

Mechanical Information

120W Industrial Power Adapter 48V 2.5A Din Rail Wide AC/DC Input CE UL Listed 0
