Industrial 240W Power Supply Din Rail DC48V Output 5A DC Adjustable CE UL Listed

1pc
MOQ
negotiable
Price
Industrial 240W Power Supply Din Rail DC48V Output 5A DC Adjustable CE UL Listed
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 240W Industrial Power Adapter
Power Input: Universal 85 - 264VAC
Voltage Output: DC48V, 5A
Efficiency: 94%
Highlight:

Olycom Industrial Power Supply

,

DC48V Power Supply

,

Din Rail Power Supply
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IMD-DC48V5A
Document: OLYCOM Industrial Networkin...25.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in a carton, 0.6KG Gross weight
Delivery Time: 4~8 working days
Payment Terms: T/T, PayPal
Supply Ability: 1000Pcs per month
Product Description

AC/DC 240W DIN-Rail Power Supply



Features of 48V Power Adapter



  • Universal 85 - 264VAC or 120 - 370VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +70℃
  • High efficiency, high reliability
  • Built-in active PFC function
  • 150% peak load output for 3 seconds
  • LED indicator for power on
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Safety according to IEC/UL/BS EN 62368, UL61010, UL508, EN61558



Specification of 240W Power Supply



Output Power
Output Voltage Range +48-53V
Load Current 5.0A
Voltage Accuracy ±1%
Line Regulation ≤±0.5%
Load Regulation ≤±1%
Temp. coefficient ±0.03%/℃
Efficiency (%) 94%(Typ.)
Output Power 240W
Input Power
Input Voltage Range 85-264VAC
Rated Input Voltage 220VAC
Input Frequency (Hz) 47~63Hz
Input Current(MAX) ＜3A
Inrush Current <30A@220VAC
Efficiency (%) 94%(Typ.)
Environmental. Mechanical
Operating temperature -40℃～+70℃
Storage temperature -40℃～+85℃
Humidity 0~95% non-condensing, non-operating
0~90% non-condensing, operating
Leakage current ≤0.5mA@220VAC
MTBF Min300,000h
Over power protection 150% rated power, automatic recovery
Over voltage protection ≤60V, automatic recovery
Short circuit protection Long-term, automatic recovery< 10s



Standards



CISPR32/EN55032/CLASS B
IEC/EN 61000-4-2 Contact ±6KV/Air ±8KV
EN61000-3-2:CLASS A and CLASS D
IEC/EN 61000-4-4 ±2KV
IEC/EN 61000-4-5 line to line ±2KV/line to ground ±4KV
IEC/EN61000-4-11 0%, 70%



Dimension



Industrial 240W Power Supply Din Rail DC48V Output 5A DC Adjustable CE UL Listed 0



Product Characteristic Curve

Industrial 240W Power Supply Din Rail DC48V Output 5A DC Adjustable CE UL Listed 1



Ordering Options



IMD-DC48V2.5A Industrial Power Adapter, AC220V to DC48V, 2.5A, 120W
IMD-DC48V5A Industrial Power Adapter, AC220V to DC48V, 5A, 240W
IMD-DC48V10A Industrial Power Adapter, AC220V to DC48V, 10A, 480W



Product Photos

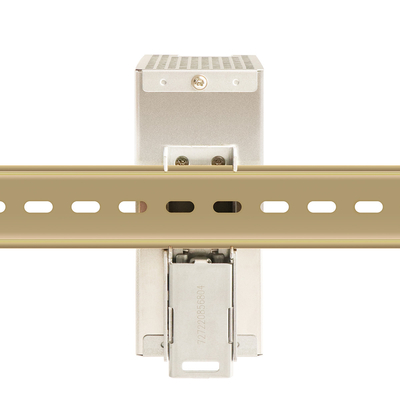

Industrial 240W Power Supply Din Rail DC48V Output 5A DC Adjustable CE UL Listed 2

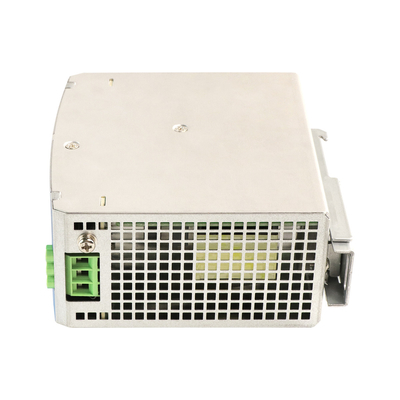

Industrial 240W Power Supply Din Rail DC48V Output 5A DC Adjustable CE UL Listed 3
