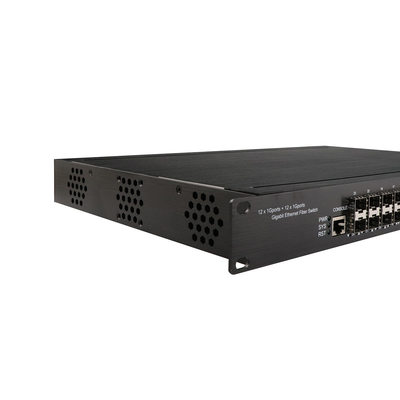

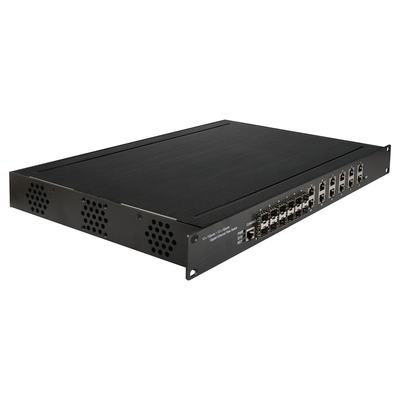

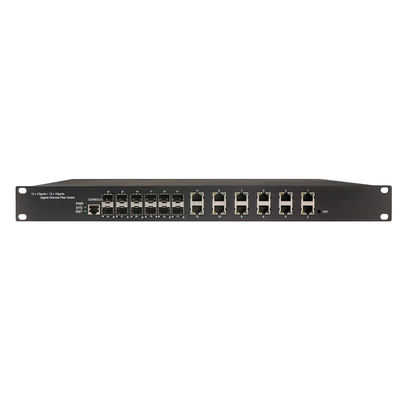

24 Port Ethernet Poe Switch Outdoor L2 Managed Switch
12 Sfp+12RJ45 1U Rack-mounted
Key Features of Outdoor managed switch
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af power on to 1 ~ 12 RJ45 ports
- 12 x 10/100/1000Mbps Auto-sensing TX RJ45 ports
- 12 x 1000Mbps SFP fiber ports
- Support cable diagnosis and can locate the fault point
Specification of 10/100/1000 POE Ethernet Switch
| Product Name |
10/100/1000Mbps managed Industrial POE Fiber Switch (12F+12TP) |
| Model No. |
IM-FP121212GW |
| Port |
12 x 1000Mpbs SFP ports
12x10/100/1000M UTP RJ45
|
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID |
4096 |
| Jumbo Frame |
9.6KB |
| MAC Address Table Size |
8K |
| Poe Standard |
IEEE802.3af, total MAX power is 340W |
| Switching features |
Transmission mode:storage and forward
System bandwidth:58Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
Input voltage:DC48V
Non-polar power input :support
|
| Environment |
Working temperature:-40°～ 75°C
Working humidity:5%～95%,non-condensing
|
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A, EN61000-6-4- Emission for industrial environment
EMS:EN61000-6-2-Immunity for industrial environment, EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2, Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32, Shock:IEC 60068-2-27
Rail Traffic:EN 50121-4
|
| Mechanical information |
Safety class:IP30
Dimension:483x 275 x 44.5mm
|
| Warranty |
3 years |
Dimension
Packing:
Application
- Public security, safe city monitoring system
- Highway security protection, charging system
- Building, campus monitoring net
- Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
- Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
- Electric power, oilfield, television program transmission system
FAQ:
1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~57V, for PoE managed switches, it receives DC48V~57V.
All the models support redundant input.
2. What is the PoE budget?
A: The standard PoE output is 30W per port.
Take IM-FP288GW for example, it has 8 PoE ports, so the budget is 30W/port*8 ports=240W.
We can also support 60W output if it is required, please confirm with us.
3. Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
4. Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.
5. If possible to write the label as I want?
A: Yes, please just send the content and format, and we will print a sample piece for your confirmation.
The label is usually attached to the side panel.
