Name: 1000mbps 4 port poe extender af/at/bt 30w/60w/90w 1 Port 802.3bt PoE++ to 4 Port 802.3af/at ethernet extender outdoor
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-WPD054GE V3
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Ethernet Extender Outdoor

PoE Ports: 1-4 Port Support PoE 30W

PD Input: Port 5, 30W/60W/90W

Surge Protection: ±6KV

Warranty: 3 Years

Highlight:

1000mbps PoE Extender

Outdoor PoE Extender

4 Port PoE Extender

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: IM-WPD054GE V3

Payment & Shipping Terms

Packaging Details: 1pc in a box

Delivery Time: 3~5 working days

Payment Terms: T/T, PayPal

Supply Ability: 3000pcs/month

Gallery

1000mbps 4 port poe extender af/at/bt 30w/60w/90w 1 Port 802.3bt PoE++ to 4 Port 802.3af/at ethernet extender outdoor

Product Description

1000mbps 4 port poe extender af/at/bt 30w/60w/90w

1 Port 802.3bt PoE++ to 4 Port 802.3af/at

ethernet extender outdoor

Introduction of POE Extender

IM-WPD054GE series is the 10/100/1000 Mbps industrial PoE/PD Ethernet switch enjoying below features

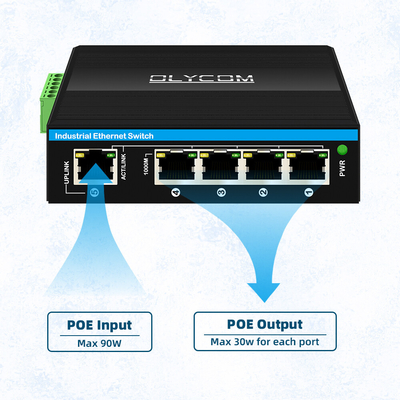

Port 5 acts as PD power receiving port(typically 30W/60W/90W)
Port 1~4 comply with IEEE802.3af/at standard
Power on PoE IP cameras through the Ethernet cable
Power range up to 100 meters

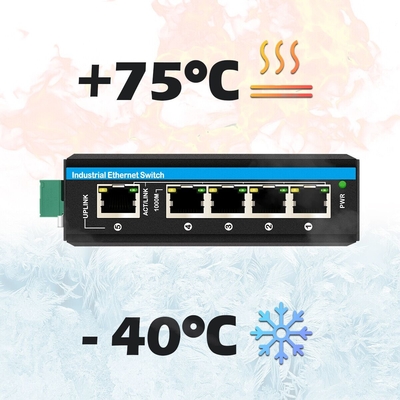

Operating temperature -40℃ to + 75℃
Meet IP40 protection degree and EMC industrial grade requirements

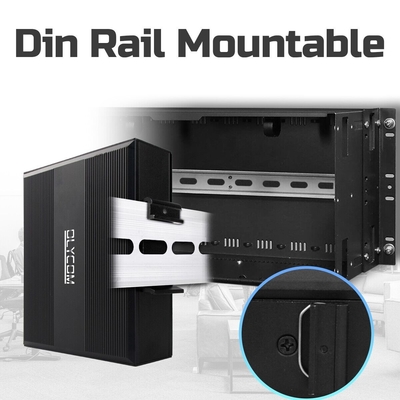

DIN rail installation
Pass through dangerous environmental certification
Comply with FCC and CE standards

The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Specificaiton of 5port Gigiabit Poe Switch

Product Name	10/100/1000Mbps Industrial PoE/PD Ethernet Switch(5TP)
Model No.	IM-WPD054GE
Port	5 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Protocol	IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3ab(1000Base-TX) IEEE 802.3af 15.4W(POE) IEEE 802.3at 30W(POE+) IEEE 802.3bt 90W(POE++)
Switching features	Transmission mode: Storage and forward Forwarding delay: <10us System bandwidth: 10Gbps(non-traffic jam) Forwarding rate: 14.88Mpps MAC: 2K Packet buffer size: 1.75Mb
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, network PWR: Power Copper orange: Speed indicator On:Working speed is 1000Mbps Off:Disconnected or working speed is 10/100Mbps Copper green: Link/Act indicator On:transmission is normal Blinking: in transmission Off:transmission is NOT normal
Power supply	Single PoE input power: 30W/60W/90W(port 5) Single PoE output power: 15.4W/30W(port 1~4) Single PoE output voltage: DC48V(port 1~4)
PoE wiring	PoE af/at: 1/2 (V+), 3/6 (V-) PoE bt: 1/2 (V+), 3/6 (V-), 4/5 (V+),7/8 (V-)
Environment	Working temperature: -40°～75°C Storage temperature: -40°～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing
Industry Standards	ESD:IEC61000-4-2,±15KV air, ±6KV contact EFT:IEC61000-4-4, General ±6KV Surge: IEC61000-4-5,Differential ±2KV, Common±6KV
Certification	CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020 EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A2:2021/AC:2022 CE-LVD: EN IEC 62368-1:2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4:2014
Mechanical information	Shell: Corrugated metal shell, Safety class: IP40 Dimension: 1149335mm, Mounting method: Din-rail/Wall mounting
Warranty	3 years

Application

1000mbps 4 port poe extender af/at/bt 30w/60w/90w 1 Port 802.3bt PoE++ to 4 Port 802.3af/at ethernet extender outdoor 0

Ordering Details

IM-WS050GE

Industrial Ethernet Switch

5*100/1000M, Unmanaged, Non-PoE, DC12V~DC52V dual input

Ideal in vehicle network or industrial automation system

IM-WP054GE

Industrial PoE Switch

5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget, DC48V~DC52V dual input

Remark: PoE bt*60W is optional

Ideal in CCTV security system

IM-WP054BGE

Industrial PoE Switch

5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget, DC12V~DC48V dual input

With internal power booster

Ideal in solar power system

IM-WPD054GE

Industrial PoE Switch

5*100/1000M, Unmanaged, 1*PD port(30W/60W/90W)+PoE af/at for port 1~4

No need to use extra power supply

Ideal in CCTV security system

FAQ:

1. Q: Does this industrial 4-port PoE extender support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.
A PoE splitter is required if you need to connect a 24VDC based PD device.

2. Q: Is it a managed industrial network switch?

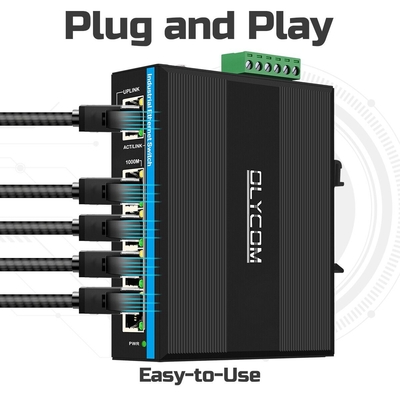

A: It is unmanaged industrial PoE switch and no need any setting, plug and play, easy to use.

3. Q: Can I use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this industrial 5port PoE switch.
The industrial 5 port PoE switch will provide data only, and don't provide power any more.

4. Q: Can it work with 10/100Mbps devices?
A: Yes, Ethernet port speed is auto-adaptive, it is seamless connection with extra settings.
