5 Port Industrial Poe Network Switch DC12/24/48V Input 1SFP+4RJ45 Gigabit Ethernet Switch

5 Port Industrial Poe Network Switch DC12/24/48V Input

1SFP+4RJ45 Gigabit Ethernet Switch

Key Features of  Voltage Booster Switch

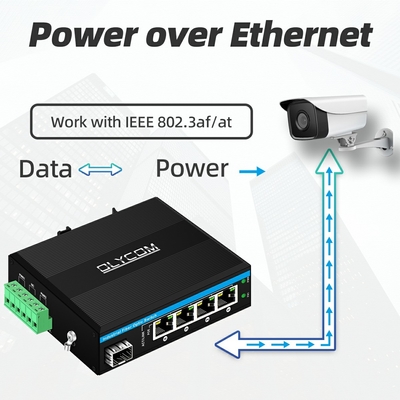

• Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
• IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
• 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
• 1 x 10/100/1000Mbps SFP port

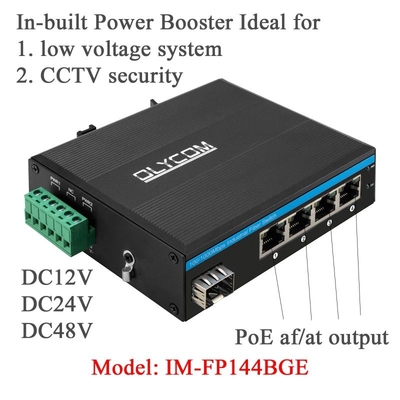

• Built-in voltage booster for DC12-48V input which can be used for solar power/Trunk/VoIP system/CCTV security system

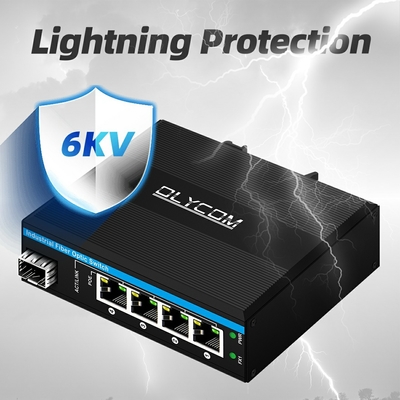

• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX lFlow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
• Max power to 15.4W under af standard, 30W under at standard to each PoE port
• Detect the PoE models of electrical equipments.
• Operating environment temperature:-40 ° ~75 ° c

Specificaiton of  5port Gigiabit Poe Switch

Application

Packing List:

FAQ:

1. Q: How does this Industrial 5 Ports Gigabit POE+ Network Switch compare to other standard POE switches?
A: This 5port PoE switch features a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.

2. Q: Does this industrial 5 ports PoE switch support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.

3. Q: Is it a managed industrial network switch?

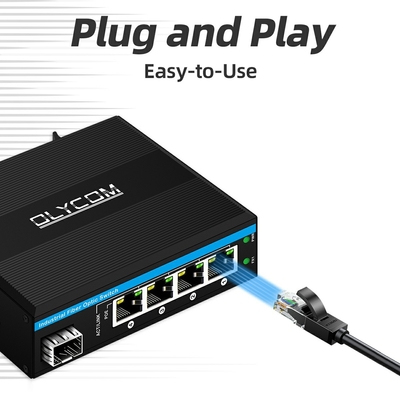

A: It is unmanaged industrial network switch and no need any setting. It is plug and play, easy to use.

4. Q: What's is the PoE Pin Assignment of this Industrial 5 Ports POE+ Network Switch?
A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).

5. Q: Can i use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this industrial 5port PoE switch. The industrial 5port PoE switch willprovide data only, and don't provide power any more.
