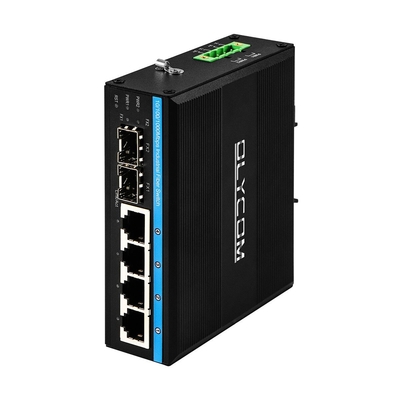

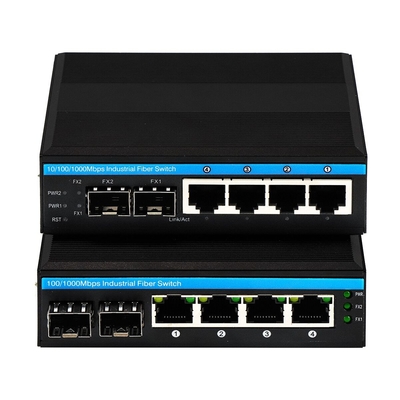

Gigabit ERPS Managed Ethernet Switch 2SFP+4RJ45 Din-rail Network Switch with PoE Output

Poe Switch Gigabit ERPS Managed Ethernet Switch

2SFP+4RJ45 Din-rail Network Switch

Key Features of  Industrial Network Switch

• Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
• IEEE 802.3af/at/bt power on to 1 ~ 4 RJ45 ports
• 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
• 2 x 1000Mbps SFP fiber port
• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard,
• half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
• A store-and-forward switching mechanism
• Operating environment temperature:-40 ° ~75 ° c

Management Interface

• Support bus/star topology, ring structure, support ITU-T G.8032/Y.1344 ERPS
• Support SNMPv1, v2, v3, Web management, support user login password protection and other device configuration methods
• Support ACL, port-based MAC filtering, MAC address binding, port-based 802.1x authentication, system automatic defense, prevent DDOS and other attacks;
• Support VLAN: support port VLAN and 802.1Q Tag
• Support QoS 4-level priority, static LACP, support port-based one-way and two-way traffic mirroring
• Support IGMP Snooping v1/v2, port bandwidth control, broadcast storm suppression
• Support SNTP protocol
• Support MIB library opening to meet the requirements of operation and maintenance
• Support SNMPv3, IEEE 802.1X, HTTPS, enhancing network security
• Support WEB, CLI, Windows utility and SNMP management methods
• Reset: Support restart and restore default configuration

Specificaiton of  6 port Gigiabit Poe Switch

Application

Packing List:

FAQ:

1.What is the power input?

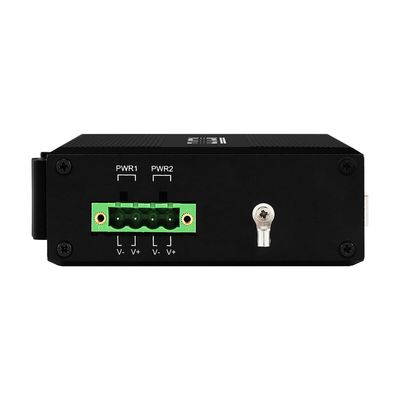

A: For non-PoE managed switches, it receives DC12V~57V, for PoE managed switches, it receives DC48V~57V.
All the models support redundant input.

2.Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.

3.Can you supply a customized PVC label with my model on it?
A: Yes, there is description, model name and logo on the front PVC mask, all is available for customization.

4.What is the packing list?
A: There is a device, protective foam, a user manual, a warranty card and a console cable in the box.
But SFP modules and power supply are NOT included, please purchase it from us separately.

5.What is the PoE output voltage?
A: Its DC48V for 802.3af/802.3at/802.3bt compliant powered devices such as PoE cameras or PoE routers.
If the PD takes 24V power, then please use a PoE splitter to connect our switch and powered device.
