Industrial gigabit 8 port ethernet switch E-Mark 8*RJ45 outdoor network switch
Key Features of 8 port ethernet switch

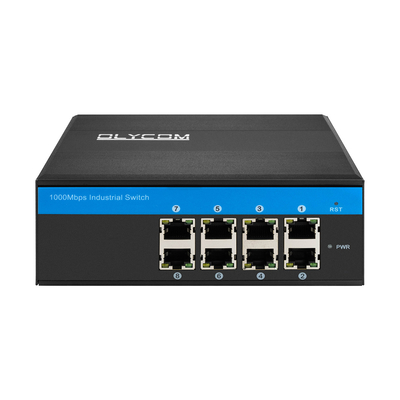

- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports

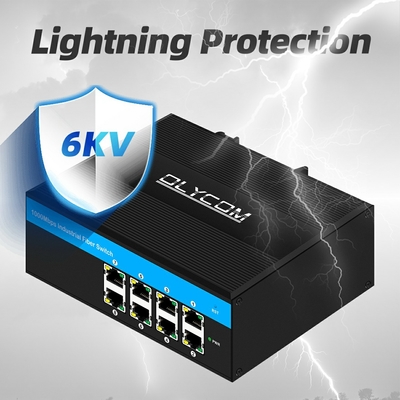

- 6 KV Ethernet surge protection, adapt to a harsh outdoor environment

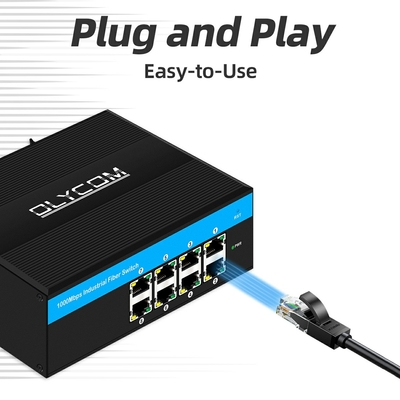

- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~75 ° c
Specification of E-Mark Ethernet Switch
| Product Name |
10/100/1000Mbps Industrial Ethernet Switch (8TP) |
| Model No. |
IM-FS080GE |
| Port |
8 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode:storage and forward
System bandwidth:40Gbps (non-traffic jam)
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, network |
| Power supply |
Power supply input voltage: 12-52V (max 52V)
|
| Environment |

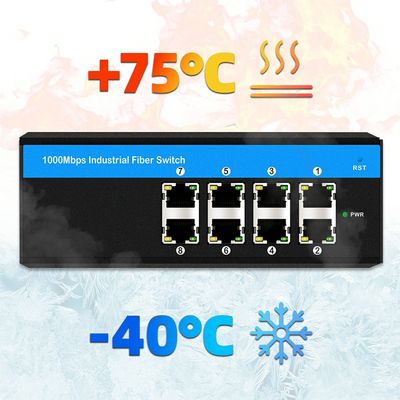

Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
|
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic:EN 50121-4
|
| Safety |
CE Mark ,commercial
CE/LVD EN60950
|
| Mechanical information |
Shell:Corrugated metal shell

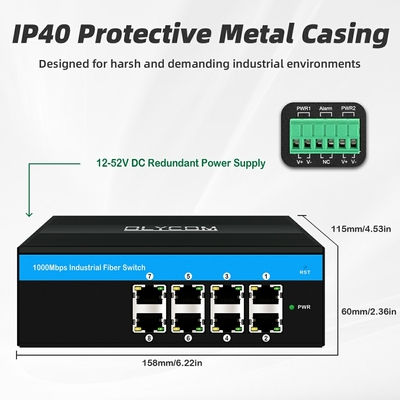

Safety class:IP40
Dimension:158 x 114.8 x 60mm

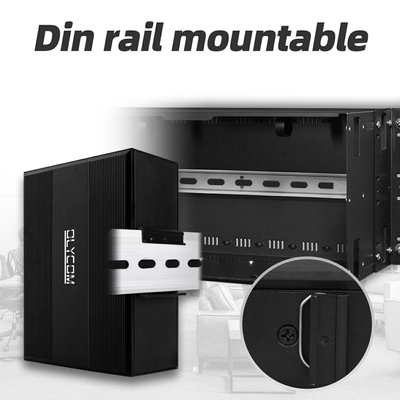

Mounting method:Din-rail mounting
|
| Warranty |
3 years |
Application
Packing List:
- Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
- The standard packing usually contains a main device, a warranty card and a user manual.
- Packing box dimension for 1pc: 23*16.5*5.8cm
- 20pcs in a packing box of 55.5*40*41cm dimension.
FAQ:
1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~52V.
All the models support redundant input.
2. How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.
3. Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
4. Can you supply a customized PVC label with my model on it?
A: Yes, there is a description, model name, and logo on the front PVC mask, all is available for customization.
5. What is the packing list?
A: There is a device, protective foam, a user manual, a warranty card and a console cable in the box.
But SFP modules and power supply are NOT included, please purchase it from us separately.
