5 Port Gigabit Poe+ Switch E-Mark Ethernet Switch DC48V Dual Power Input Din-rail Poe Switch

1 pc
MOQ
Negotiable
Price
5 Port Gigabit Poe+ Switch E-Mark Ethernet Switch DC48V Dual Power Input Din-rail Poe Switch
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 5 Port Poe Ethernet Switch
Data Rate: 10/100/1000Mbps
Surge Protection: ±6KV
PoE Output Power: 15.4W/30W
Sample: Available
Highlight:

DC48V dual power input poe switch

,

E-Mark ethernet poe switch

,

5 port gigabit poe+ switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP054GE V2
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

5 port gigabit POE+ switch E-Mark ethernet switch



5 Port Gigabit Poe+ Switch E-Mark Ethernet Switch DC48V Dual Power Input Din-rail Poe Switch 0



Key Features of 10/100/1000Mbps ethernet switch

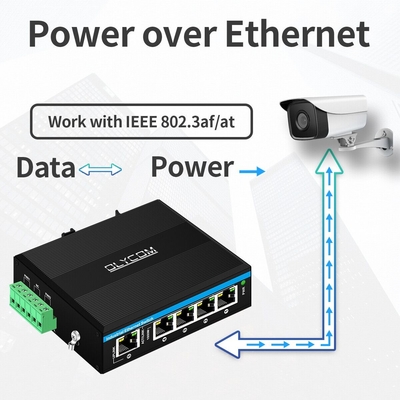

  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 1 x 10/100/1000Mbps uplink network port

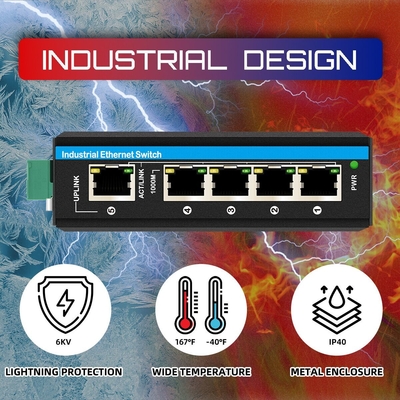

  • 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  • Max power to15.4W under af standard, 30W under at standard to each PoE port
  • Detect the PoE models of electrical equipments.
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~75 ° c



Specification of 5 port Industrial poe switch



Product Name 10/100/1000Mbps Industrial POE Network Switch (5TP)
Model No. IM-FP054GE
Port

1 x 10/100/1000Mpbs uplink network port

4 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)

DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs Power, network
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~4)

(802.3at standards required special instructions)
Environment

Working temperature:-40°～ 75°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4
Safety

CE Mark ,commercial

CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell

Safety class:IP40

Dimension: 113.8 x 93 x 34.9mm

Mounting method:Din-rail mounting
Warranty 3 years



Application



5 Port Gigabit Poe+ Switch E-Mark Ethernet Switch DC48V Dual Power Input Din-rail Poe Switch 1



Packing box of Din rail unmanaged switch



5 Port Gigabit Poe+ Switch E-Mark Ethernet Switch DC48V Dual Power Input Din-rail Poe Switch 2

  1. Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.

  2. The standard packing usually contains a main device, a warranty card and a user manual.
  3. Packing box dimension for 1pc: 23*16.5*5.8cm
  4. 40pcs in a packing box of 67*33*47cm dimension.



Ordering Details



IM-WS050GE

Industrial Ethernet Switch

5*100/1000M, Unmanaged, Non-PoE, DC12V~DC52V dual input

Ideal in vehicle network or industrial automation system
IM-WP054GE

Industrial PoE Switch

5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget, DC48V~DC52V dual input

Remark: PoE bt*60W is optional

Ideal in CCTV security system
IM-WP054BGE

Industrial PoE Switch

5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget, DC12V~DC48V dual input

With internal power booster

Ideal in solar power system

IM-WPD054GE



Industrial PoE Switch

5*100/1000M, Unmanaged, 1*PD port(30W/60W/90W)+PoE af/at for port 1~4

No need to use extra power supply

Ideal in CCTV security system
