16 Port Gigabit Poe Switch Support Af/at/bt Din-rail Ethernet Switch For CCTV System

16 Port gigabit poe switch support af/at/bt

din-rail ethernet switch for CCTV system

Key Features of Industrial poe fiber switch

• Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
• IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
• 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
• 8 x 1000Mbps SFP fiber port

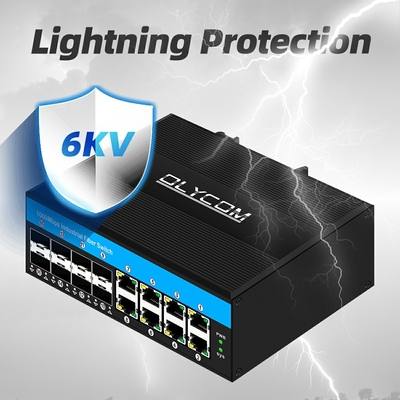

• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
• A store-and-forward switching mechanism

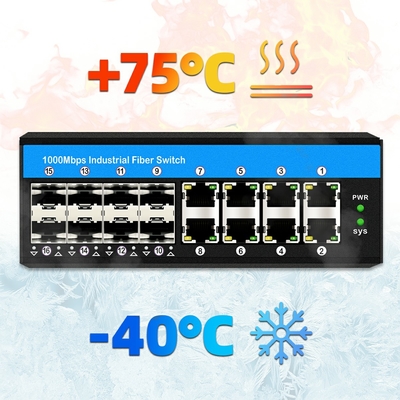

• Operating environment temperature:-40 ° ~75 ° c

Specification of Industrial Full Gigabit Switch

Application

FAQ:

1. What is the input voltage?
A: For PoE switches, it is DC48V~52V.
For non-PoE switches, it is DC12V~52V.

2. What is the power budget?
A: Each PoE port supports 15.4W/30W/60W output.
The default output is 30W(please let us know if you need 60W type)
The total budget: output watts of each port times PoE ports

3. Is it managed?
A: No, this series is unmanaged.
We have another managed series for your choice.

4. What installation method does it support?

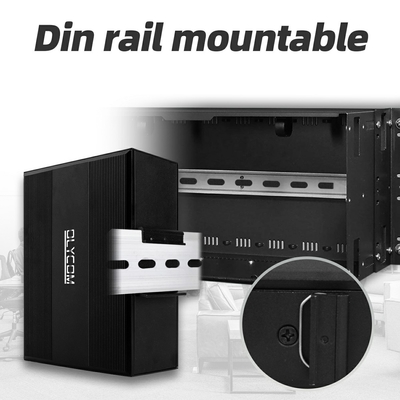

A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it before.

5. Does the fiber port support 100M speed?
A: Yes, for 100M models, it just supports 100M modules.
For Gigabit models, the fiber port is 100M/1000M auto-adaptive, you can insert 155Mb/s or 1.25Gb/s modules, both will work.
