OM-FBS-44-SLC Optical Bypass Unit Singlemode LC Connector 12V 24V 48V Din Mounted

4-Channel Optical Fiber Bypass Module

Introduction to OLP OBP Optical Bypass Switch

Olycom optical switch module supports 100G/40G/10G/1G and 100M fiber connections and offers SC/LC single mode&multi mode options.

It can also be customized to meet the optical path needs of complex test systems and improve product test efficiency.

It is an indispensable core product for the monitoring and protection of optical communication system, which can be connected to high-density optical communication systems.

• Low Insertion Loss
• High stability
• High reliability
• Wide Wavelength Range
• Low Channel Crosstalk
• Operating environment temperature: -20℃ ~70℃

Specification of Power off protector

Application of Bypass fiber switch

• Metropolitan Area Network (MAN)
• Laboratory Research and Development
• System Monitoring
• Dynamic configuration of add/drop multiplexing

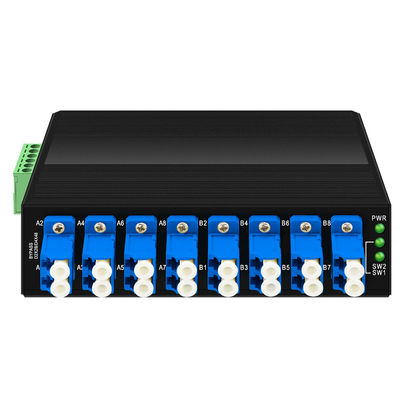

LED Status

PWR: This is the power indicator of the device

SW1: Bypass operation status indicator 1

SW2: Bypass operating status indicator 2

Dimension

Installation

• Place the equipment on a large enough and stable desktop or on a firm rail track
• Connect the power adapter to the power interface and connect the power socket through the power cord
• Connect the equipment to the corresponding port through the optical fiber
• Do not place heavy objects on the equipment and ensure that the equipment has a good ventilation and heat dissipation environment.
• Please disconnect the power before plugging or unplugging the power adapter.
• Connect the power cord, plug it in, and turn on the power supply. After booting, the LED indicator will show the following conditions:

• The PWR indicator will be on;
• When the equipment has a set of light switches: SW1 or SW2 indicator light will be lit;
• When the device has two sets of light switches: SW1 and SW2 are lit at the same time.

​
