Mini 6 port gigiabit ethernet switch poe switch din rail
2 sfp+ 4 RJ45 DC48-52V dual power input

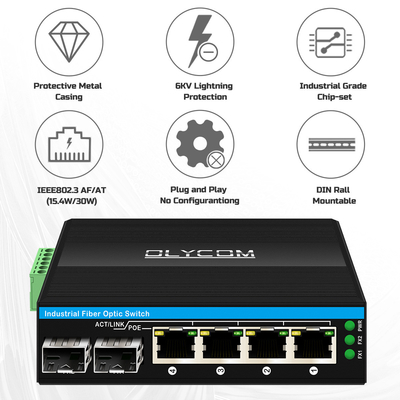

Key Features of Gigabit POE Switch
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- POE output power 15.4W/30W/60W for 1 ~ 4 RJ45 ports
- 4 x 10/100/1000Mbps Auto-sensing RJ45 ports, 2 x 1000Mbps SFP fiber port
-

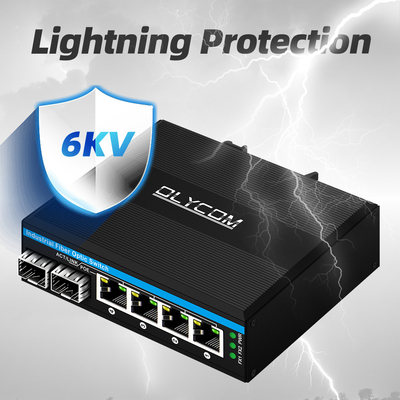

6 KV Ethernet surge protection, adapt to a harsh outdoor environment
-
Support Auto MDI/MDIX
-
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant A store-and-forward switching mechanism

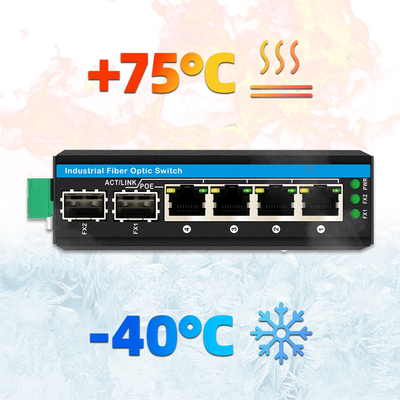

- Operating environment temperature: -40 ° ~75 ° c
Specification of Industrial Full Gigabit Switch
| Product Name |
10/100/1000Mbps Industrial POE Fiber Switch (2F+4TP) |
| Model No. |
IM-FP244GE |
| Port |
2x 100/1000Mpbs SFP ports
SM:1310nm/1550nm,20Km
1490nm/1550nm,40~120Km
MM:1310nm,2Km
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Switching features |
Transmission mode:storage and forward
System bandwidth:40Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W (port 1~4)
(802.3at standards required special instructions)
|
| Environment |
Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
|
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic:EN 50121-4
|
| Safety |
CE Mark ,commercial
CE/LVD EN60950
|
| Mechanical information |
Shell:Corrugated metal shell
Safety class:IP40
Dimension: 113.8 x 93 x 34.9mm
Mounting method:Din-rail mounting
|
| Warranty |
3 years |
Application of 6 port din rail switch

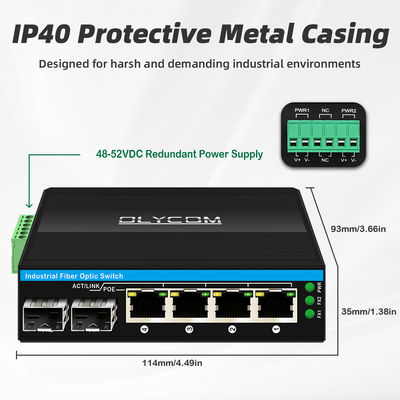

Dimension of unmanaged gigabit switch
Packing box of Din rail unmanaged switch
-
Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
- The standard packing usually contains a main device, a warranty card and a user manual.
- Packing box dimension for 1pc: 23*16.5*5.8cm
- 40pcs in a packing box of 67*33*47cm dimension.
FAQ:
1. What is the input voltage?
A: For PoE switches, it is DC48V~52V.
For non-PoE switches, it is DC12V~52V.
2. What is the power budget?
A: Each PoE port supports 15.4W/30W/60W output.
The default output is 30W(please let us know if you need 60W type)
The total budget: output watts of each port times PoE ports
3. Is it managed?
A: No, this series is unmanaged.
We have another managed series for your choice.
4. What installation method does it support?
A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it before.
5. Does the fiber port support 100M speed?
A: Yes, for 100M models, it just supports 100M modules.
For Gigabit models, the fiber port is 100M/1000M auto-adaptive, you can insert 155Mb/s or 1.25Gb/s modules, both will work.
