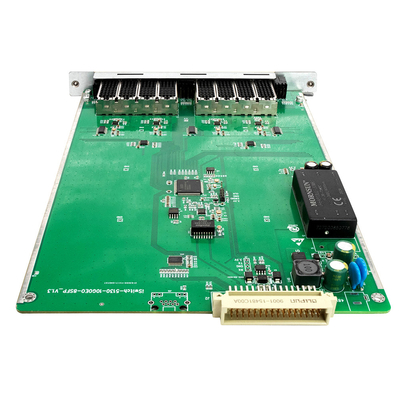

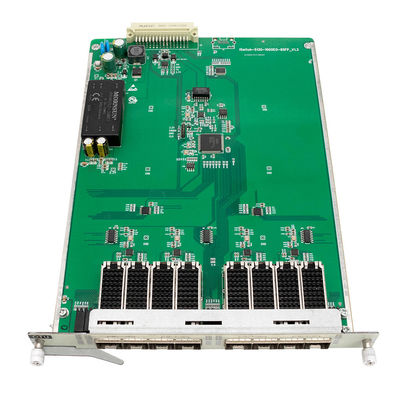

10G SFP+ to SFP+ DWDM OEO Transponder
Specification
| Function | Note | |
| Card type | 10G OTU-3R | 10G OTU-2R |
| interface |
Client-side interface: 4 SFP+ hot-pluggable, compatible with SFP WDM-side interface: 4 SFP+ hot-pluggable, compatible with SFP |
|
| Line mode | Supports transparent transmission of any type of service in four 42M~11.3G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals. | |
| Relay mode | Support 42M~11.3G wavelength electrical relay | |
| Support service type |
GE, 10GE 1/2/4/8/10G FC STM-16/64 CPRI-2/3/6/7 |
FE, GE, 10GE 1/2/4/8/10G FC STM-1/4/16/64, OTU1/OTU2/OTU2e CPRI-1~8, 42M~11.3G Any |
| WDM technology |
Support CWDM: 18 waves Support DWDM: C band 100GHz 40/48 waves,50GHZ 80/96 waves |
|
| Occupied slot number | Support OM3800 series chassis, occupy 1 slot, (0.5RU) | |
| Network management function | Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc. | |
| Power consumption | 16W (max, including Module) | |
| MTBF | ＞100000 hours | |
