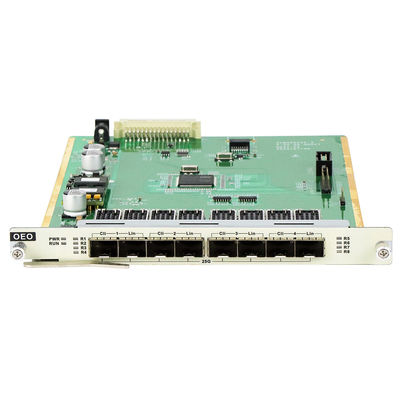

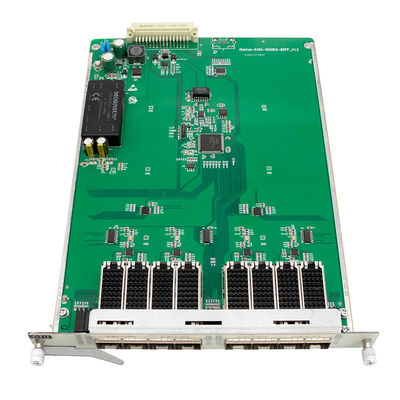

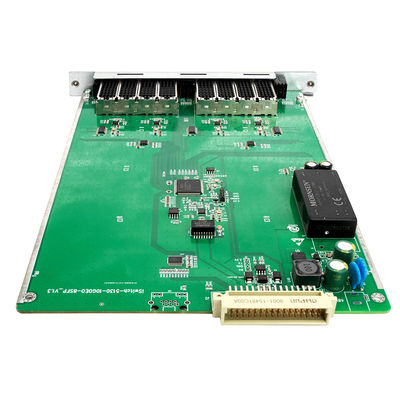

10G SFP+ to SFP+ DWDM OEO Transponder
Specification
| Function |
Note |
| Card type |
10G OTU-3R |
10G OTU-2R |
| interface |
Client-side interface: 4 SFP+ hot-pluggable, compatible with SFP
WDM-side interface: 4 SFP+ hot-pluggable, compatible with SFP
|
| Line mode |
Supports transparent transmission of any type of service in four 42M~11.3G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals. |
| Relay mode |
Support 42M~11.3G wavelength electrical relay |
| Support service type |
GE, 10GE
1/2/4/8/10G FC
STM-16/64
CPRI-2/3/6/7
|
FE, GE, 10GE
1/2/4/8/10G FC
STM-1/4/16/64, OTU1/OTU2/OTU2e
CPRI-1~8, 42M~11.3G Any
|
| WDM technology |
Support CWDM: 18 waves
Support DWDM: C band 100GHz 40/48 waves,50GHZ 80/96 waves
|
| Occupied slot number |
Support OM3800 series chassis, occupy 1 slot, (0.5RU) |
| Network management function |
Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc. |
| Power consumption |
16W (max, including Module) |
| MTBF |
＞100000 hours |
Introduction
- The 10G incoherent OEO service card supports four types of service access with 42M~11.3G rates.
- Its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the rate of 1.25 Gbit/s~11.3 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process.
- It’s applicable to the wavelength division transmission solution for any access of services with the rate of 11.3G or below.
Application
QC Framework (Optical Transmission Equipment)
1. Standards
Comply with ISO9001, CE, FCC, RoHS, IEC 61753, ITU-T G.694.1; meet industrial field networking and long-distance transmission specifications.
2. Process
Incoming inspection of optical fibers, connectors, transmission chips and lightning protection modules;
Production assembly and optical path coupling inspection;
Optical transmission index test, relay transmission verification, surge & ESD protection test;
Wide temperature cycle test, anti-interference test, long-time uninterrupted operation test;
Aging screening and full performance regression test before delivery.
3. Tests
Optical loss, dispersion tolerance, transmission distance, relay capability, ESD/lightning protection, -40~75℃ temperature adaptability.
4. Tools
Optical time-domain reflectometer (OTDR), fiber loss tester, ESD simulator, environmental test chamber.
5. System
Full optical path test records, serial number traceability, component and supplier quality archive.
6. Improvement
Transmission stability analysis, on-site fault simulation, lightning protection and anti-interference optimization.
